Camshaft Phaser and Sprocket: Removal

LH camshaft phaser and sprocket

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING . Click here to view a video version of this procedure.
2. Remove the LH Variable Camshaft Timing (VCT) oil control solenoid. For additional information, refer to ELECTRONIC ENGINE CONTROLS - 3.0L (4V) .
3. Remove the LH Camshaft Position (CMP) sensor. For additional information, refer to ELECTRONIC ENGINE CONTROLS - 3.0L (4V) .
4. Remove the 4 screws and position the RH fender splash shield aside.
   Fig 1: Locating Fender Splash Shield Mounting Screws

   Courtesy of FORD MOTOR CO.
5. Remove the 6 pin-type retainers and the RH splash shield.
   Fig 2: Locating Pin-Type Retainers And RH Splash Shield

   Courtesy of FORD MOTOR CO.
NOTE: The camshafts must be in the neutral position before removing the bearing caps or damage to the engine may occur.
NOTE: The engine front cover is removed for clarity.
Fig 3: Locating LH Camshafts Are In Neutral Position
Courtesy of FORD MOTOR CO.
6. Rotate the crankshaft until the LH camshafts are in the neutral position as shown in illustration.
NOTE: The Timing Chain Locking Tool must be installed square to the timing chain and the engine block or damage may result.
NOTE: The Timing Chain Locking Tool will lock the timing chain in place.
NOTE: The engine front cover is removed for clarity.
Fig 4: Installing Timing Chain Locking Tool In LH Timing Chain
Courtesy of FORD MOTOR CO.
7. Install the Timing Chain Locking Tool in the LH timing chain as shown in illustration.
NOTE: Do not remove the Timing Chain Locking Tool at any time during assembly. If the Timing Chain Locking Tool is removed or out of placement, the engine front cover must be removed and the engine must be retimed. For additional information, refer to TIMING DRIVE COMPONENTS .
NOTE: The timing chain must be installed in its original position onto the camshaft phaser and sprocket and exhaust camshaft using the marks, or damage to valves and pistons will result.
Fig 5: Locating Mark On Timing Chain Links And LH Camshaft Phaser And Sprocket And Exhaust Camshaft Gear
Courtesy of FORD MOTOR CO.
8. Mark the timing chain links and LH camshaft phaser and sprocket and exhaust camshaft gear as shown in illustration for installation.
9. Loosen the intake camshaft bolts evenly in the sequence shown in illustration.

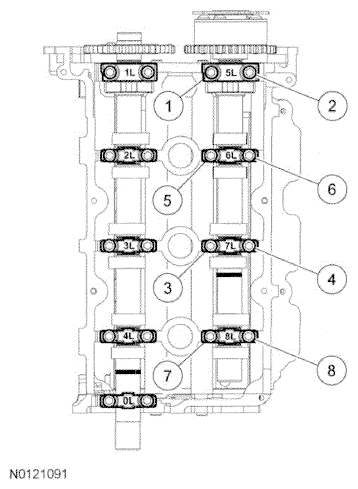

   Fig 6: Identifying Intake Camshaft Bolts Loosening Sequence

   Courtesy of FORD MOTOR CO.
10. Remove the 2 bolts and the intake camshaft bearing thrust cap.
    Fig 7: Locating Bolts And Intake Camshaft Bearing Thrust Cap

    Courtesy of FORD MOTOR CO.
NOTE: Do not allow the camshaft to rotate from the neutral position while removing the camshaft phaser and sprocket or damage to the engine may occur.
NOTE: Only use hand tools to remove the camshaft phaser and sprocket bolts or damage may occur to the camshaft or camshaft phaser and sprocket.
NOTE: Install a 3/8-in ratchet and extension into the D-slot on the rear of the LH intake camshaft to hold the camshaft in place for removal of the camshaft phaser and sprocket bolts.
11. Loosen the 3 bolts for the LH camshaft phaser and sprocket.
    • Tighten to 18 Nm (159 lb-in).
      Fig 8: Locating Camshaft Phaser And Sprocket Bolts

      Courtesy of FORD MOTOR CO.
NOTE: Damage to the camshaft phaser and sprocket assembly will occur if mishandled or used as a lifting or leveraging device.
NOTE: The camshaft will move and needs to be positioned towards the rear of the engine.
12. Using your hands, press the LH camshaft phaser and sprocket bolts towards the rear of the engine while using a rocking motion to release the LH camshaft phaser and sprocket from the camshaft.
    • Once the LH camshaft phaser and sprocket has separated from the camshaft, remove the timing chain from the LH camshaft phaser and sprocket and remove.

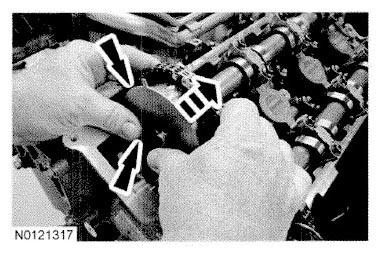

      Fig 9: Pressing LH Camshaft Phaser And Sprocket Bolts Towards Rear Of Engine

      Courtesy of FORD MOTOR CO.

    RH camshaft phaser and sprocket

13. Remove the RH VCT oil control solenoid. For additional information, refer to ELECTRONIC ENGINE CONTROLS - 3.0L (4V) .
14. Remove the RH CMP sensor. For additional information, refer to ELECTRONIC ENGINE CONTROLS - 3.0L (4V) .
15. Remove the 4 screws and position the RH fender splash shield aside.
    Fig 10: Locating Fender Splash Shield Mounting Screws

    Courtesy of FORD MOTOR CO.
16. Remove the 6 pin-type retainers and the RH splash shield.
    Fig 11: Locating Pin-Type Retainers And RH Splash Shield

    Courtesy of FORD MOTOR CO.
NOTE: The camshafts must be in the neutral position before removing the bearing caps or damage to the engine may occur.
NOTE: The engine front cover is removed for clarity.
Fig 12: Locating Timing Mark On RH Camshafts
Courtesy of FORD MOTOR CO.
17. Rotate the crankshaft until the RH camshafts are in the neutral position as shown in illustration.
NOTE: The Timing Chain Locking Tool must be installed square to the timing chain and the engine block or damage may result.
NOTE: The Timing Chain Locking Tool will lock the timing chain in place.
NOTE: The engine front cover is removed for clarity.
Fig 13: Locating Timing Chain Locking Tool In RH Timing Chain
Courtesy of FORD MOTOR CO.
18. Install the Timing Chain Locking Tool in the RH timing chain as shown in illustration.
NOTE: Do not remove the Timing Chain Locking Tool at any time. If the Timing Chain Locking Tool is removed or out of placement, the engine front cover must be removed and the engine must be retimed. For additional information, refer to TIMING DRIVE COMPONENTS .
NOTE: The timing chain must be installed in its original position onto the camshaft phaser and sprocket and exhaust camshaft gear using the marks, or damage to valves and pistons will result.
Fig 14: Locating Timing Chain Links And RH Camshaft Phaser And Sprocket And Exhaust Camshaft Gear
Courtesy of FORD MOTOR CO.
19. Mark the timing chain links and RH camshaft phaser and sprocket and exhaust camshaft gear as shown in illustration for installation.
20. Loosen the intake camshaft bolts evenly in the sequence shown in illustration.

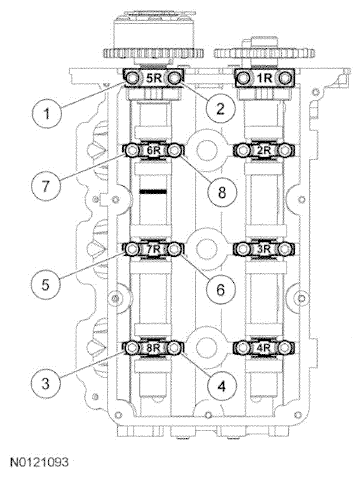

    Fig 15: Identifying Intake Camshaft Bolts Loosening Sequence

    Courtesy of FORD MOTOR CO.
21. Remove the 2 bolts and the intake camshaft bearing thrust cap.
    Fig 16: Locating Bolts And Intake Camshaft Bearing Thrust Cap

    Courtesy of FORD MOTOR CO.
NOTE: Do not allow the camshaft to rotate from the neutral position while removing the camshaft phaser and sprocket or damage to the engine may occur.
NOTE: Only use hand tools to remove the camshaft phaser and sprocket bolt or damage may occur to the camshaft or camshaft phaser and sprocket.
NOTE: Install a 3/8-in ratchet and extension into the D-slot on the rear of the RH intake camshaft to hold the camshaft in place for removal of the camshaft phaser and sprocket bolts.
NOTE: The engine front cover is removed for clarity.
22. Loosen the 3 bolts for the RH camshaft phaser and sprocket.
    • Tighten to 18 Nm (159 lb-in).
      Fig 17: Locating Camshaft Phaser And Sprocket Bolts

      Courtesy of FORD MOTOR CO.
NOTE: Damage to the camshaft phaser and sprocket assembly will occur if mishandled or used as a lifting or leveraging device.
NOTE: The camshaft will move and needs to be positioned towards the rear of the engine.
23. Using your hands, press the RH camshaft phaser and sprocket bolts towards the rear of the engine while using a rocking motion to release the RH camshaft phaser and sprocket from the camshaft.
    • Once the RH camshaft phaser and sprocket has separated from the camshaft, remove the timing chain from the RH camshaft phaser and sprocket and remove.

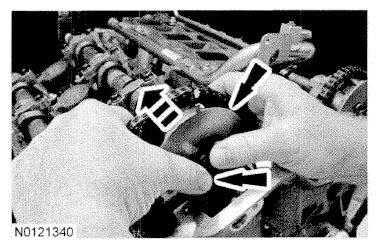

      Fig 18: Removing Timing Chain From RH Camshaft Phaser And Sprocket

      Courtesy of FORD MOTOR CO.
