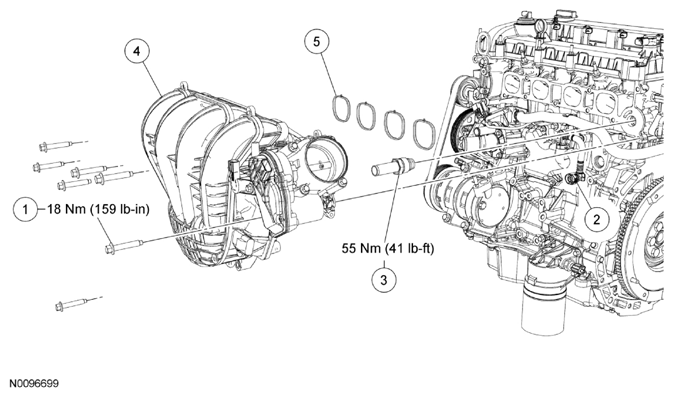

Intake Manifold (View 2 of 2): Notes
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W500311 |
Intake manifold bolt (7 required) |
| 2 |
6A785 |
Crankcase vent oil separator tube (part of 6A785) |
| 3 |
9E470 |
EGR tube |
| 4 |
9424 |
Intake manifold |
| 5 |
9461 |
Intake manifold gasket |
