In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Special bolts are used for installation. Do not use standard bolts.

Install the flexplate and tighten the bolts in the sequence shown in illustration in 3 stages.
- Stage 1: Tighten to 50 Nm (37 lb-ft).
- Stage 2: Tighten to 80 Nm (59 lb-ft).
- Stage 3: Tighten to 112 Nm (83 lb-ft).

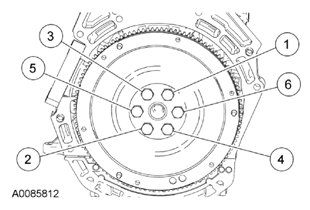

  Fig 1: Identifying Flexplate Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
Install the automatic transaxle. For additional information, refer to the appropriate automatic transmission article.
After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
