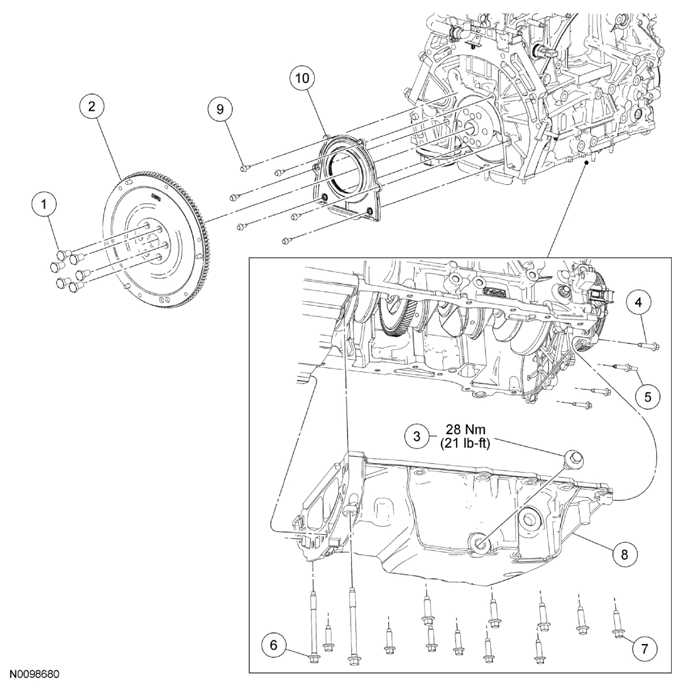

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6379 | Flexplate or flywheel bolt (6 required) |
| 2 | 6K375/6K390 | Flexplate or flywheel |
| 3 | 6730 | Oil pan drain plug |
| 4 | W500215 | Engine front cover bolt (4 required) |
| 5 | 940604 | Engine front cover stud bolt |
| 6 | W706284 | Oil pan bolt (2 required) |
| 7 | W500224 | Oil pan bolt (11 required) |
| 8 | 6675 | Oil pan |
| 9 | W500212 | Crankshaft rear oil seal with retainer plate bolt (6 required) |
| 10 | 6K318 | Crankshaft rear oil seal with retainer plate |
- For additional information, refer to the appropriate procedures in this information.
