Engine Mount: Notes
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Engine Support Bar 303-F072 |

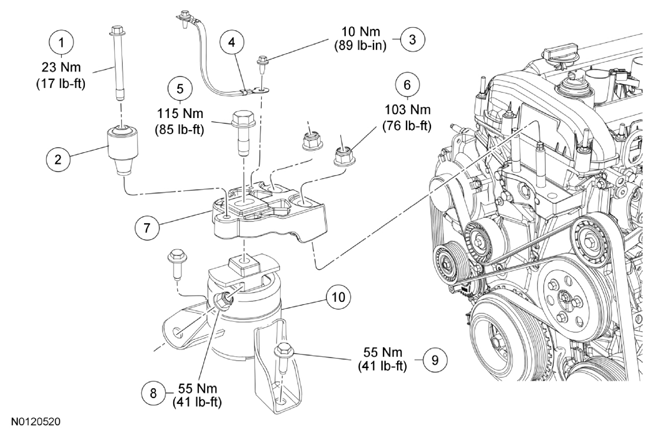

| Item | Part Number | Description |
|---|---|---|
| 1 | W711879 | Engine mount damper bolt |
| 2 | 7458 | Engine mount damper |
| 3 | W705936 | Ground wire bolt |
| 4 | 19A095 | Ground wire |
| 5 | W711684 | Engine mount bracket bolt |
| 6 | W520214 | Engine mount bracket nut (2 required) |
| 7 | 6061 | Engine mount bracket |
| 8 | W711578 | Engine mount nut |
| 9 | W706496 | Engine mount bolt (2 required) |
| 10 | 6038 | Engine mount |
