Oil Pump
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

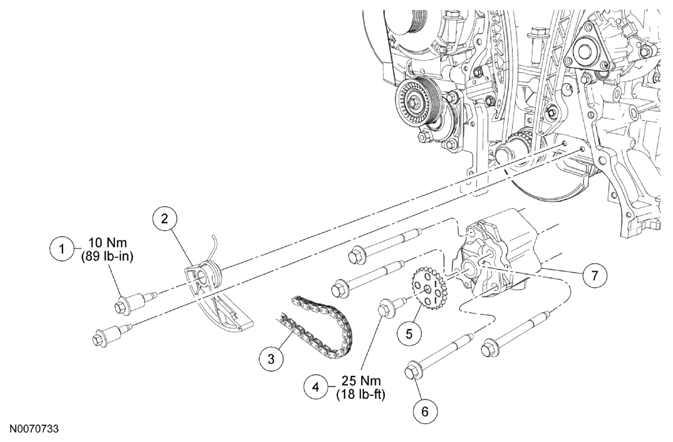

| Item | Part Number | Description |
|---|---|---|
| 1 | W703651 | Oil pump drive chain tensioner shoulder bolt |
| 2 | 6C271 | Oil pump drive chain tensioner |
| 3 | 6A895 | Oil pump drive chain |
| 4 | W704397 | Oil pump sprocket bolt |
| 5 | 6652 | Oil pump sprocket |
| 6 | W703647 | Oil pump bolt (4 required) |
| 7 | 6600 | Oil pump |
- For additional information, refer to the appropriate procedures in this information.
