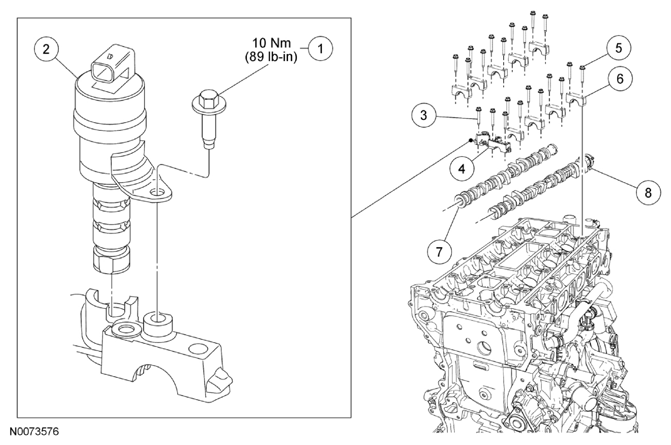

Cylinder Head: Camshafts
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W500211 | Variable Camshaft Timing (VCT) oil control solenoid bolt |
| 2 | 6M280 | VCT oil control solenoid |
| 3 | W500301 | Intake camshaft bearing cap bolt |
| 4 | 6A258 | Intake camshaft bearing cap |
| 5 | W703383 | Camshaft bearing cap bolt (20 required) |
| 6 | 6A284 | Camshaft bearing cap (9 required) |
| 7 | 6A272 | Exhaust camshaft |
| 8 | 6A267 | Intake camshaft |
