Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Remove the through bolt from the Camshaft Front Oil Seal Installer.

NOTE: Lubricate the oil seal with clean engine oil.

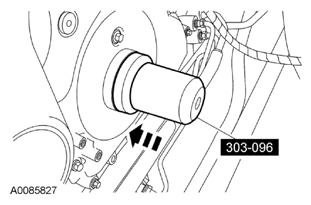

Fig 1: Installing Crankshaft Front Oil Seal Using Camshaft Front Oil Seal Installer (303-096)

Courtesy of FORD MOTOR CO.

Using the Camshaft Front Oil Seal Installer, install the crankshaft front oil seal.
Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
