Cylinder Head: Notes
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Compressor, Valve Spring 303-300 (T87C-6565-A) |
|
| Compressor, Valve Spring 303-350 (T89P-6565-A) |
|
| Compressor, Valve Spring 303-472 (T94P-6565-AH) |
|
| Installer, Valve Stem Oil Seal 303-470 (T94P-6510-CH) |
|
| Remover, Valve Stem Oil Seal 303-468 (T94P-6510-AH) |
|
| Slide Hammer 307-005 (T59L-100-B) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |
| Multi-Purpose Grease Motorcraft® XL-5 (aerosol) and/or CRC® SL3151 |
ESB-M1C93-B |

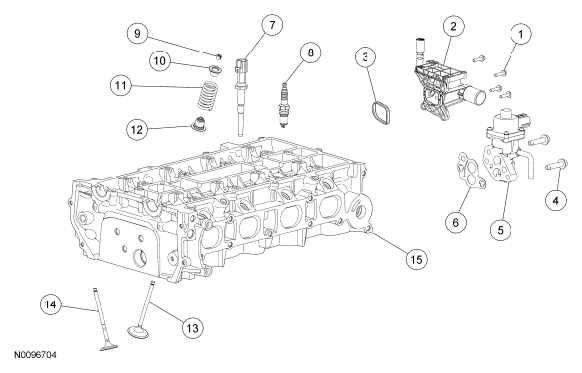

| Item | Part Number | Description |
|---|---|---|
| 1 | W500015 | Coolant outlet bolt (4 required) |
| 2 | 8K556 | Coolant outlet |
| 3 | - | Coolant outlet gasket (part of 8K556) |
| 4 | W500225 | EGR valve bolt (2 required) |
| 5 | 9D475 | EGR valve |
| 6 | 9D476 | EGR valve gasket |
| 7 | 6G004 | Cylinder Head Temperature (CHT) sensor |
| 8 | 12405 | Spark plug (4 required) |
| 9 | 6518 | Valve collet (16 required) |
| 10 | 6514 | Valve spring retainer (16 required) |
| 11 | 6513 | Valve spring (16 required) |
| 12 | 6517 | Valve seal (16 required) |
| 13 | 6505 | Intake valve (8 required) |
| 14 | 6507 | Exhaust valve (8 required) |
| 15 | 6049 | Cylinder head |
