Power Windows: MKZ

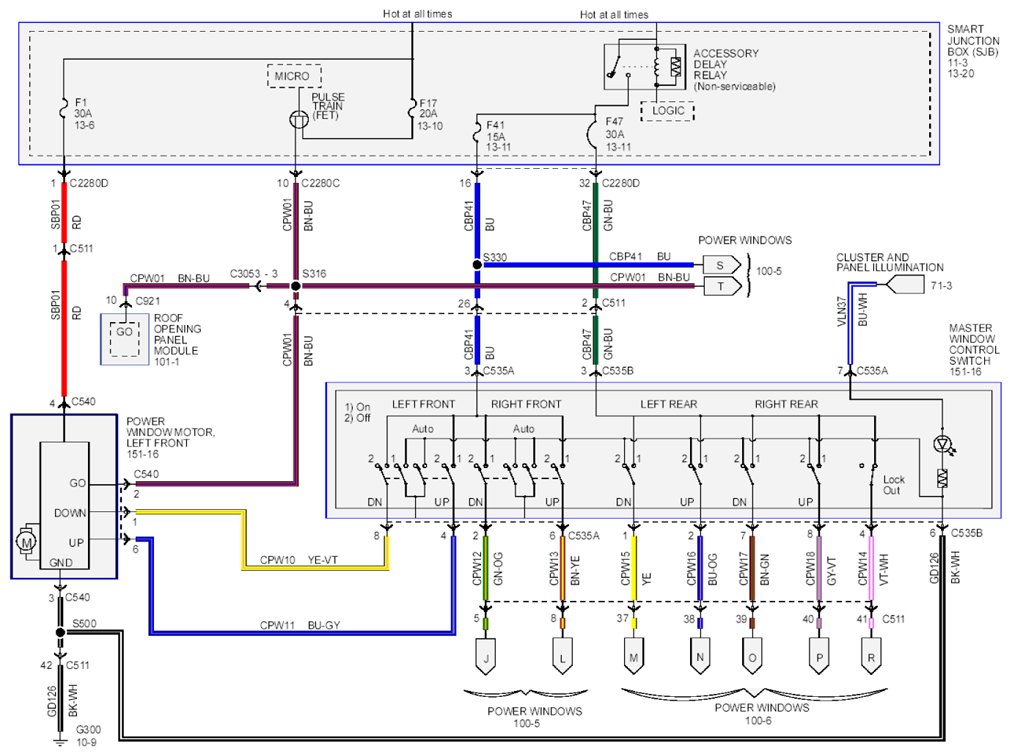

Fig 1: Power Windows Wiring Diagram - MKZ (1 Of 3)
G07935785Courtesy of FORD MOTOR CO.

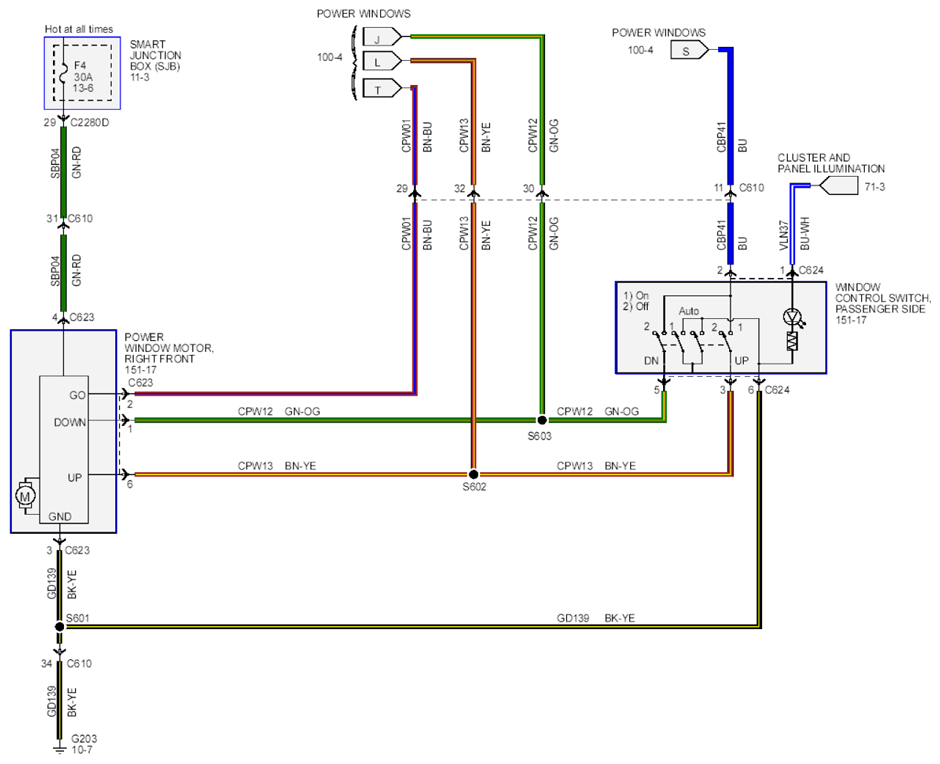

Fig 2: Power Windows Wiring Diagram - MKZ (2 Of 3)
G07935786Courtesy of FORD MOTOR CO.

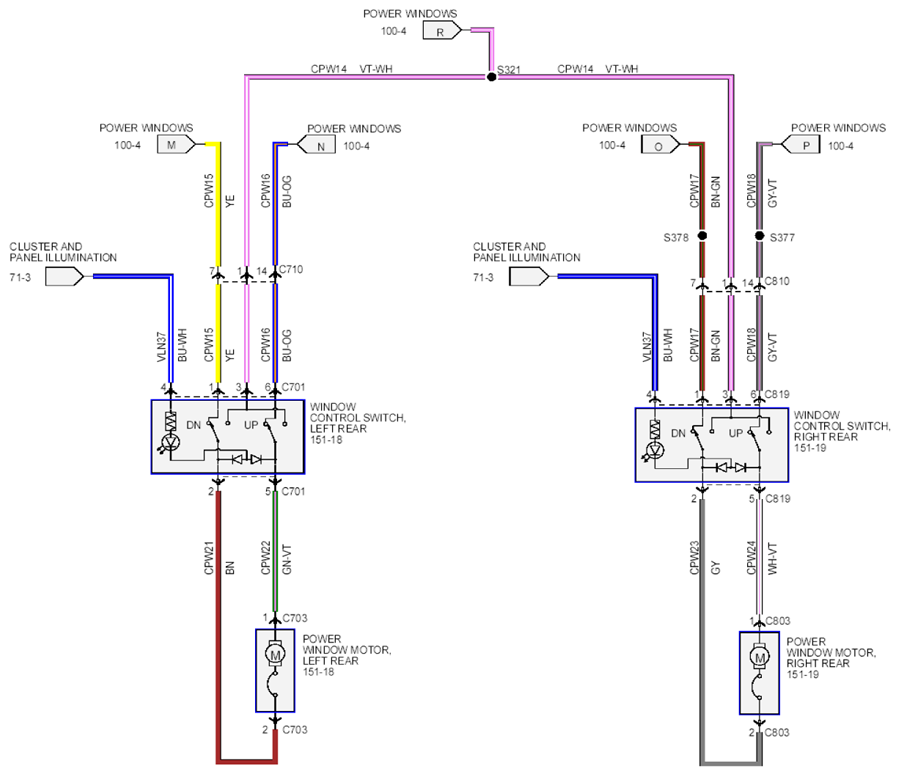

Fig 3: Power Windows Wiring Diagram - MKZ (3 Of 3)
G07935787Courtesy of FORD MOTOR CO.
