Power Windows: Fusion

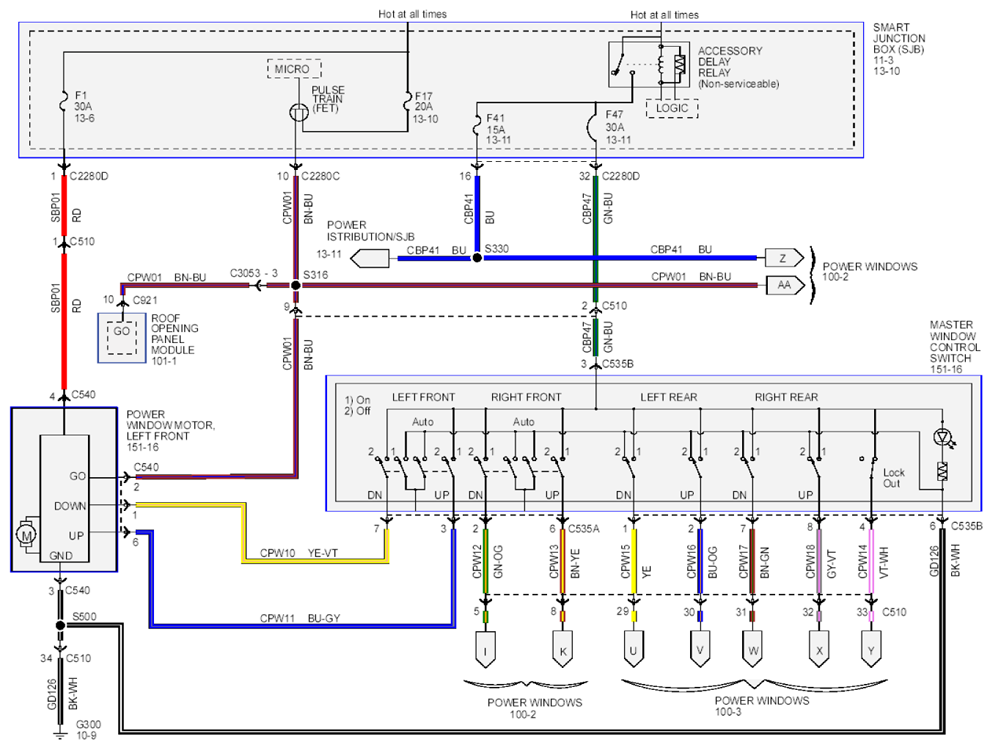

Fig 1: Power Windows Wiring Diagram - Fusion (1 Of 3)
G07935782Courtesy of FORD MOTOR CO.

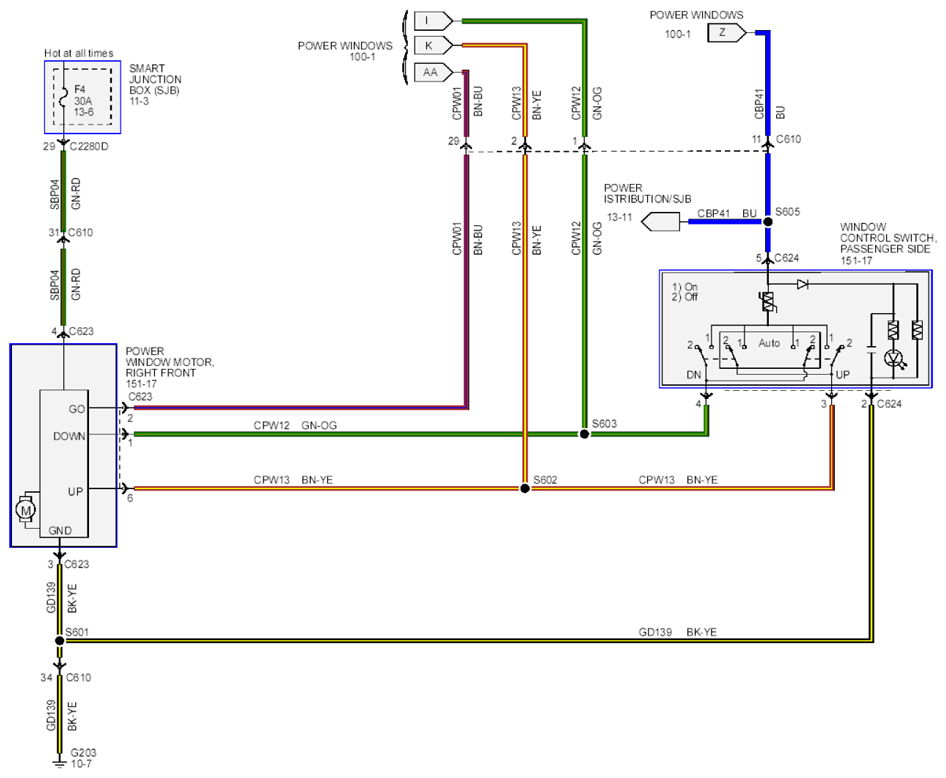

Fig 2: Power Windows Wiring Diagram - Fusion (2 Of 3)
G07935783Courtesy of FORD MOTOR CO.

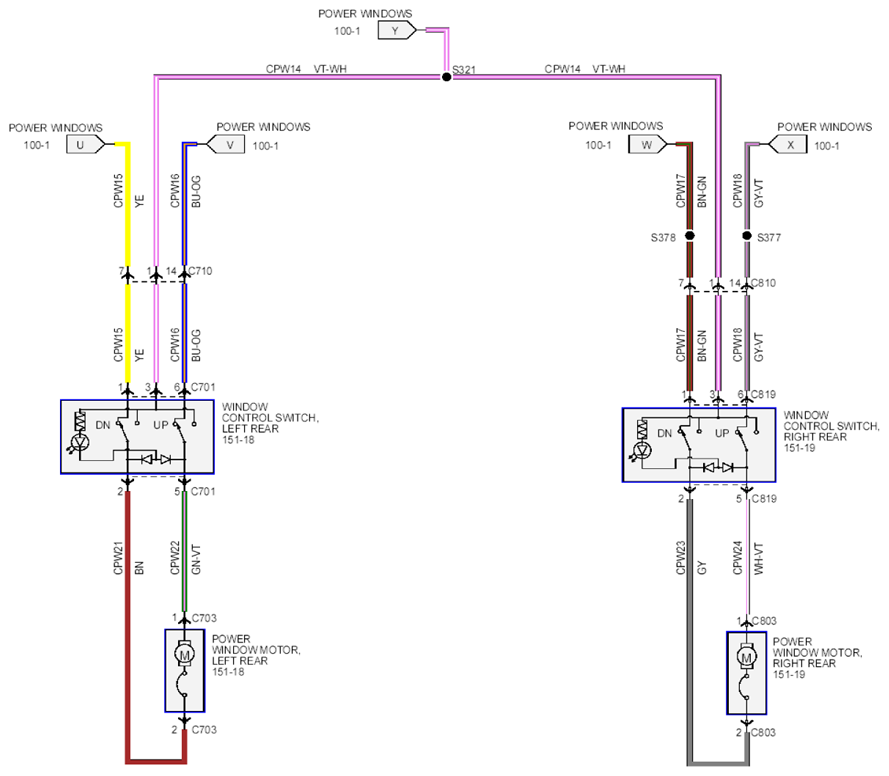

Fig 3: Power Windows Wiring Diagram - Fusion (3 Of 3)
G07935784Courtesy of FORD MOTOR CO.
