Power Distribution_SJB: MKZ

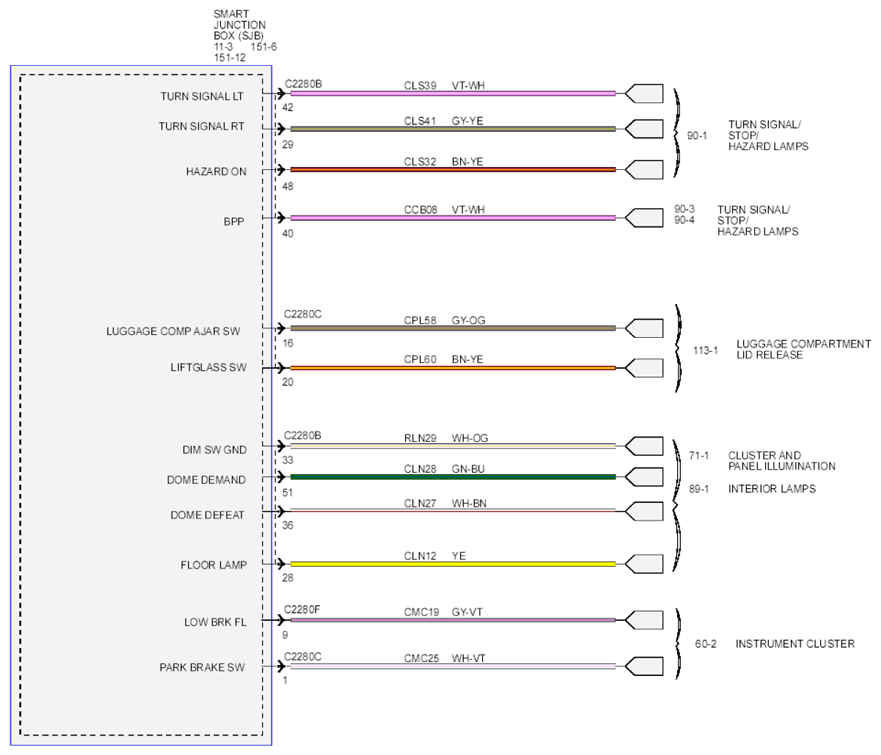

Fig 1: Power Distribution Circuit Diagram - MKZ (1 Of 4)
Courtesy of FORD MOTOR CO.

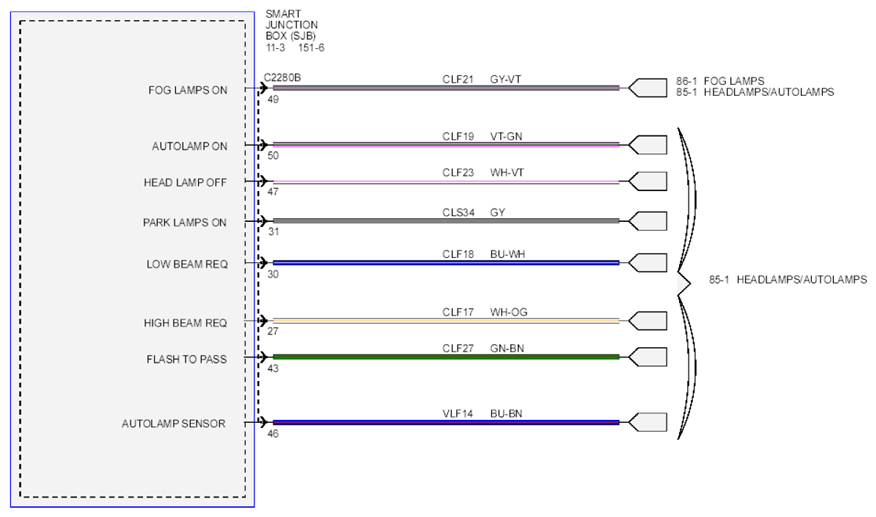

Fig 2: Power Distribution Circuit Diagram - MKZ (2 Of 4)
Courtesy of FORD MOTOR CO.

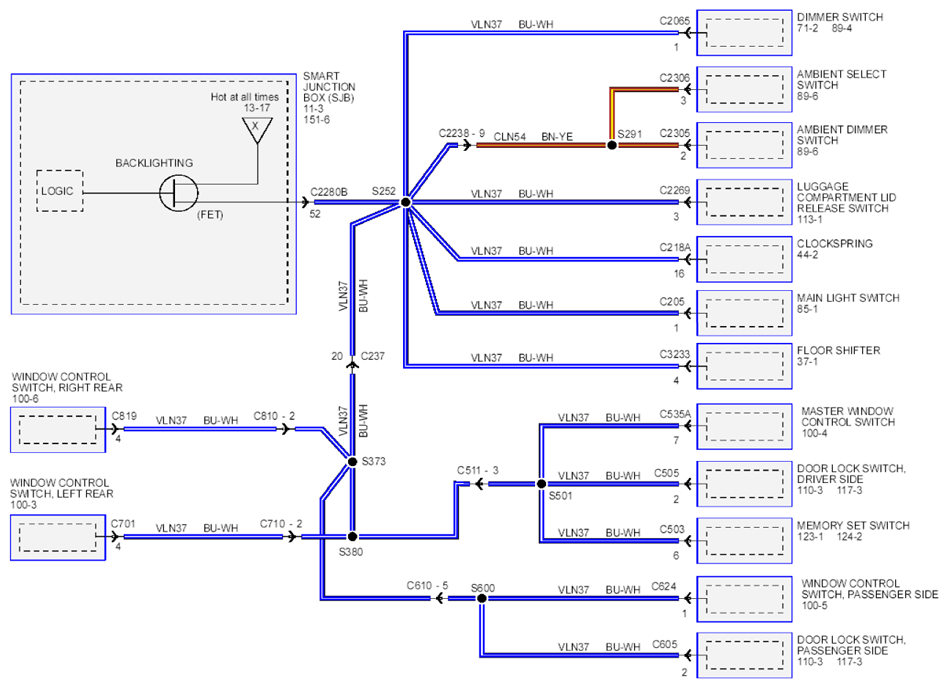

Fig 3: Power Distribution Circuit Diagram - MKZ (3 Of 4)
Courtesy of FORD MOTOR CO.

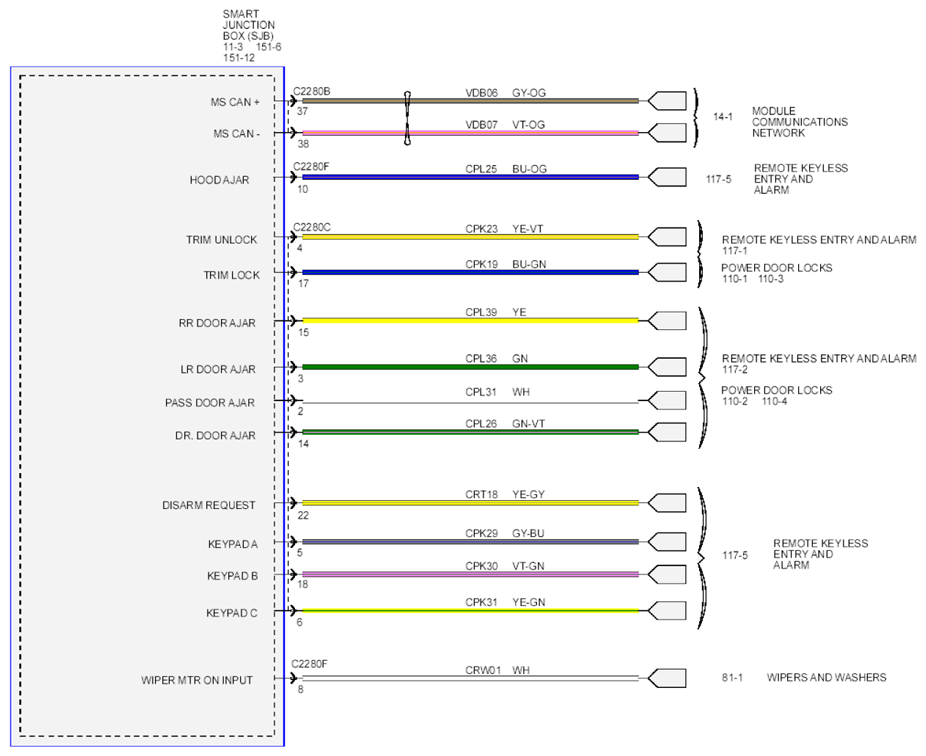

Fig 4: Power Distribution Circuit Diagram - MKZ (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
