Power Distribution_SJB: F6

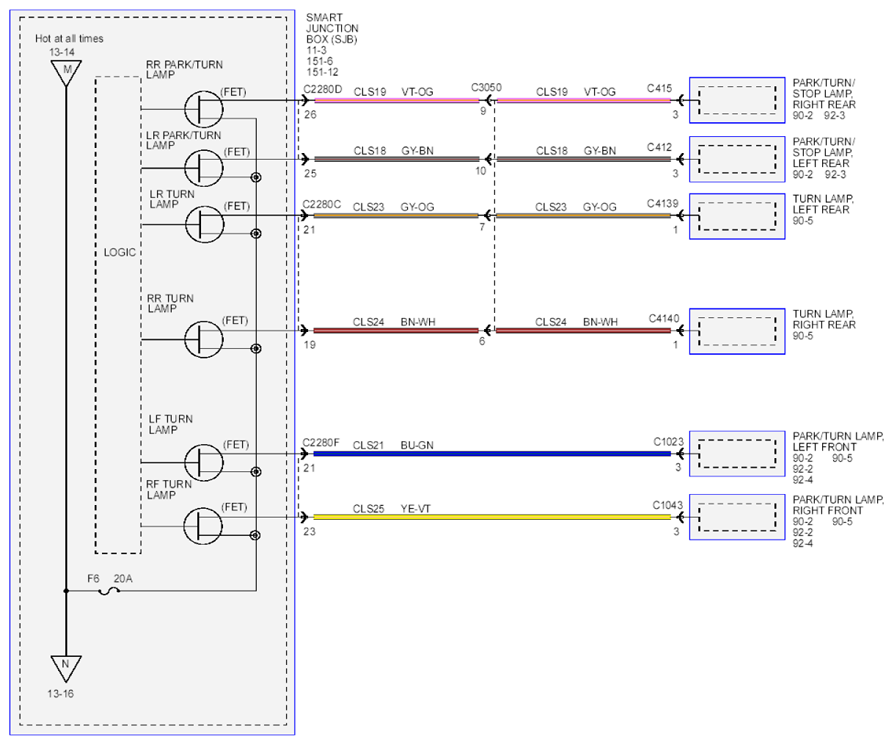

Fig 1: Power Distribution Circuit Diagram - F6

G07935701

Courtesy of FORD MOTOR CO.
