Passive Anti-Theft System
Passive Anti-Theft System

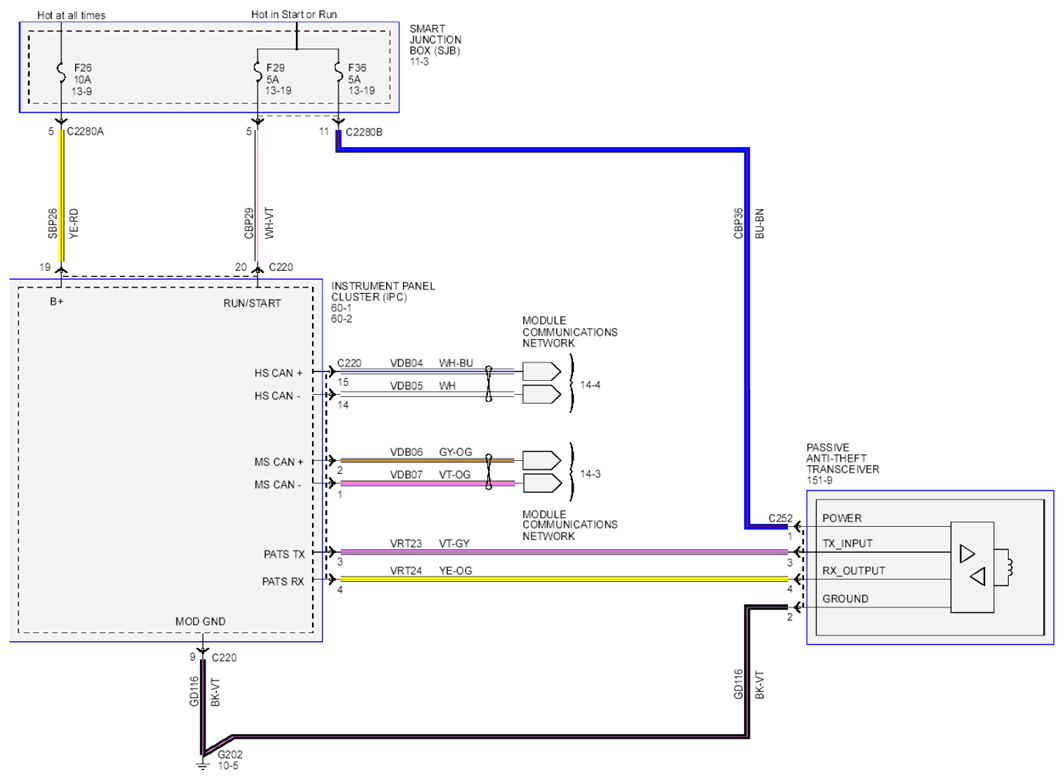

Fig 1: Passive Anti-Theft System Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
