Module Communications Network

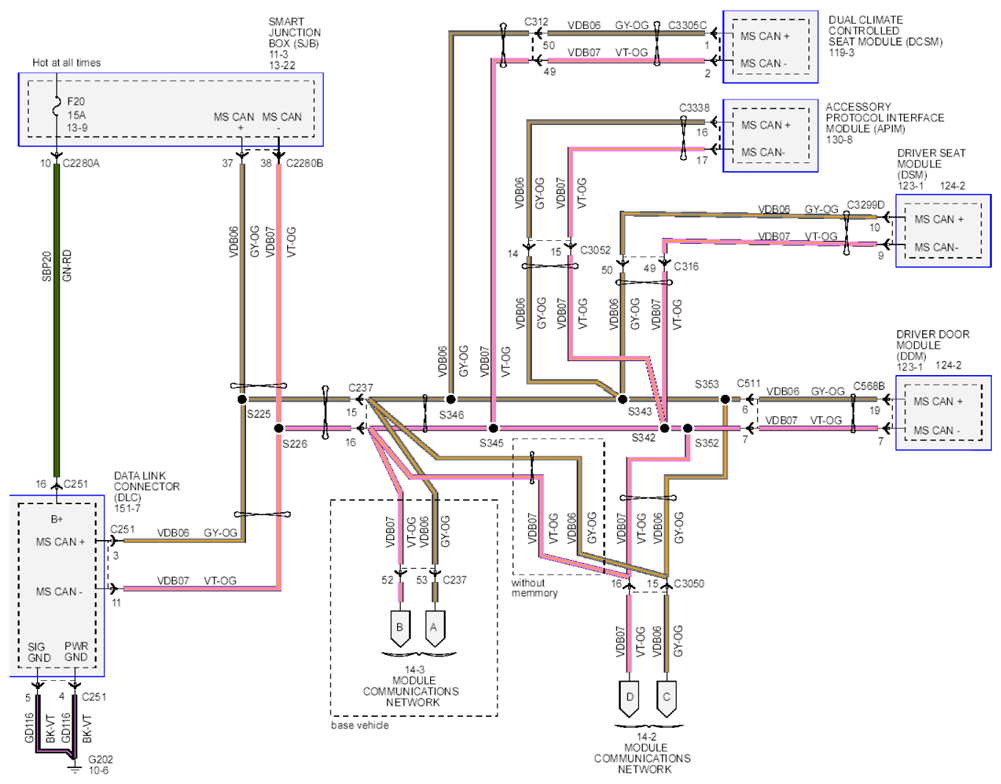

Fig 1: Module Communications Network Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

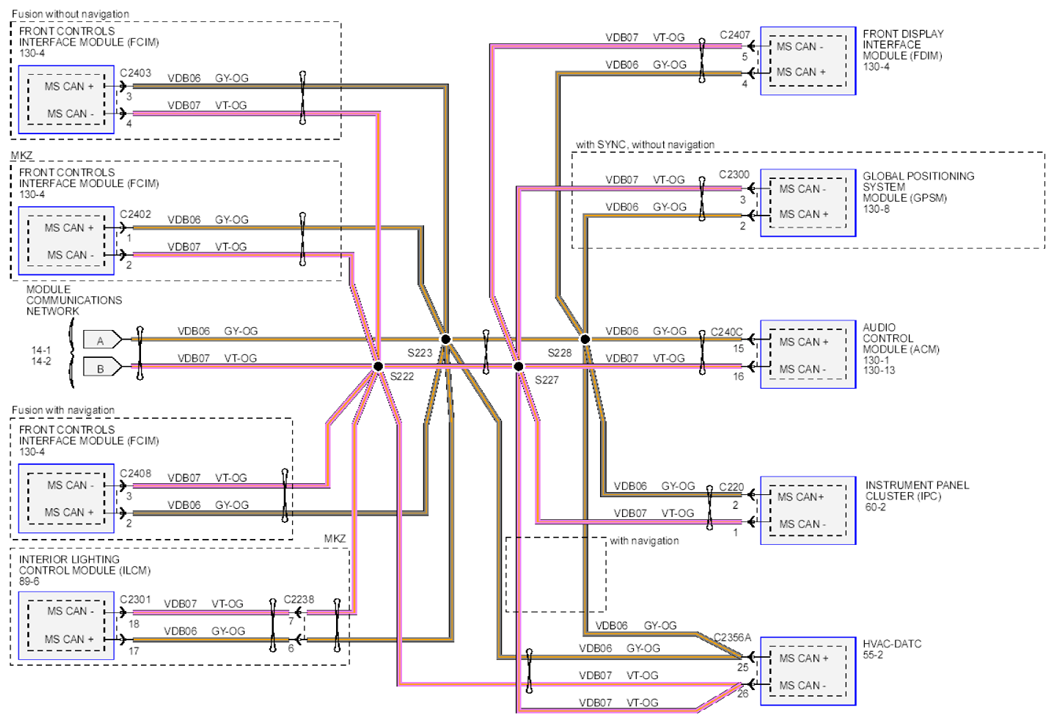

Fig 2: Module Communications Network Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

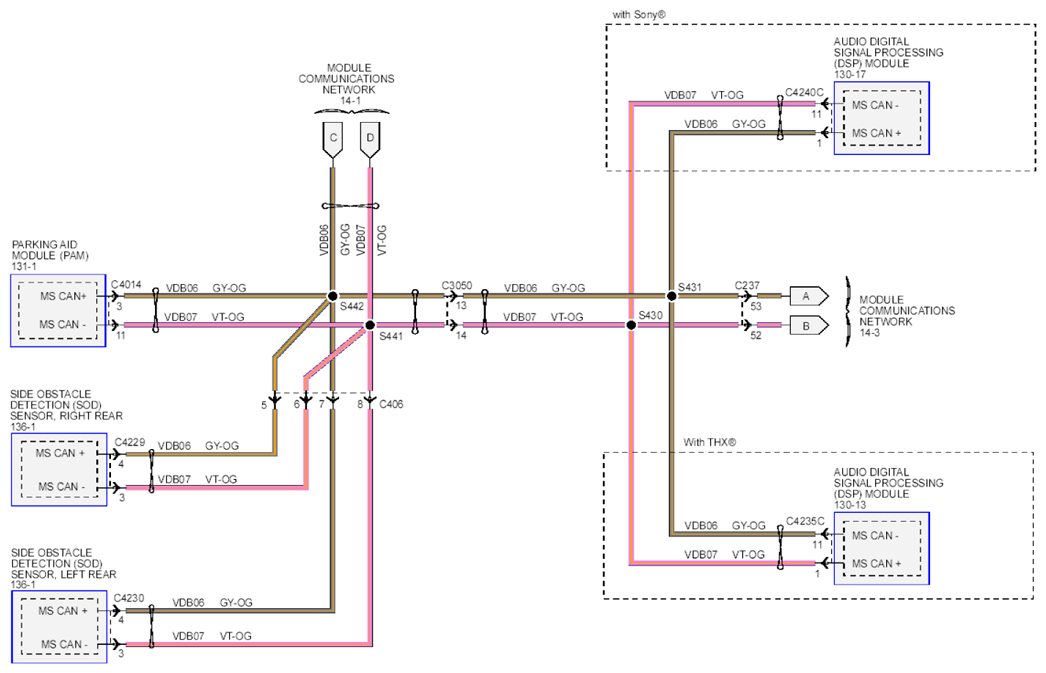

Fig 3: Module Communications Network Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

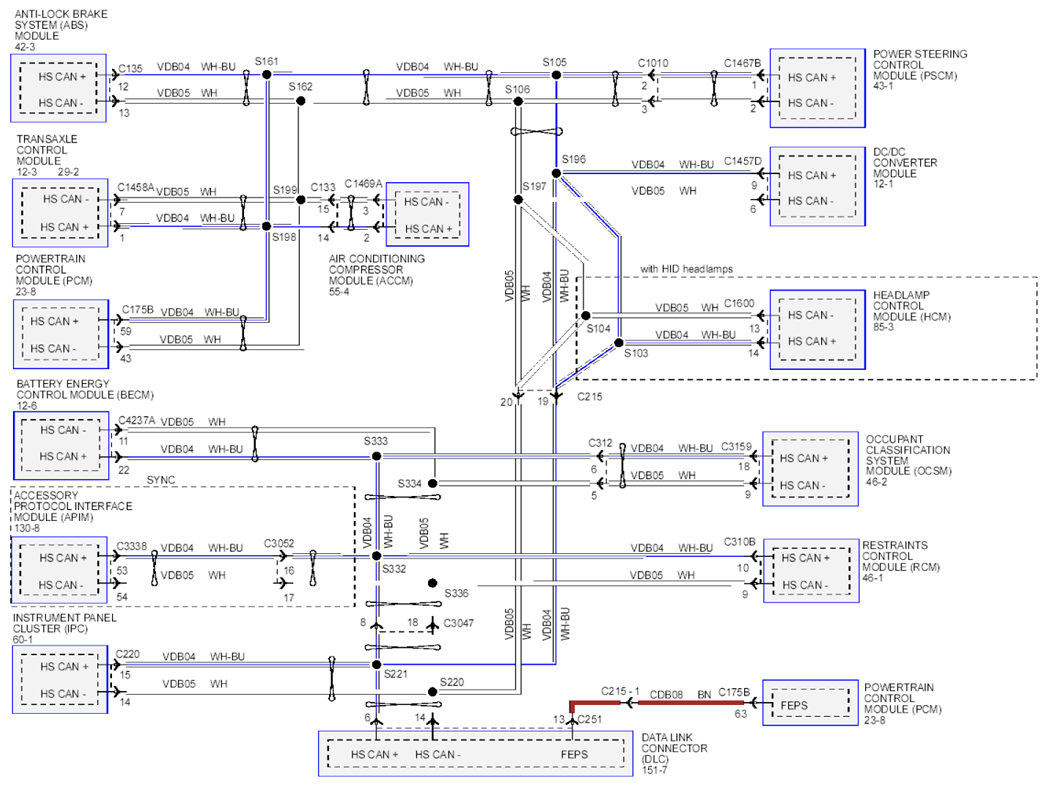

Fig 4: Module Communications Network Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
