Memory Seats

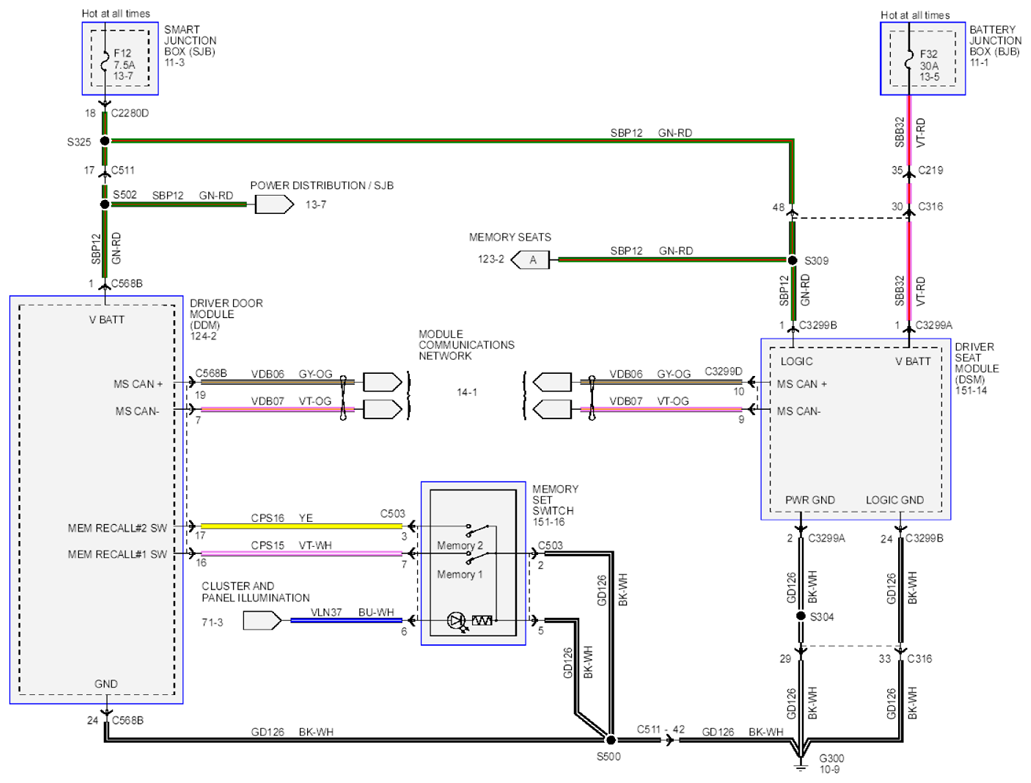

Fig 1: Memory Seats Wiring Diagram (1 Of 3)
G07935811Courtesy of FORD MOTOR CO.
Fig 2: Memory Seats Wiring Diagram (2 Of 3)
G07935812Courtesy of FORD MOTOR CO.
Fig 3: Memory Seats Wiring Diagram (3 Of 3)
G07935813Courtesy of FORD MOTOR CO.
