Home >> Lincoln >> 2012 >> MKZ Hybrid >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Hybrid) >> Cruise Control

Cruise Control

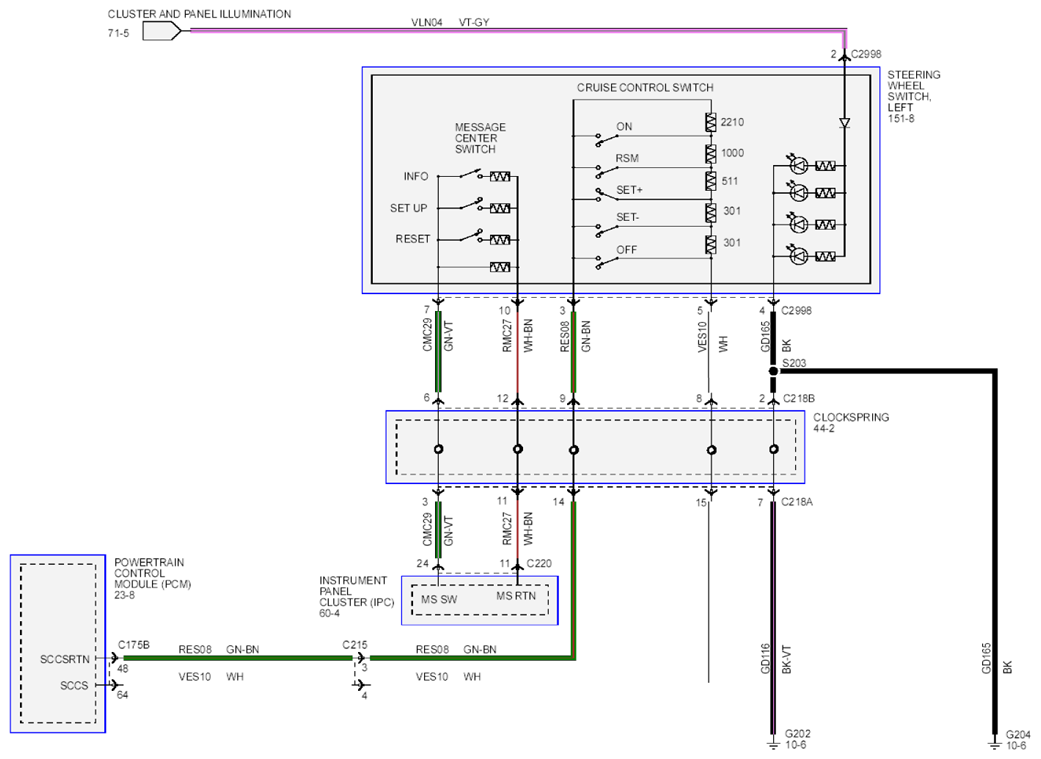

Fig 1: Cruise Control Wiring Diagram (1 Of 3)
G07935727Courtesy of FORD MOTOR CO.

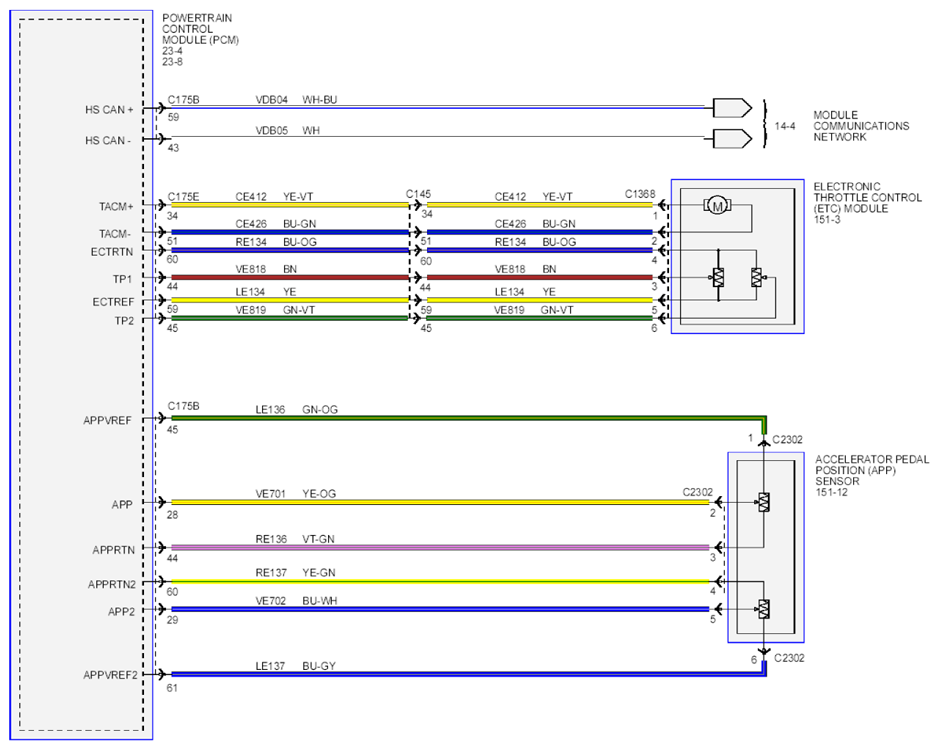

Fig 2: Cruise Control Wiring Diagram (2 Of 3)
G07935728Courtesy of FORD MOTOR CO.

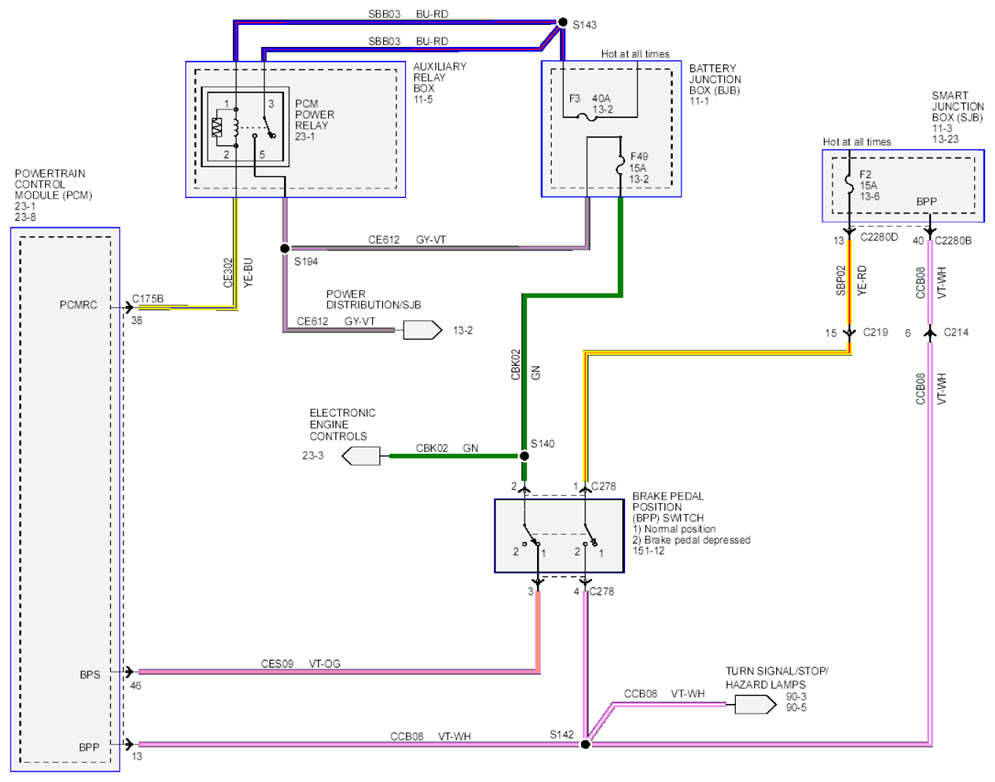

Fig 3: Cruise Control Wiring Diagram (3 Of 3)
G07935729Courtesy of FORD MOTOR CO.
