Automatic Climate Control System
Automatic Climate Control System

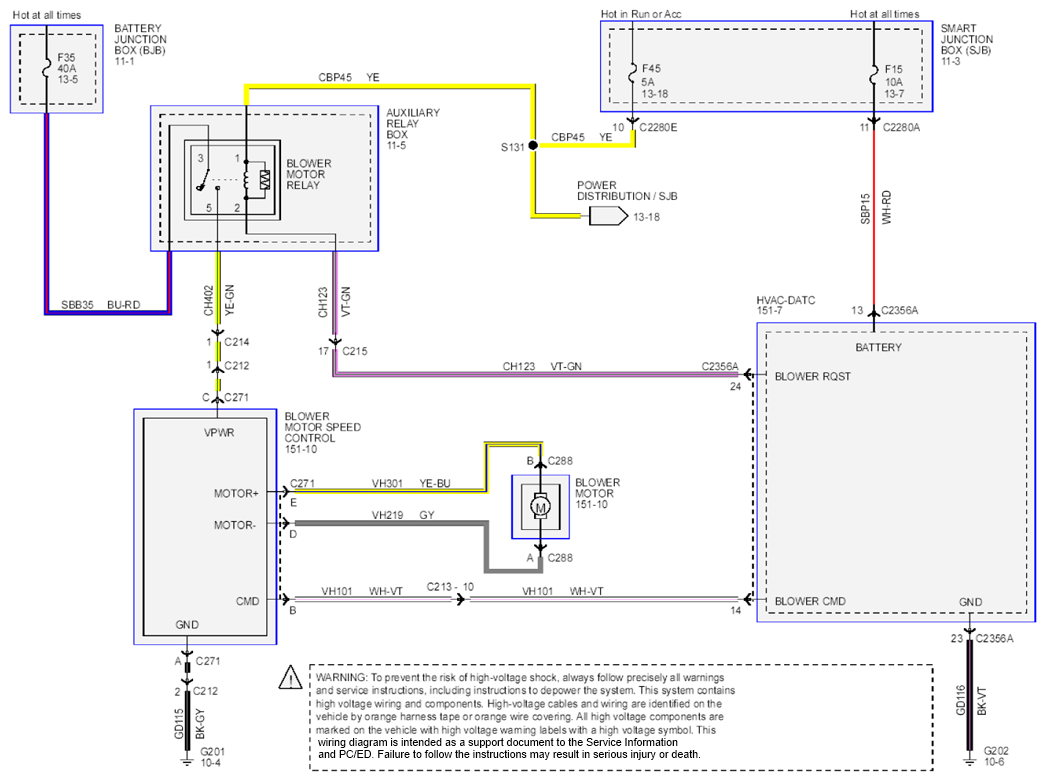

Fig 1: Automatic Climate Control System Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

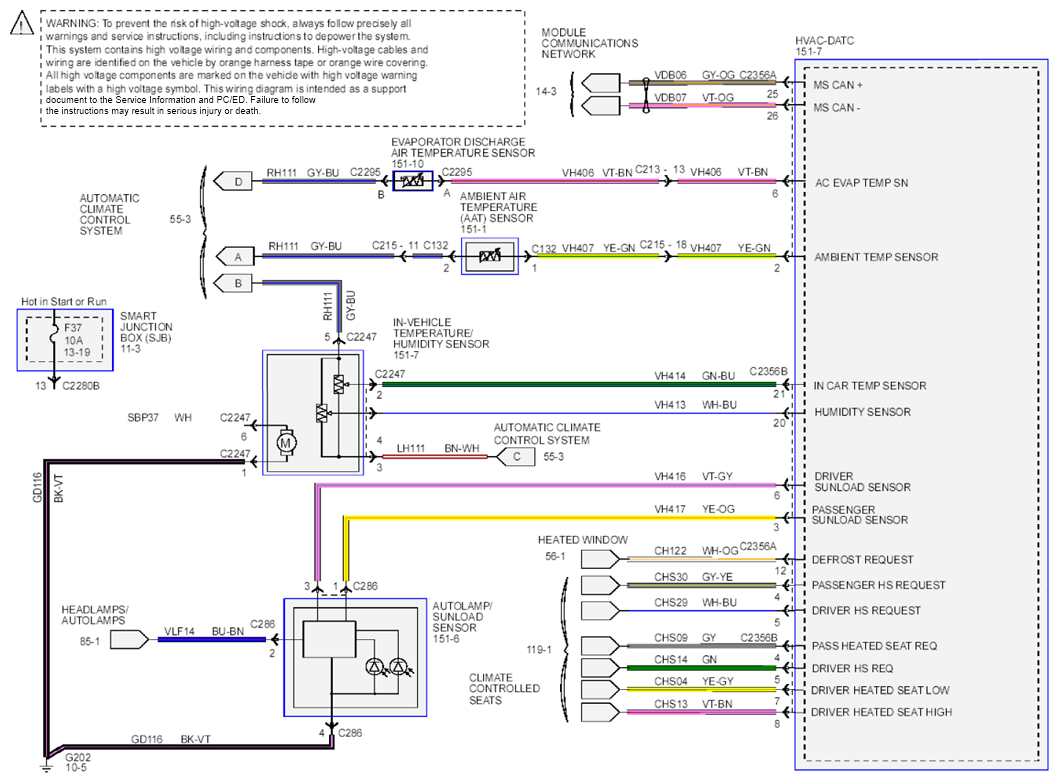

Fig 2: Automatic Climate Control System Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

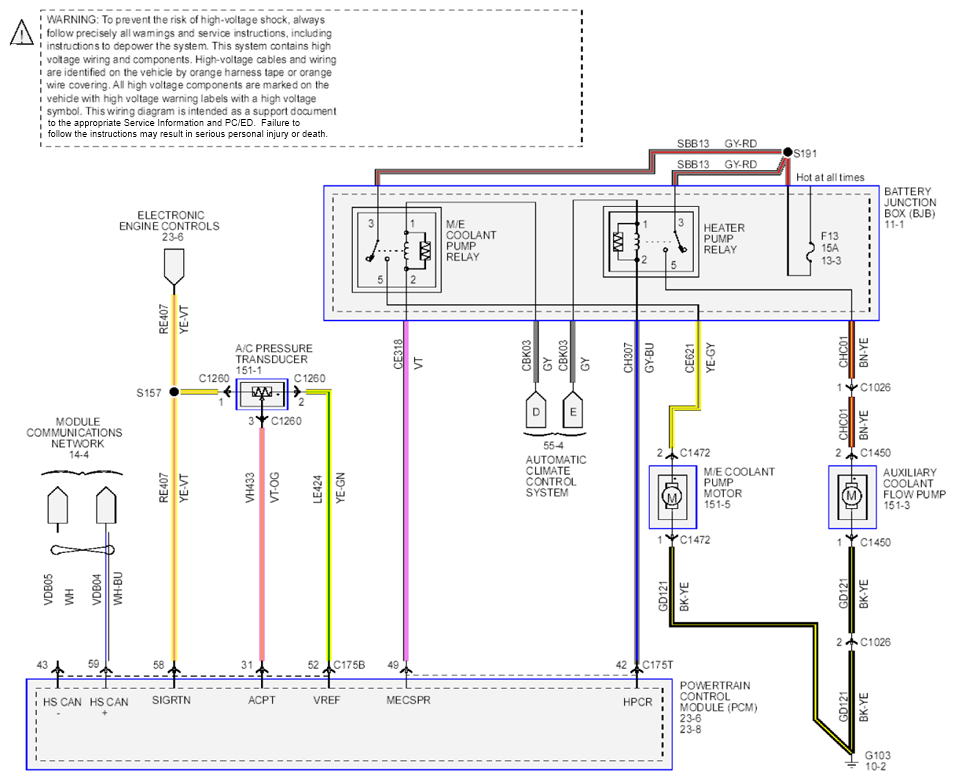

Fig 3: Automatic Climate Control System Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

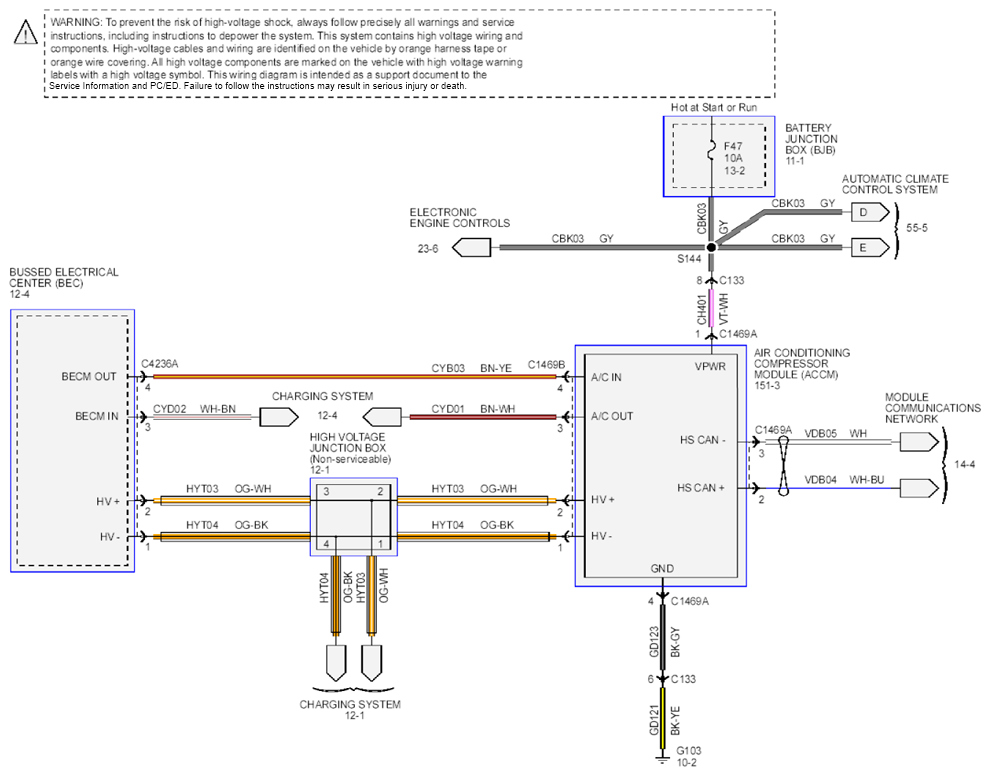

Fig 4: Automatic Climate Control System Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

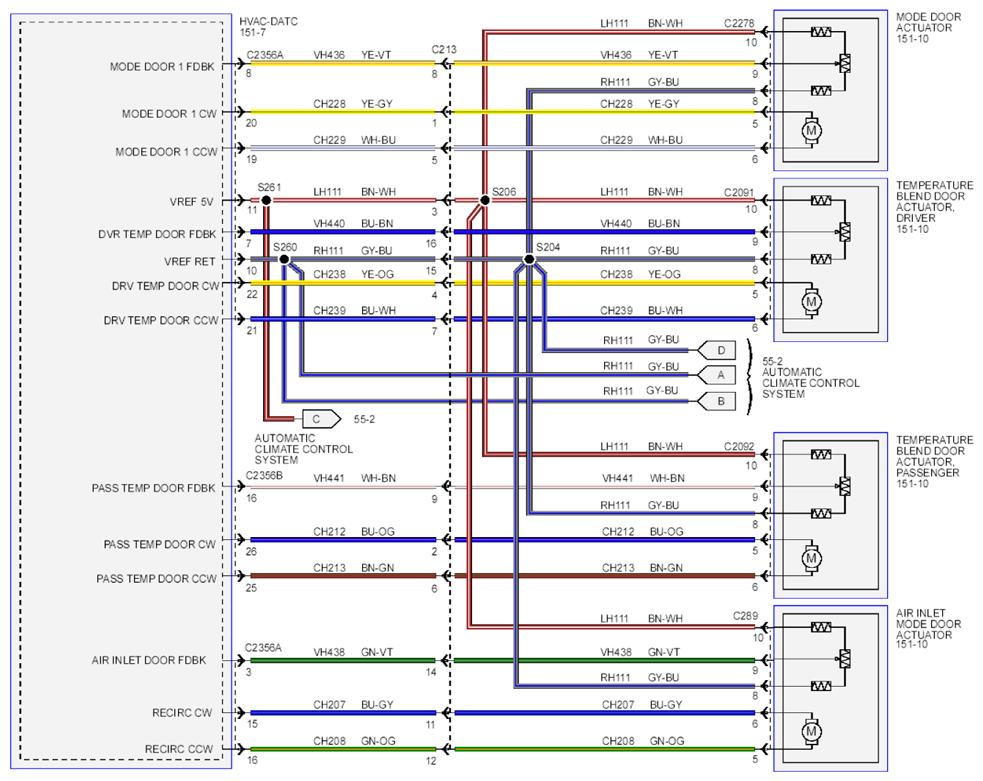

Fig 5: Automatic Climate Control System Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
