Audio System_Navigation: Sync

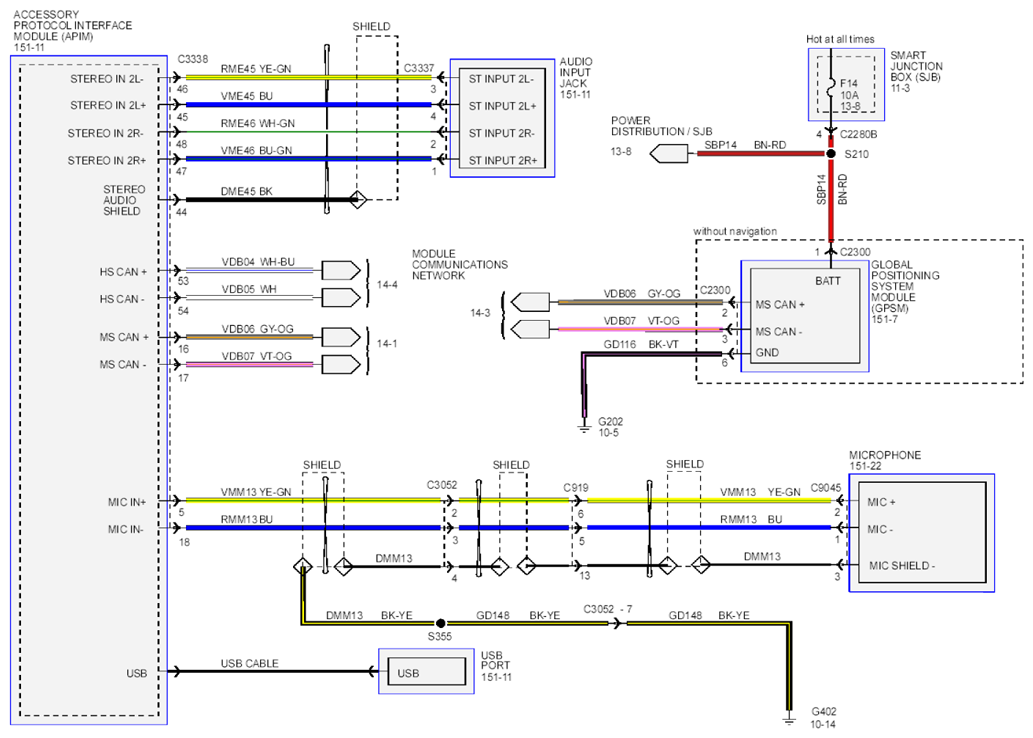

Fig 1: Audio System & Navigation Wiring Diagram - SYNC (1 Of 3)
G07935828Courtesy of FORD MOTOR CO.

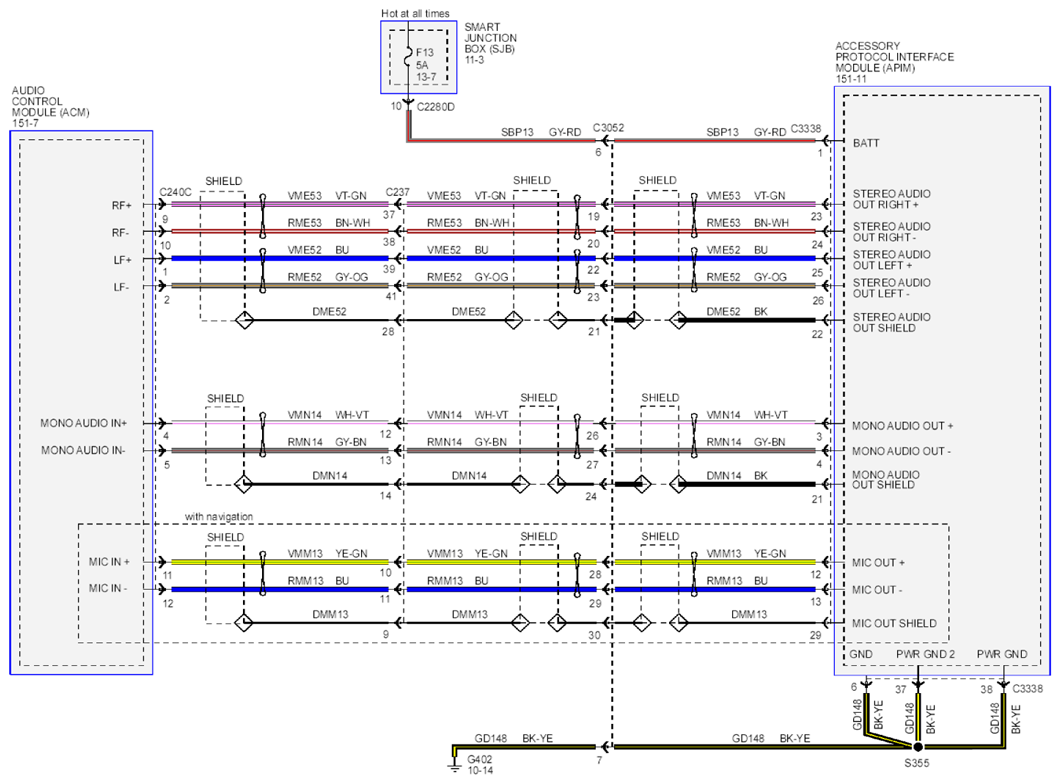

Fig 2: Audio System & Navigation Wiring Diagram - SYNC (2 Of 3)
G07935829Courtesy of FORD MOTOR CO.

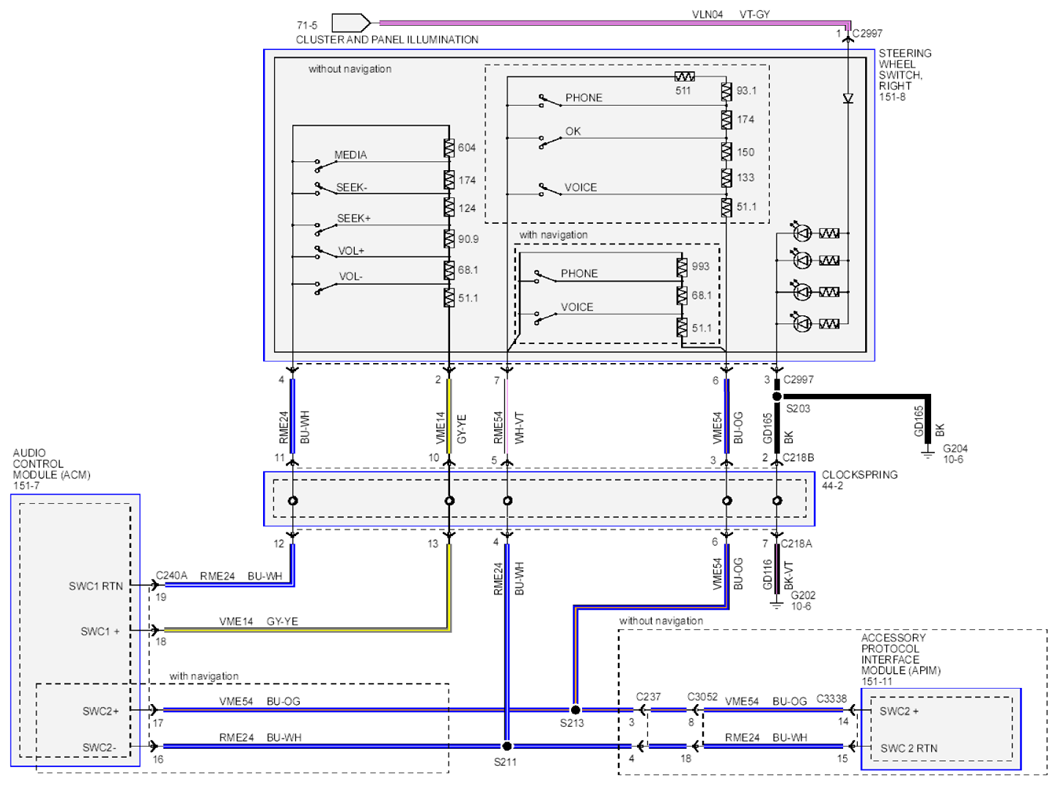

Fig 3: Audio System & Navigation Wiring Diagram - SYNC (3 Of 3)
G07935830Courtesy of FORD MOTOR CO.
