SONY® Audio

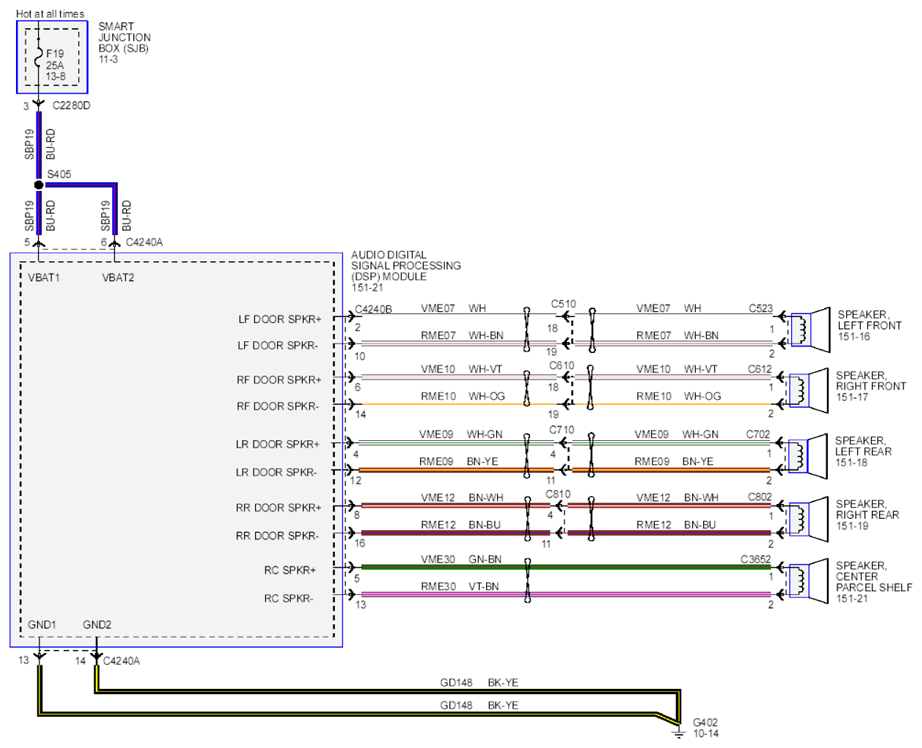

Fig 1: Audio System & Navigation Wiring Diagram - SONY® Audio (1 Of 3)
G07935835Courtesy of FORD MOTOR CO.

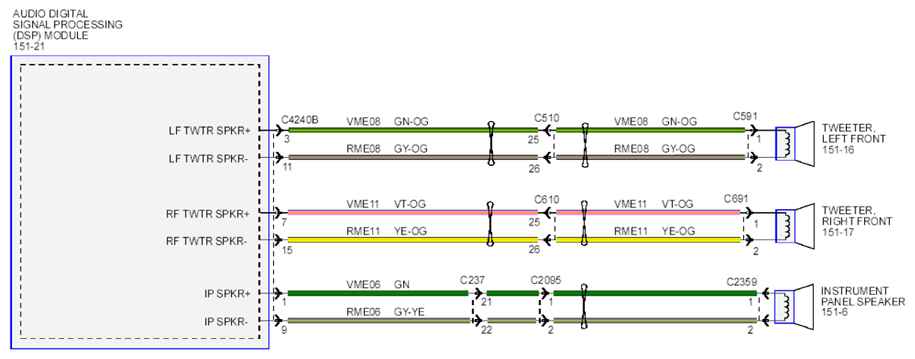

Fig 2: Audio System & Navigation Wiring Diagram - SONY® Audio (2 Of 3)
G07935836Courtesy of FORD MOTOR CO.

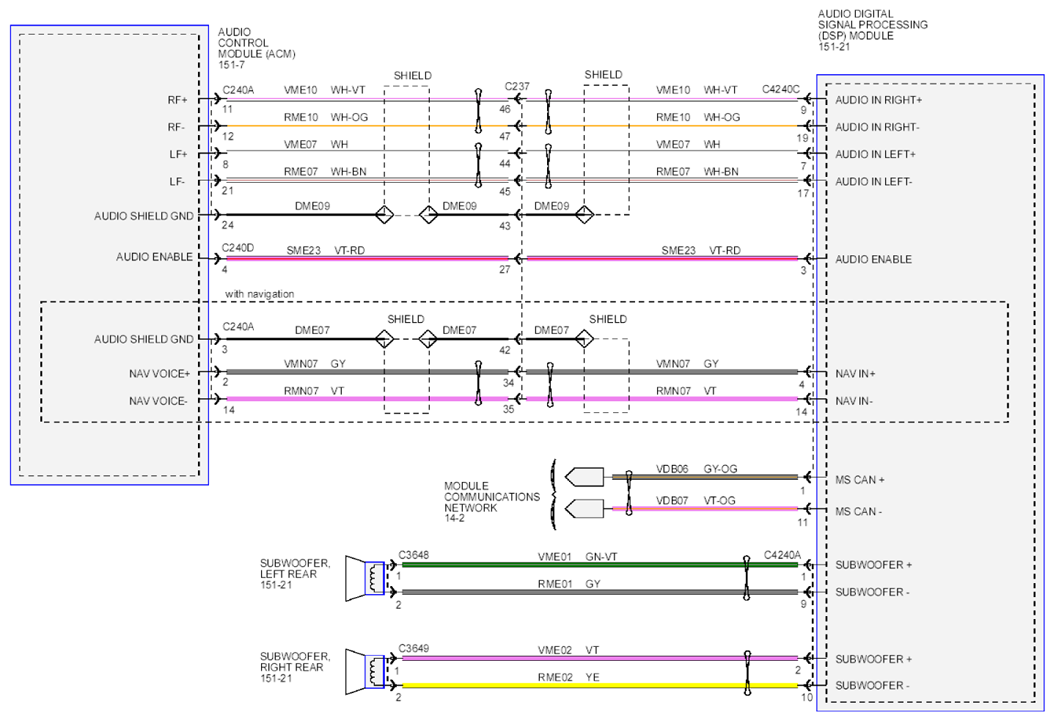

Fig 3: Audio System & Navigation Wiring Diagram - SONY® Audio (3 Of 3)
G07935837Courtesy of FORD MOTOR CO.
