Audio System_Navigation
>>
SONY® Audio With Navigation
SONY® Audio With Navigation

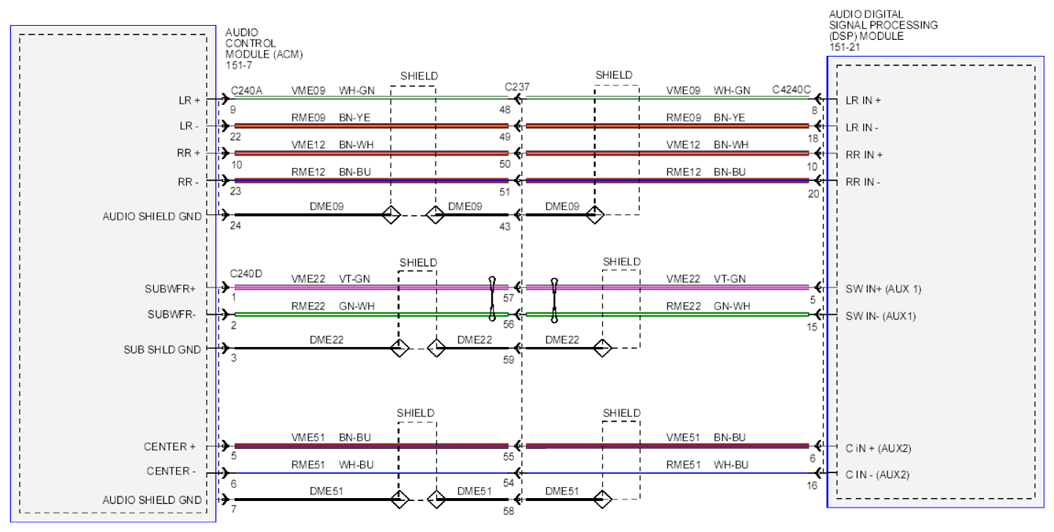

Fig 1: Audio System & Navigation Wiring Diagram - SONY® Audio With Navigation
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
