Audio System_Navigation: Notes

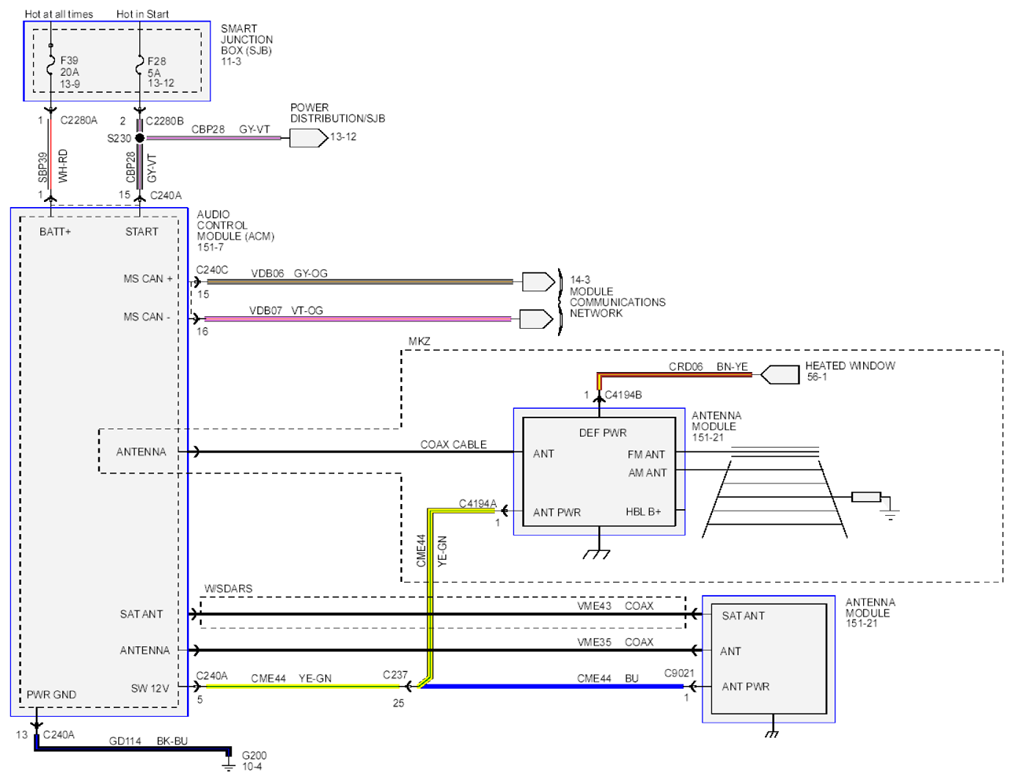

Fig 1: Audio System & Navigation Wiring Diagram
G07935821Courtesy of FORD MOTOR CO.
