Audio System_Navigation: Navigation

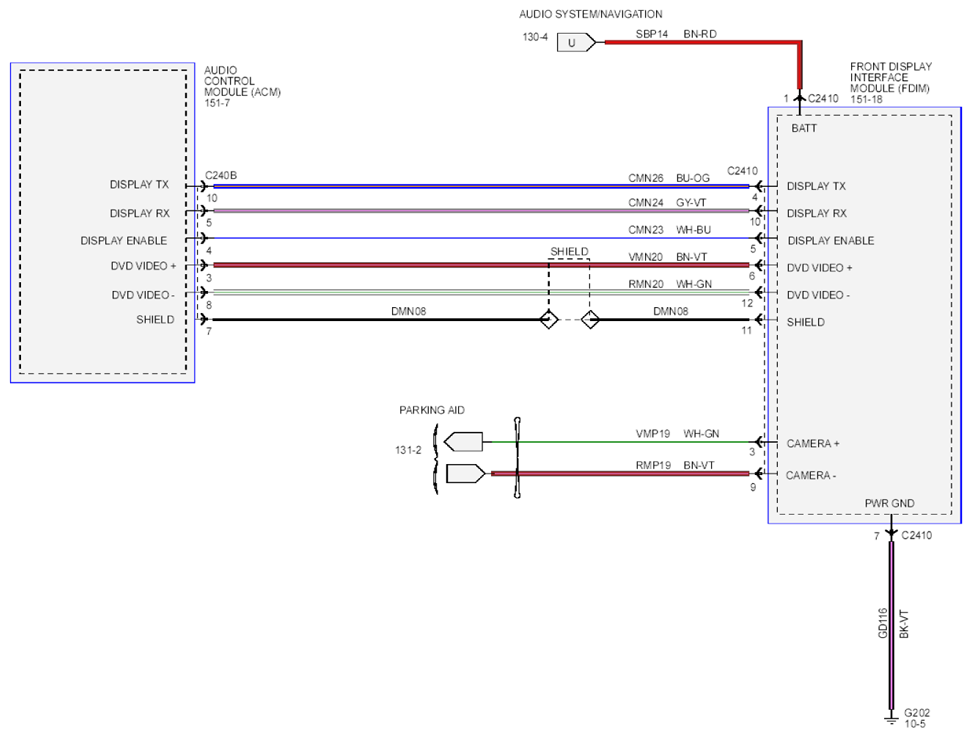

Fig 1: Audio System & Navigation Wiring Diagram - Navigation (1 Of 3)
G07935825Courtesy of FORD MOTOR CO.

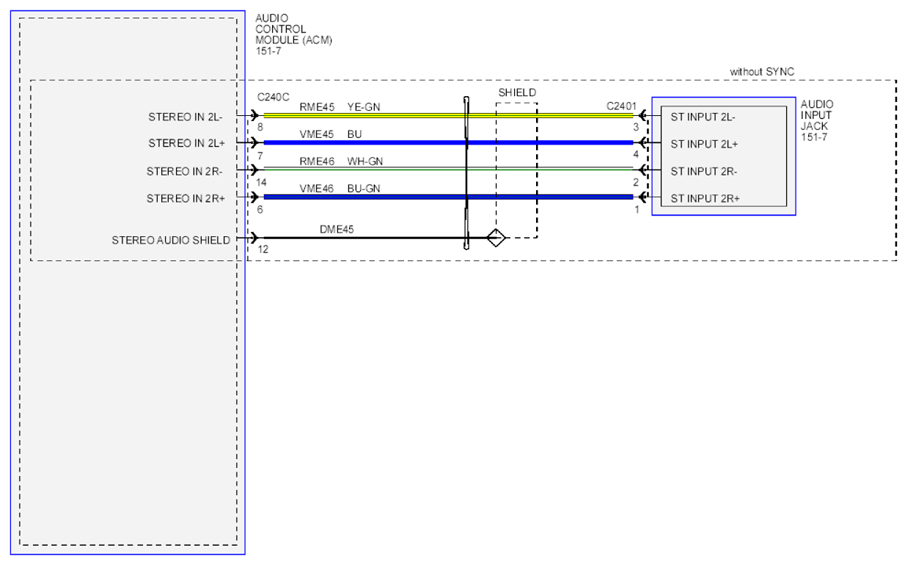

Fig 2: Audio System & Navigation Wiring Diagram - Navigation (2 Of 3)
G07935826Courtesy of FORD MOTOR CO.

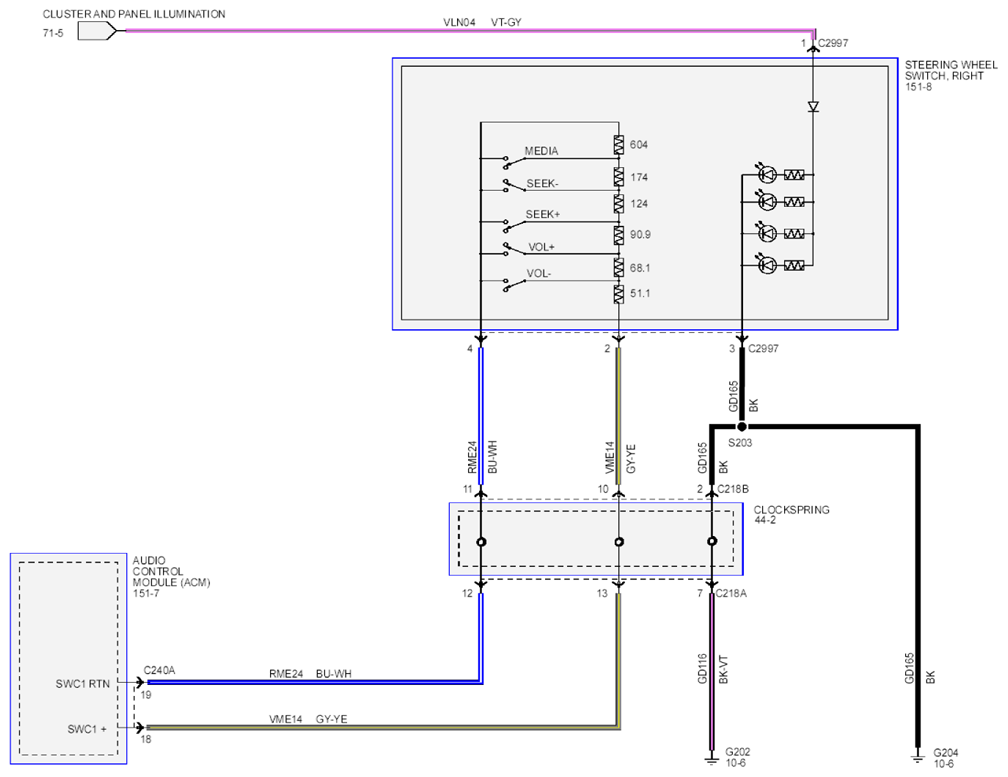

Fig 3: Audio System & Navigation Wiring Diagram - Navigation (3 Of 3)
G07935827Courtesy of FORD MOTOR CO.
