Base - Audio

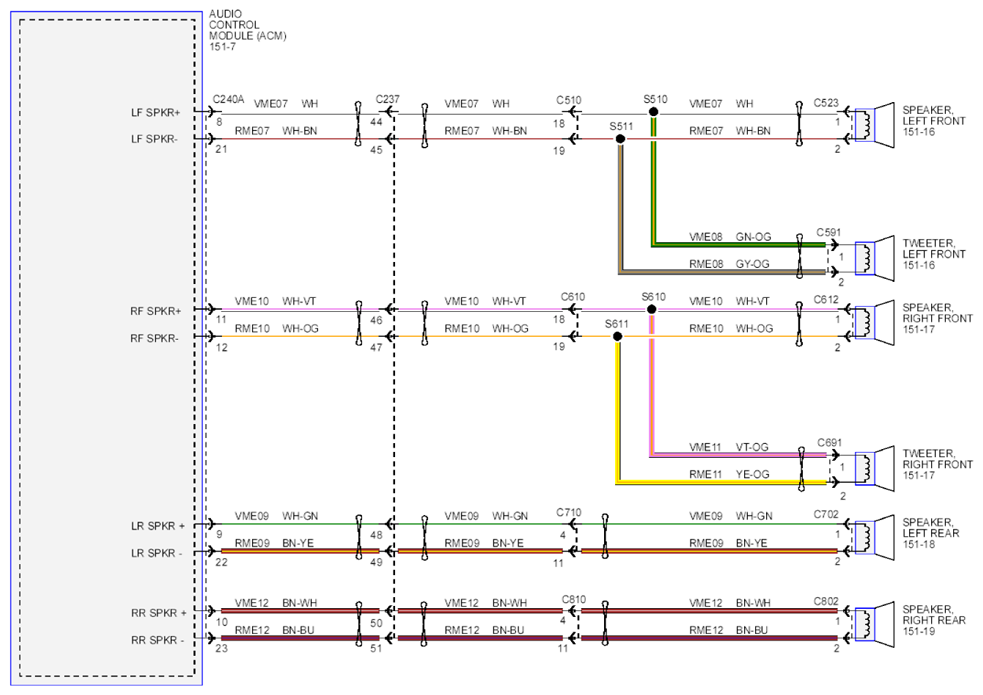

Fig 1: Audio System & Navigation Wiring Diagram - Base, Audio

G07935822

Courtesy of FORD MOTOR CO.
