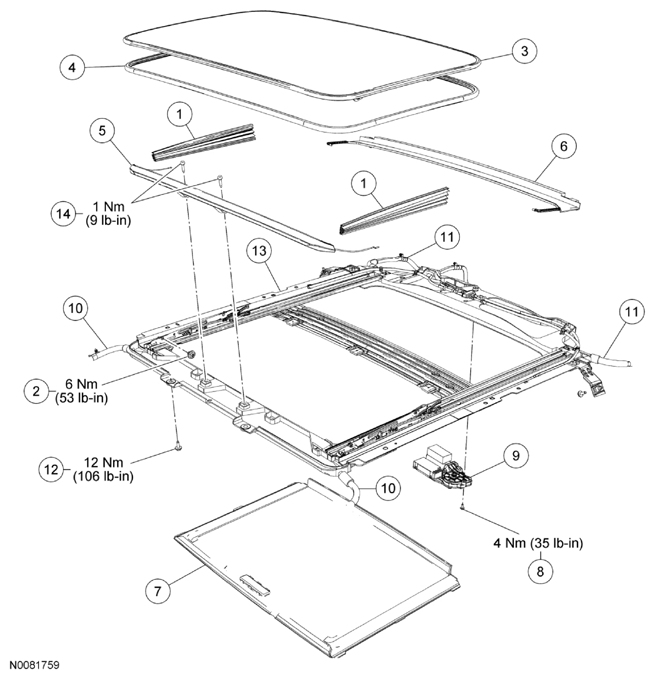

| 1 |
500A66 |
Concertina blinds (2 required) |
| 2 |
- |
Roof opening panel glass screw (4 required) (part of roof opening panel glass) |
| 3 |
54500A18 |
Roof opening panel glass |
| 4 |
5451884 |
Roof opening panel glass seal |
| 5 |
54500A26 |
Roof opening panel air deflector |
| 6 |
7854022 |
Roof opening panel trough |
| 7 |
54519A02 |
Roof opening panel shield |
| 8 |
- |
Roof opening panel motor screw (3 required) (part of roof opening panel motor) |
| 9 |
15B689 |
Roof opening panel motor |
| 10 |
502C52A |
Front drain hoses |
| 11 |
502C52B |
Rear drain hoses |
| 12 |
W302325 |
Roof opening panel frame bolt (8 required) |
| 13 |
54502C22 |
Roof opening panel frame |
| 14 |
- |
Air deflector screws (part of roof opening panel air deflector) |
