Wipers and Washers
Wipers and Washers

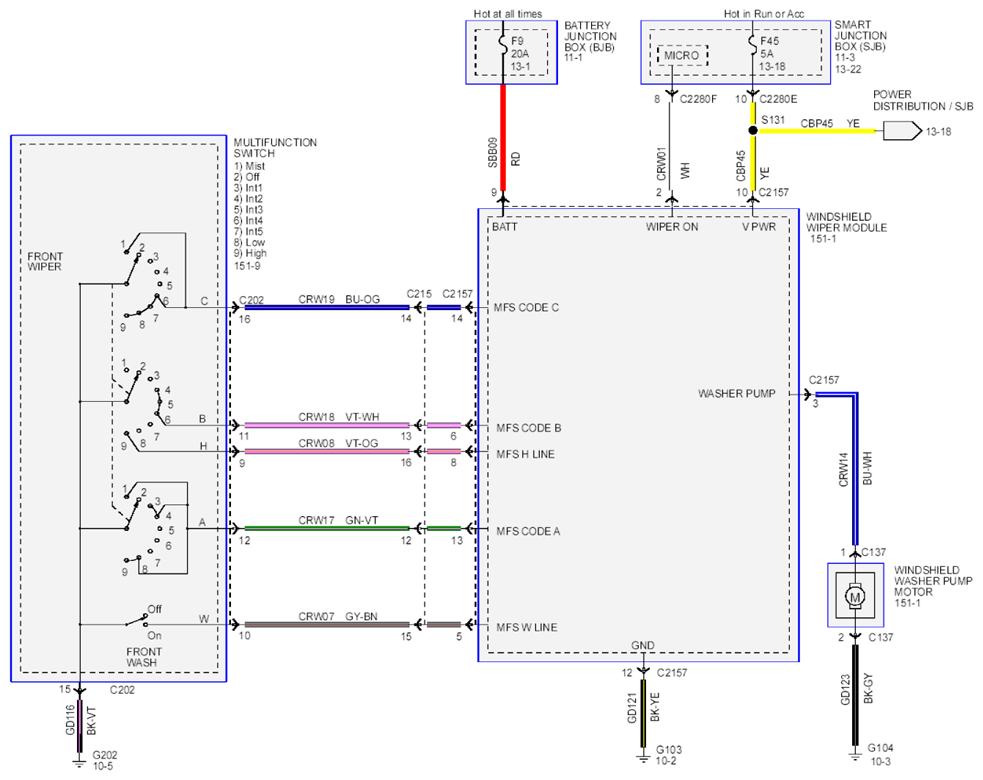

Fig 1: Wipers And Washers Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

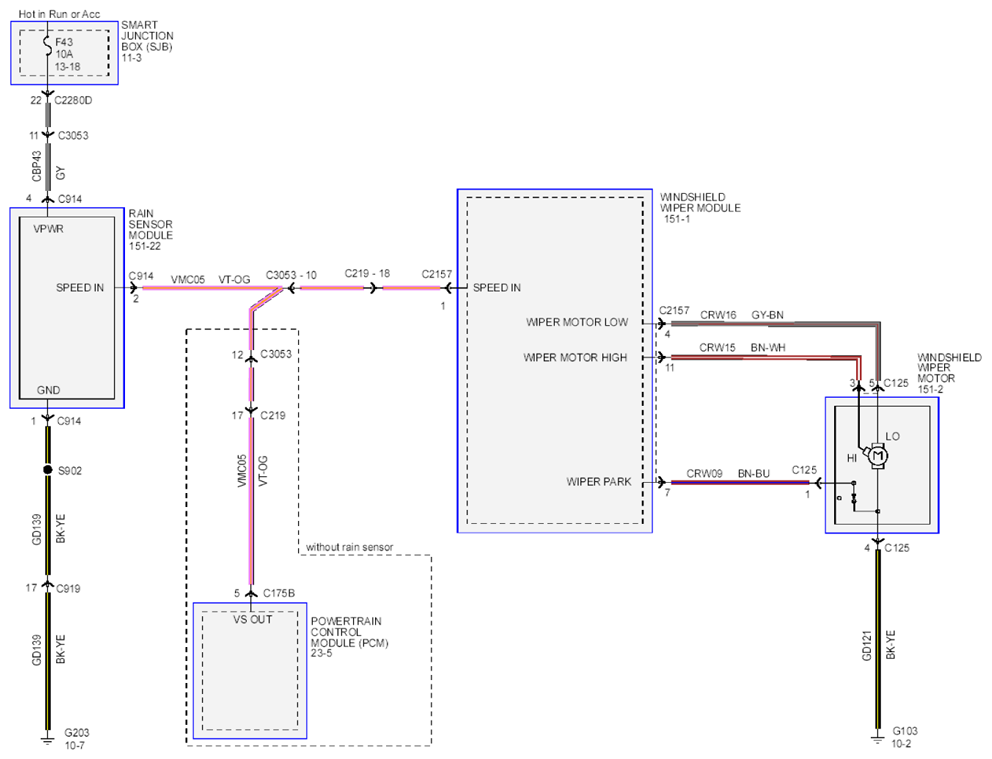

Fig 2: Wipers And Washers Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
