Turn Signal_Stop_Hazard Lamps: Notes

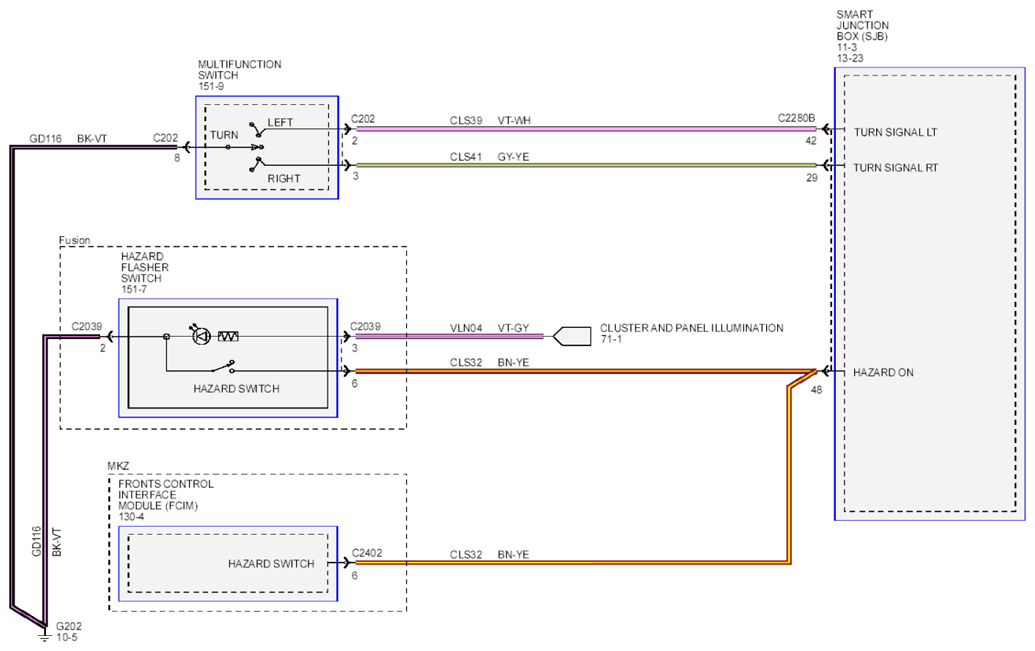

Fig 1: Turn Signal Stop Hazard Lamps Wiring Diagram

G07935771

Courtesy of FORD MOTOR CO.
