Turn Signal_Stop_Hazard Lamps: MKZ

Fig 1: Turn Signal Stop Hazard Lamps Wiring Diagram - MKZ (1 Of 2)
G07935774Courtesy of FORD MOTOR CO.

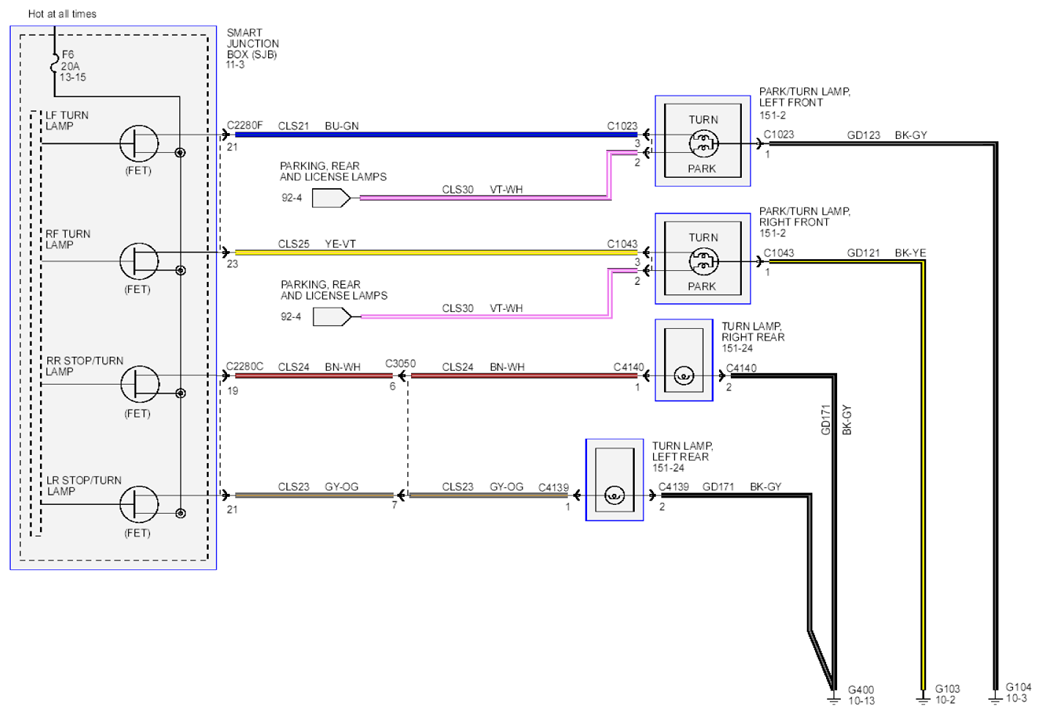

Fig 2: Turn Signal Stop Hazard Lamps Wiring Diagram - MKZ (2 Of 2)
G07935775Courtesy of FORD MOTOR CO.
