Turn Signal_Stop_Hazard Lamps: Fusion

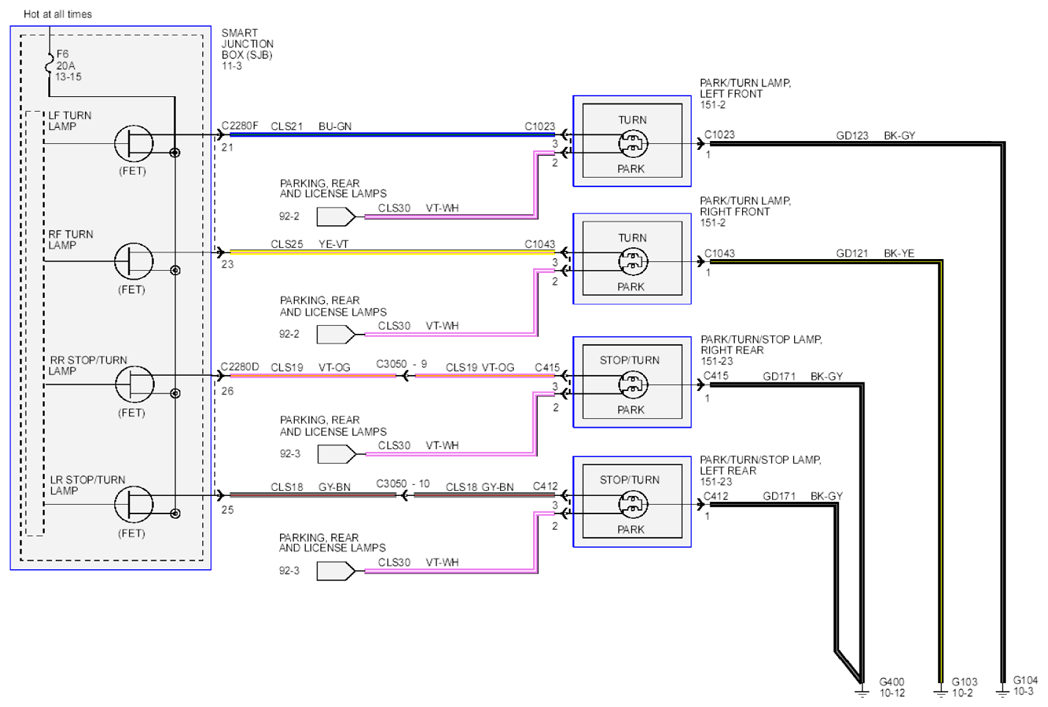

Fig 1: Turn Signal Stop Hazard Lamps Wiring Diagram - Fusion (1 Of 2)
G07935772Courtesy of FORD MOTOR CO.

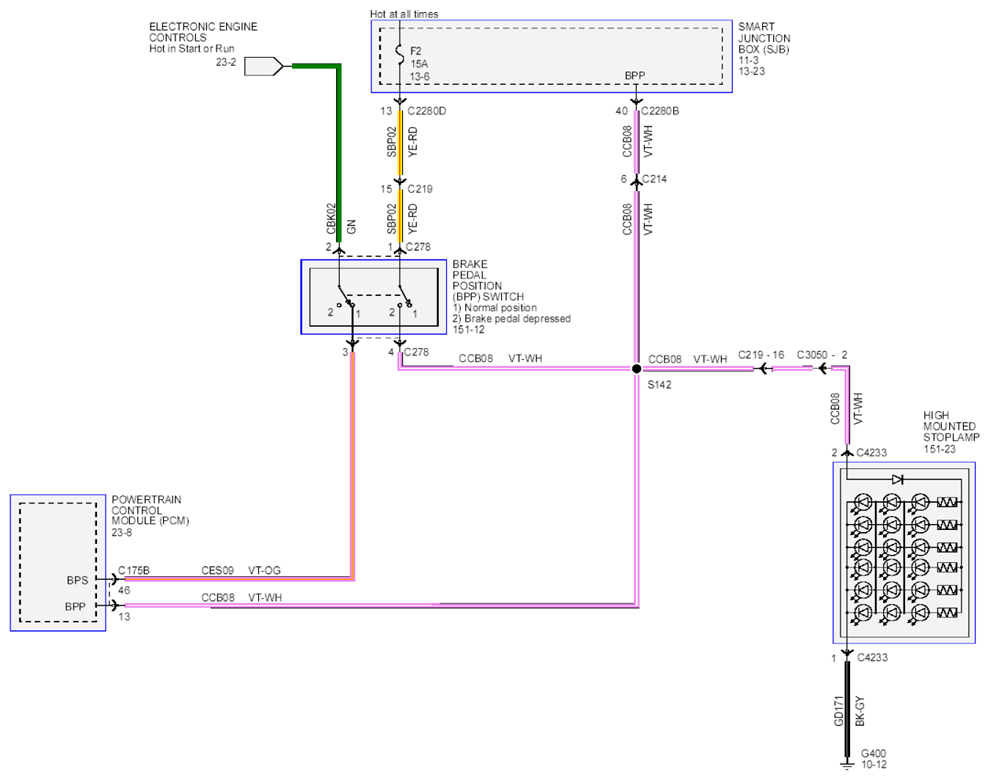

Fig 2: Turn Signal Stop Hazard Lamps Wiring Diagram - Fusion (2 Of 2)
G07935773Courtesy of FORD MOTOR CO.
