Supplemental Restraint System

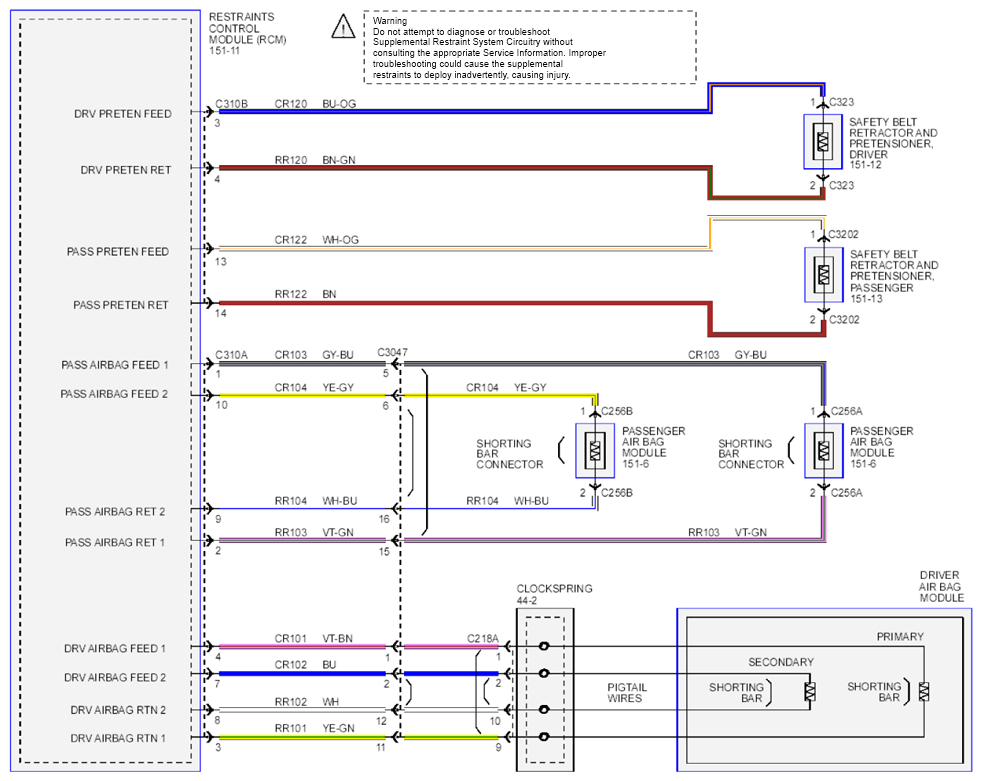

Fig 1: Supplemental Restraint System Wiring Diagram (1 Of 6)

Courtesy of FORD MOTOR CO.

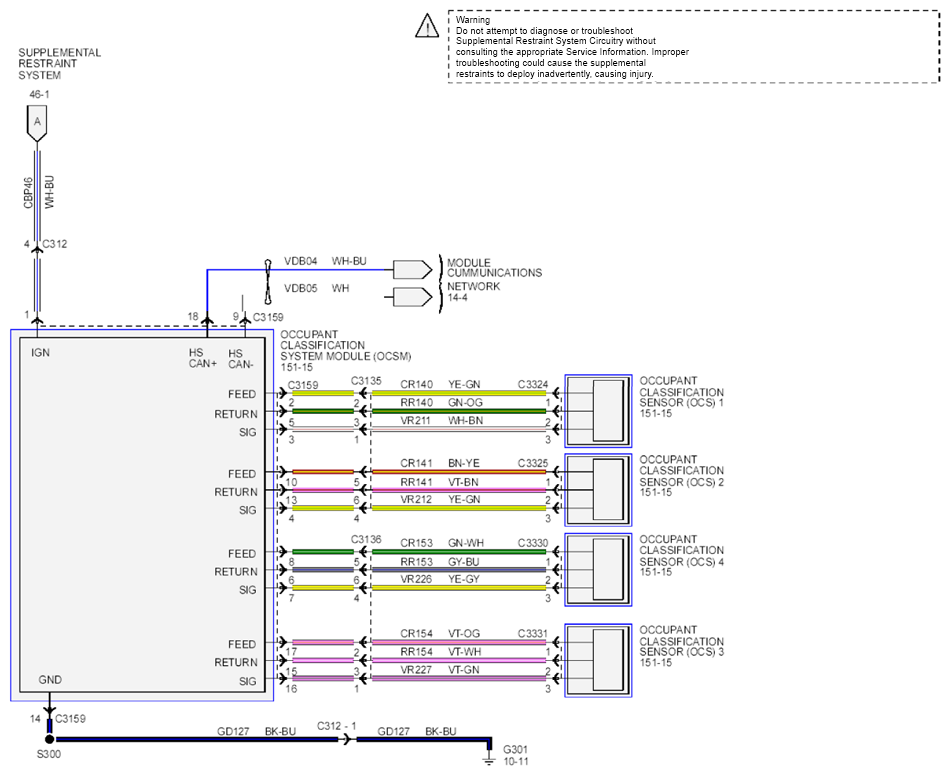

Fig 2: Supplemental Restraint System Wiring Diagram (2 Of 6)

Courtesy of FORD MOTOR CO.

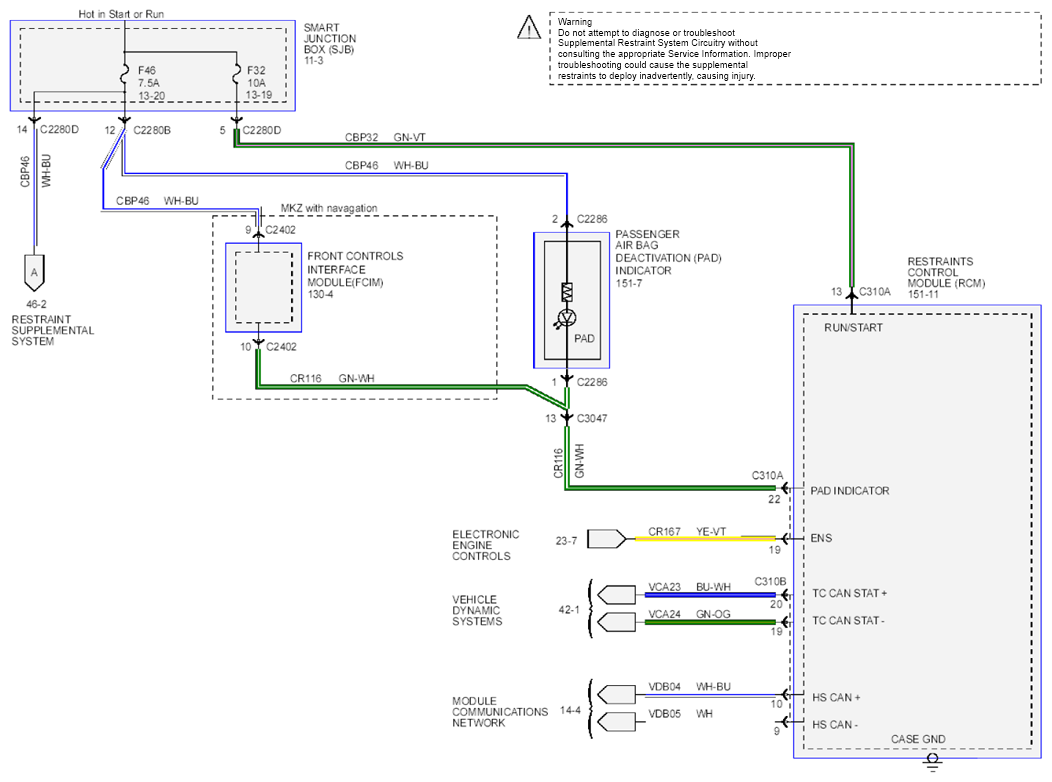

Fig 3: Supplemental Restraint System Wiring Diagram (3 Of 6)

Courtesy of FORD MOTOR CO.

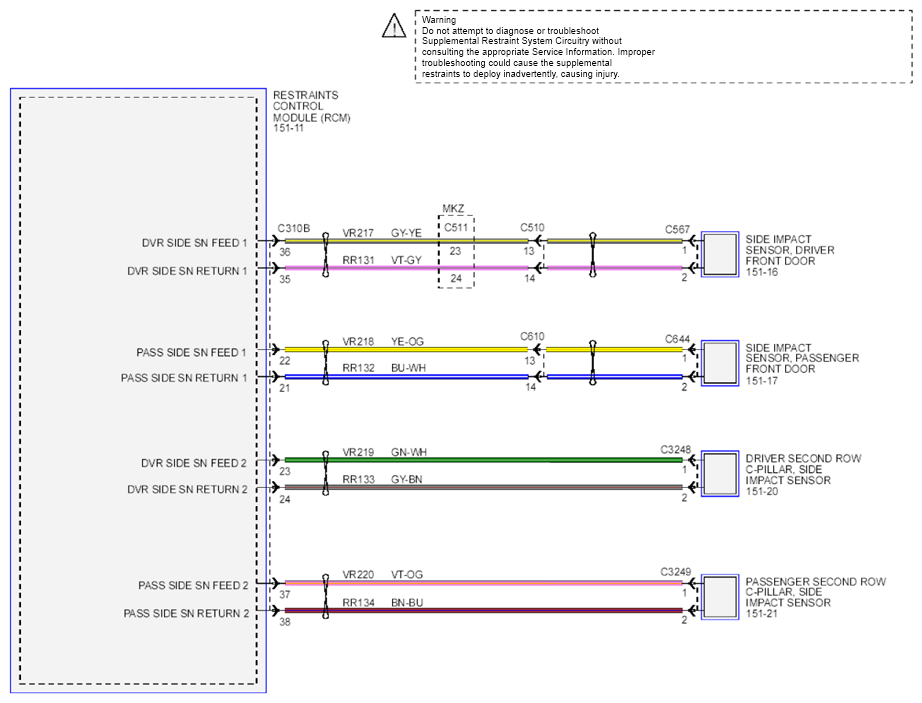

Fig 4: Supplemental Restraint System Wiring Diagram (4 Of 6)

Courtesy of FORD MOTOR CO.

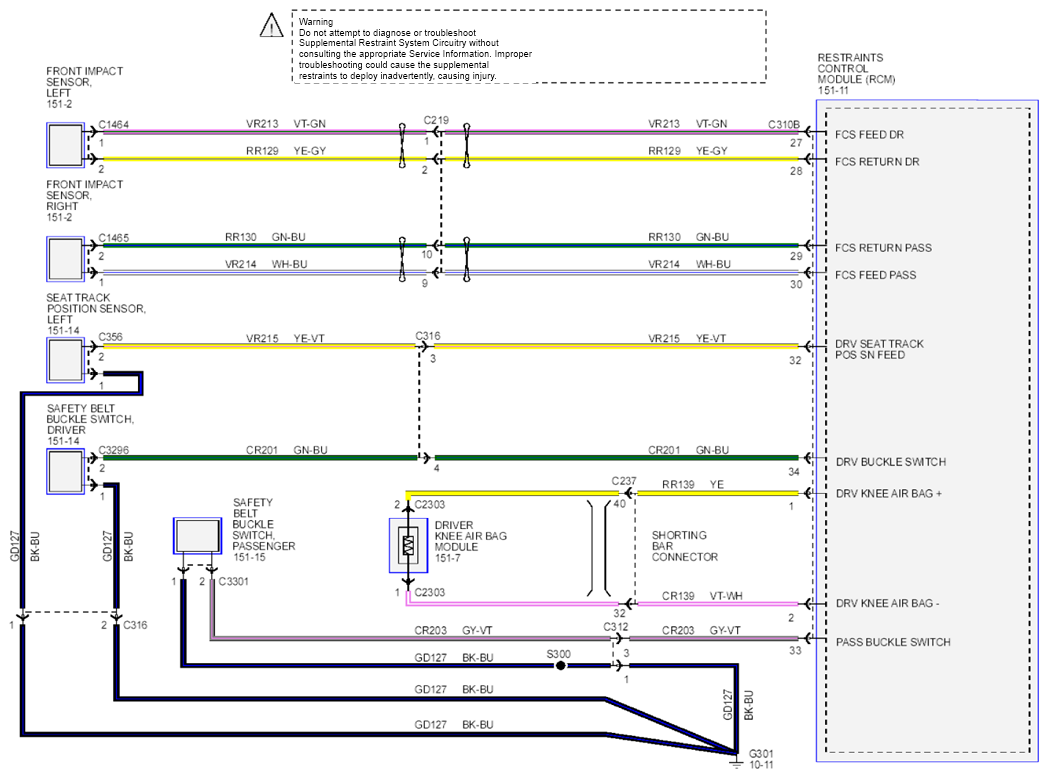

Fig 5: Supplemental Restraint System Wiring Diagram (5 Of 6)

Courtesy of FORD MOTOR CO.

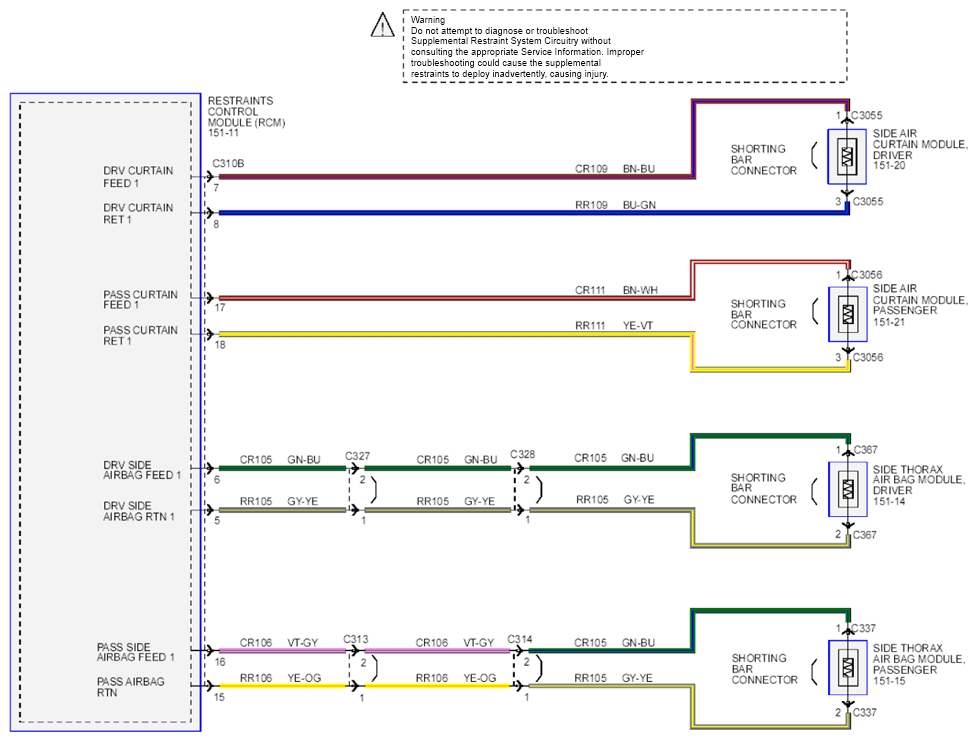

Fig 6: Supplemental Restraint System Wiring Diagram (6 Of 6)

Courtesy of FORD MOTOR CO.
