Remote Keyless Entry and Alarm: MKZ

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - MKZ (1 Of 3)
G07935800Courtesy of FORD MOTOR CO.
Fig 2: Remote Keyless Entry And Alarm Wiring Diagram - MKZ (2 Of 3)
G07935801Courtesy of FORD MOTOR CO.

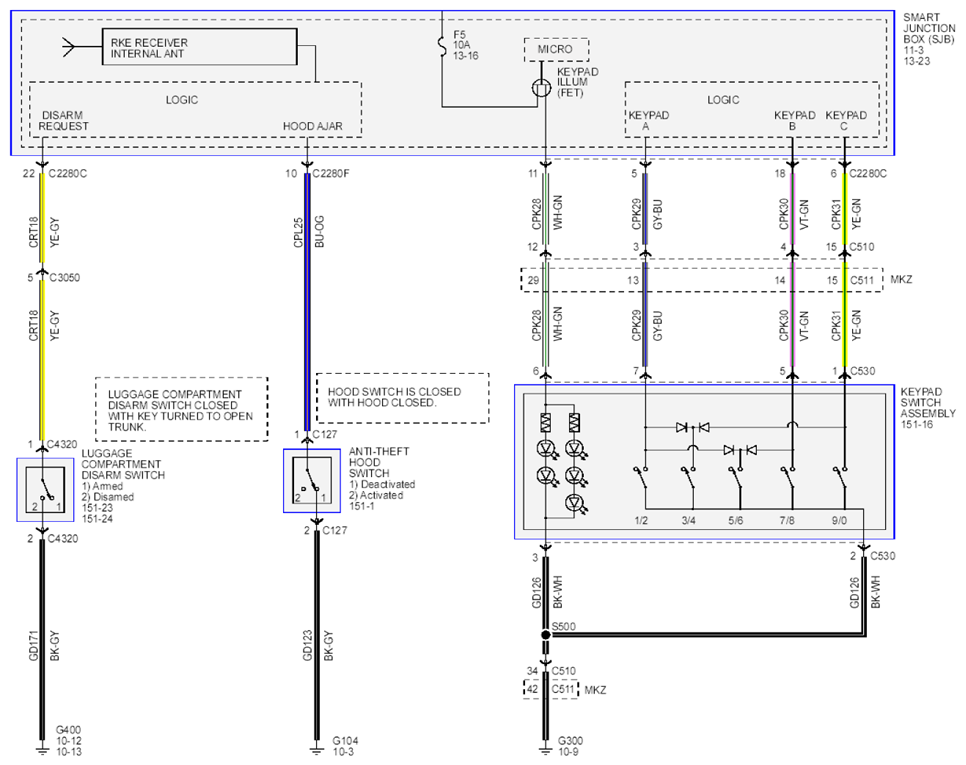

Fig 3: Remote Keyless Entry And Alarm Wiring Diagram - MKZ (3 Of 3)
G07935802Courtesy of FORD MOTOR CO.
