Remote Keyless Entry and Alarm: Fusion

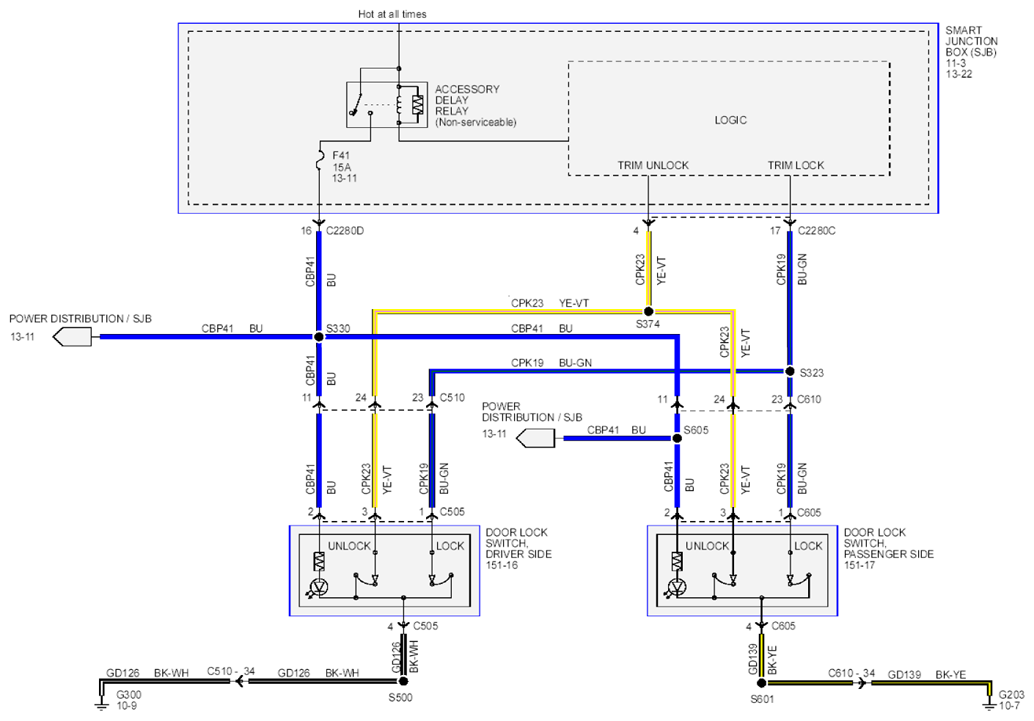

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - Fusion (1 Of 2)
G07935798Courtesy of FORD MOTOR CO.

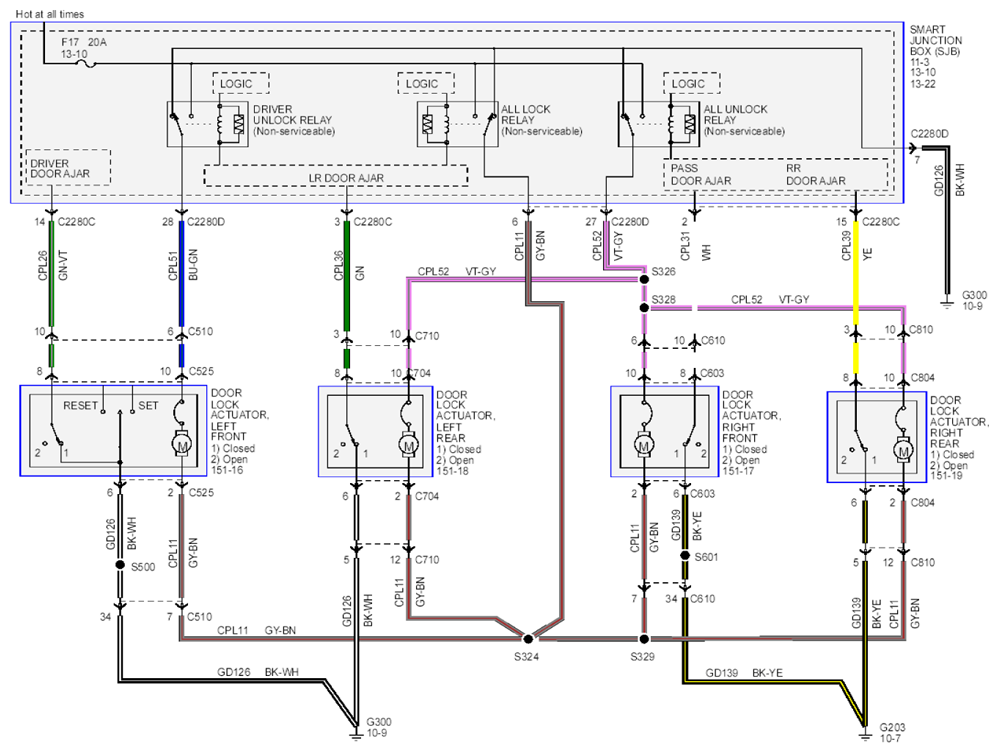

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram - Fusion (2 Of 2)
G07935799Courtesy of FORD MOTOR CO.
