4-Way Passenger Seat

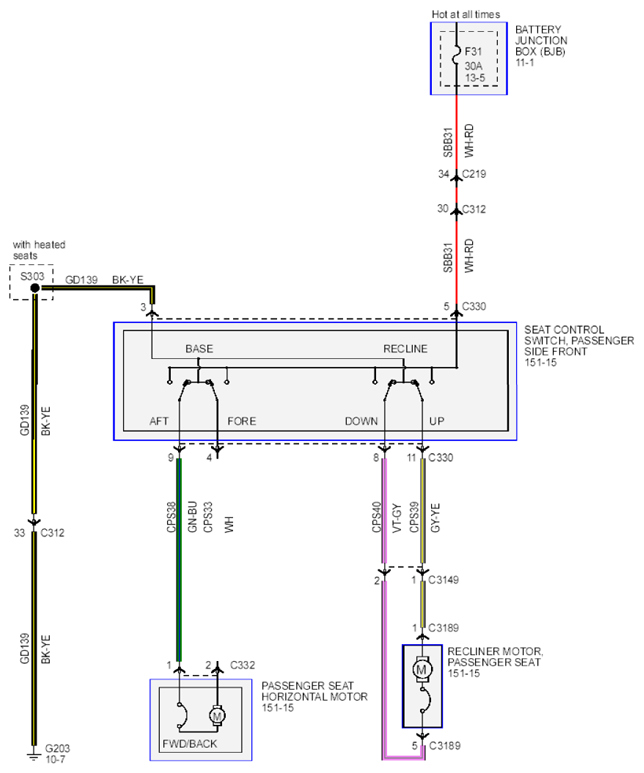

Fig 1: Power Seat Wiring Diagram - 4-Way Passenger Seat

G07935809

Courtesy of FORD MOTOR CO.
