Memory Mirrors

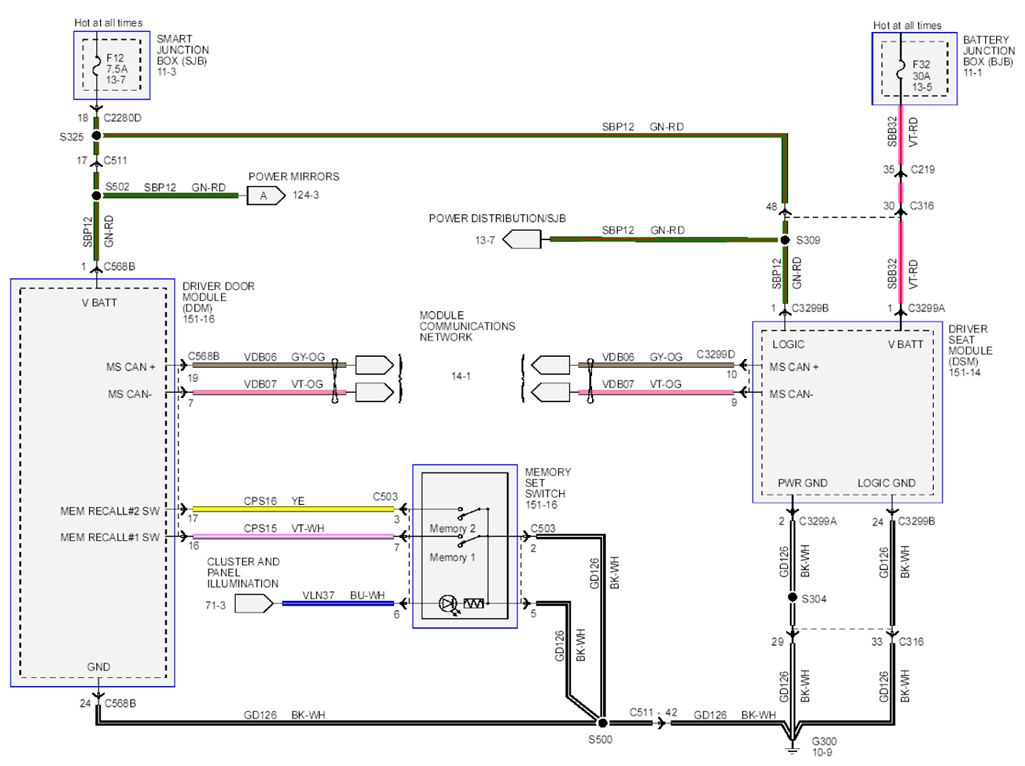

Fig 1: Memory Mirrors Wiring Diagram (1 Of 5)
G07935815Courtesy of FORD MOTOR CO.

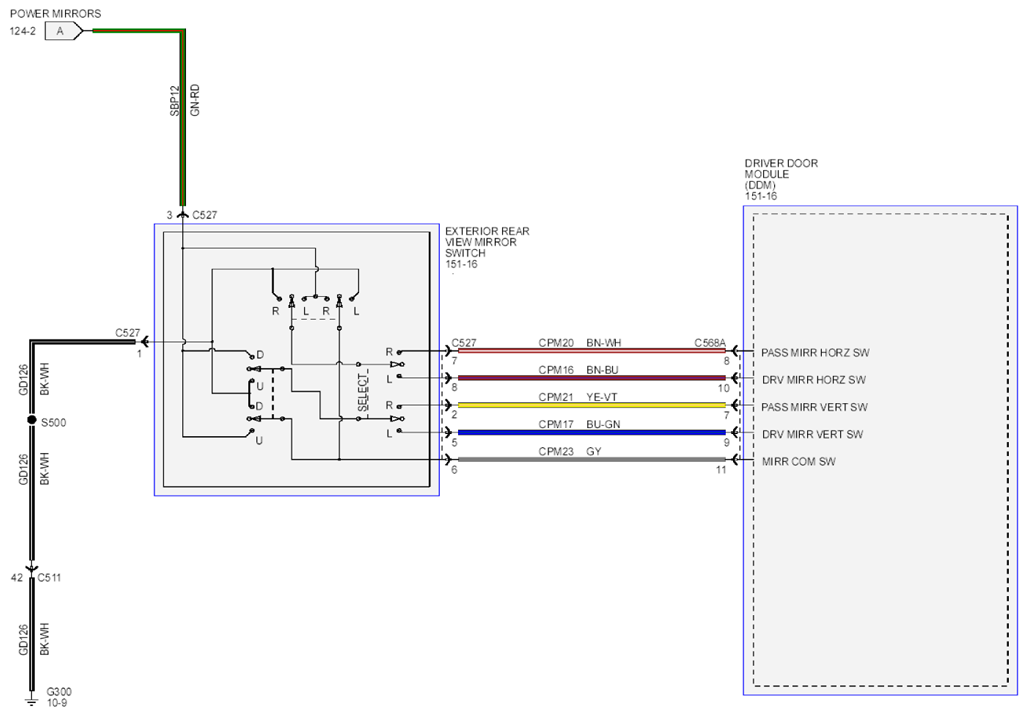

Fig 2: Memory Mirrors Wiring Diagram (2 Of 5)
G07935816Courtesy of FORD MOTOR CO.

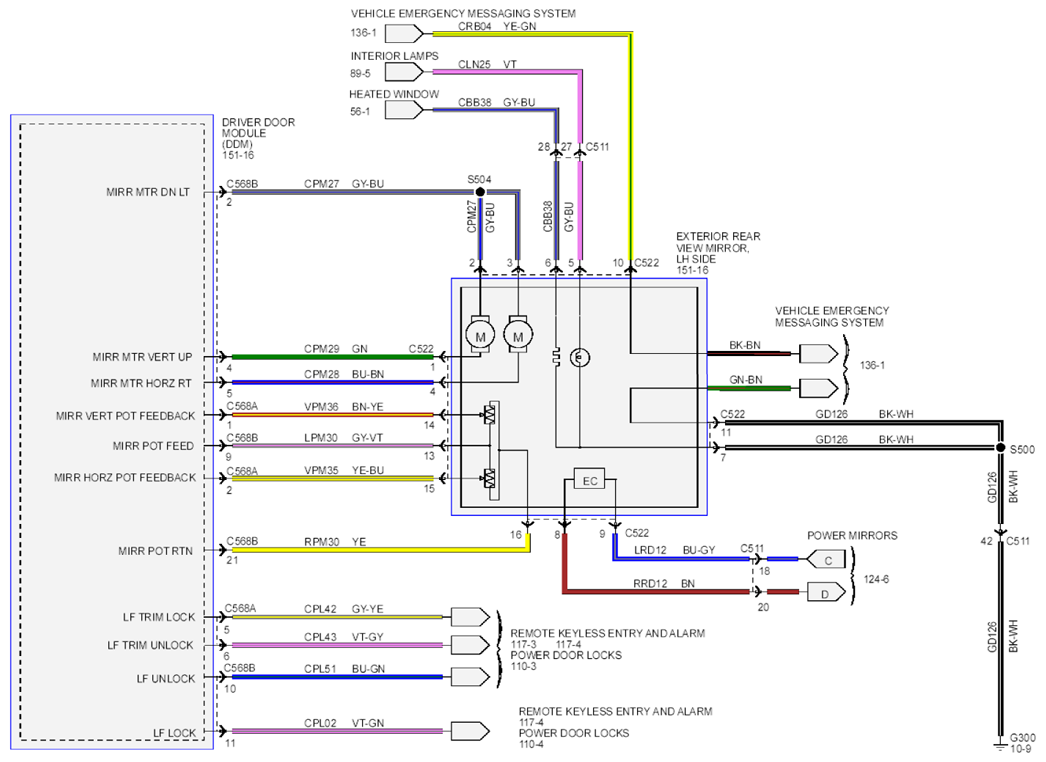

Fig 3: Memory Mirrors Wiring Diagram (3 Of 5)
G07935817Courtesy of FORD MOTOR CO.

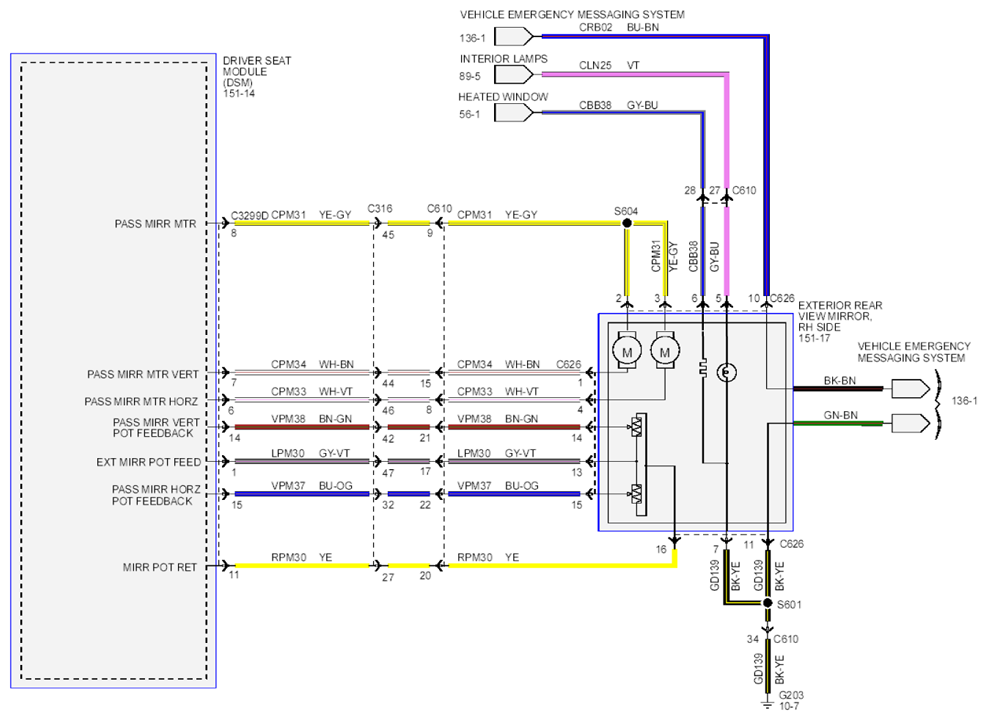

Fig 4: Memory Mirrors Wiring Diagram (4 Of 5)
G07935818Courtesy of FORD MOTOR CO.

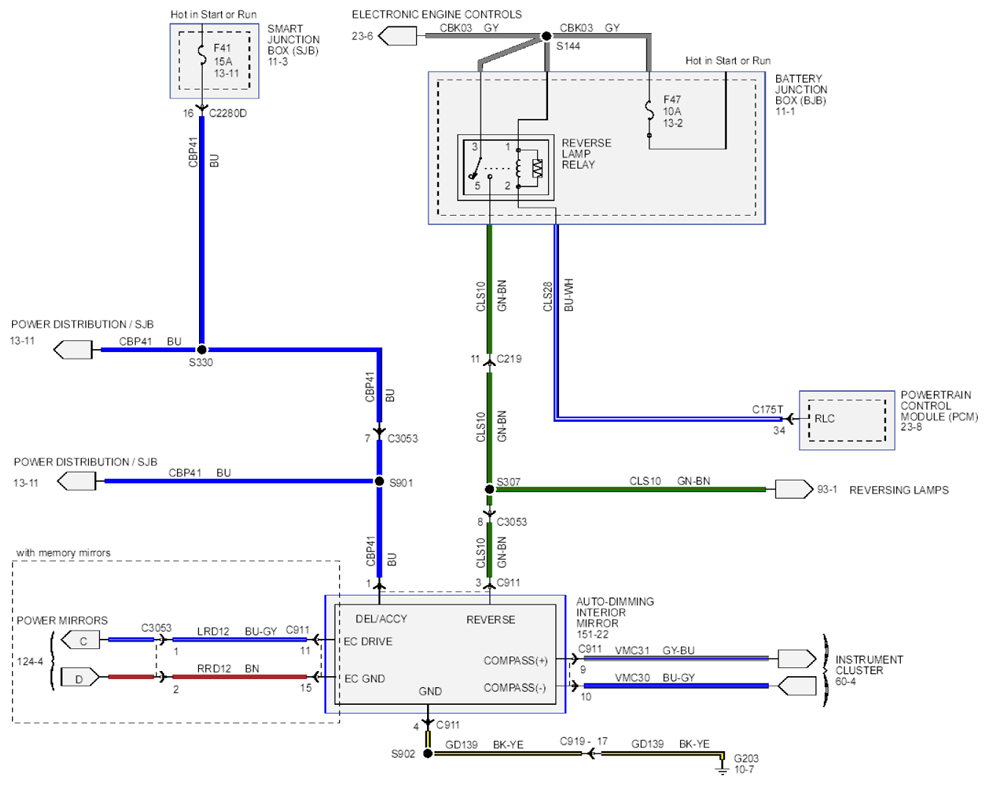

Fig 5: Memory Mirrors Wiring Diagram (5 Of 5)
G07935819Courtesy of FORD MOTOR CO.
