Power Door Locks: MKZ

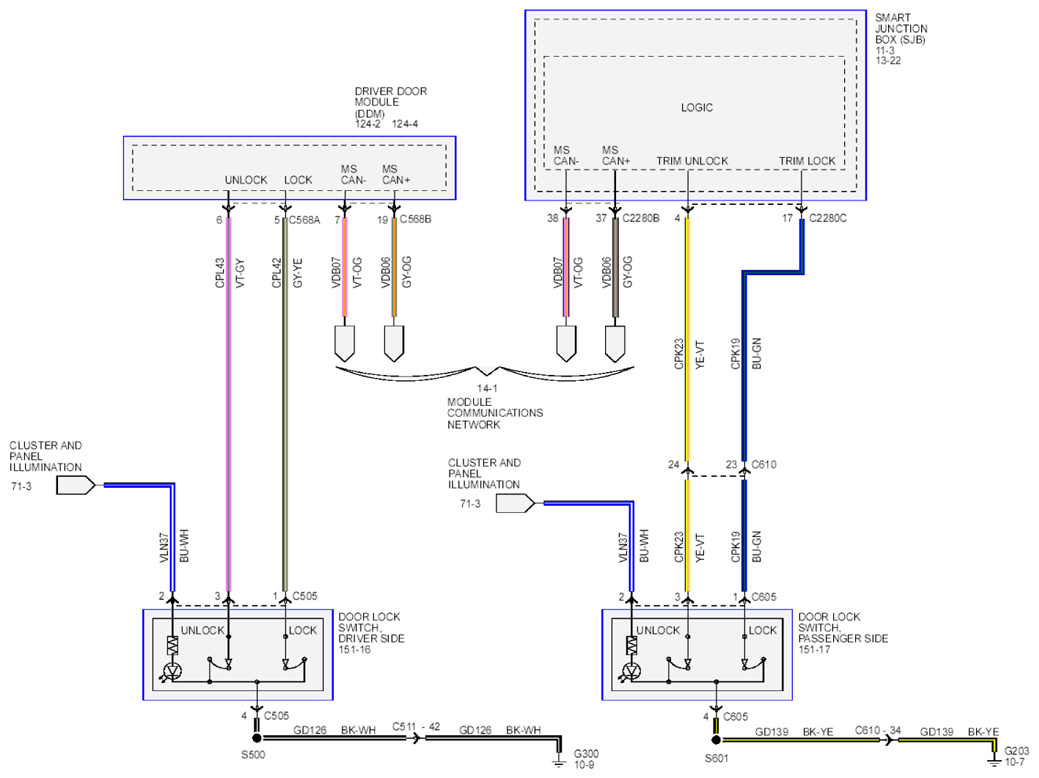

Fig 1: Power Door Locks Wiring Diagram - MKZ (1 Of 2)
Courtesy of FORD MOTOR CO.

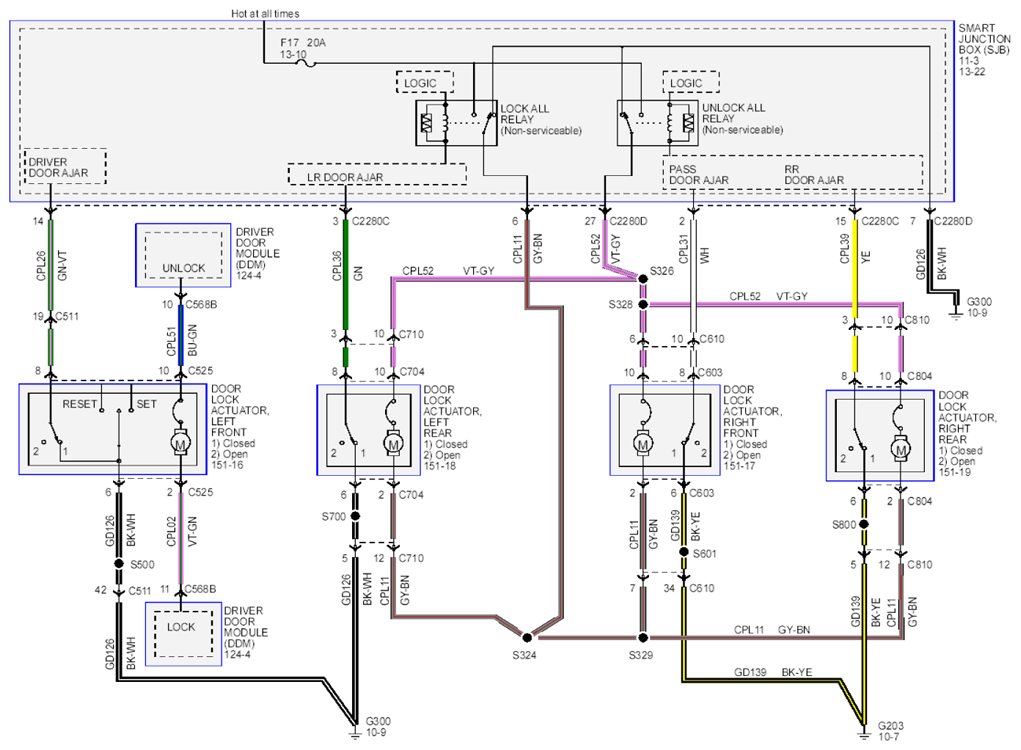

Fig 2: Power Door Locks Wiring Diagram - MKZ (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
