Power Door Locks: Fusion

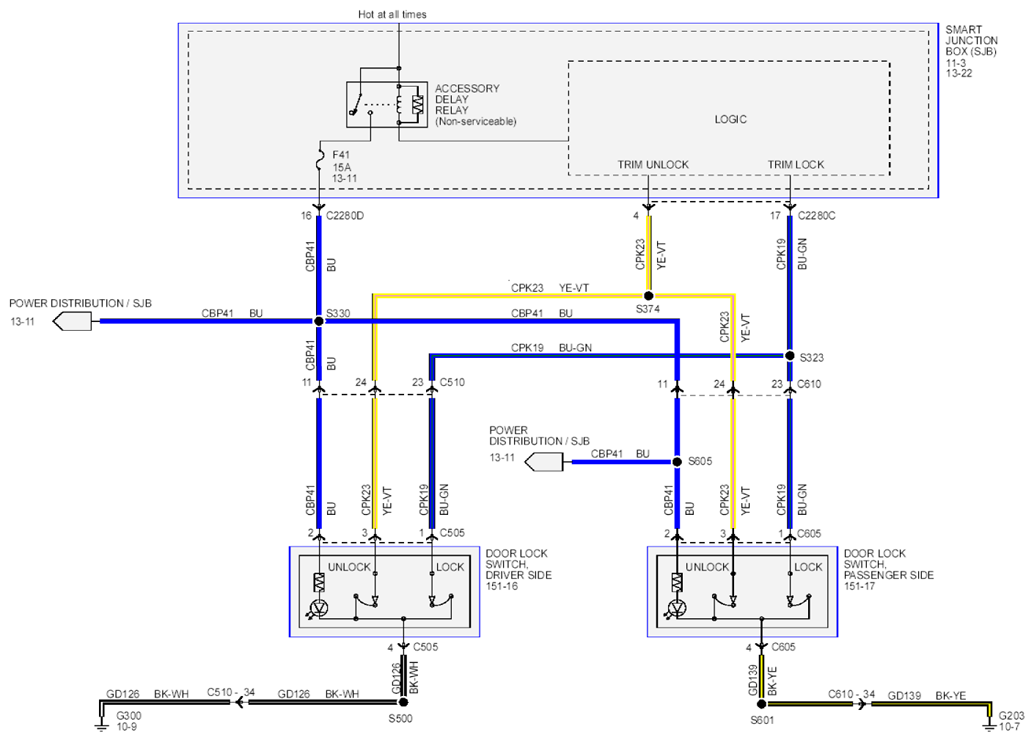

Fig 1: Power Door Locks Wiring Diagram - Fusion (1 Of 2)

G07935789

Courtesy of FORD MOTOR CO.

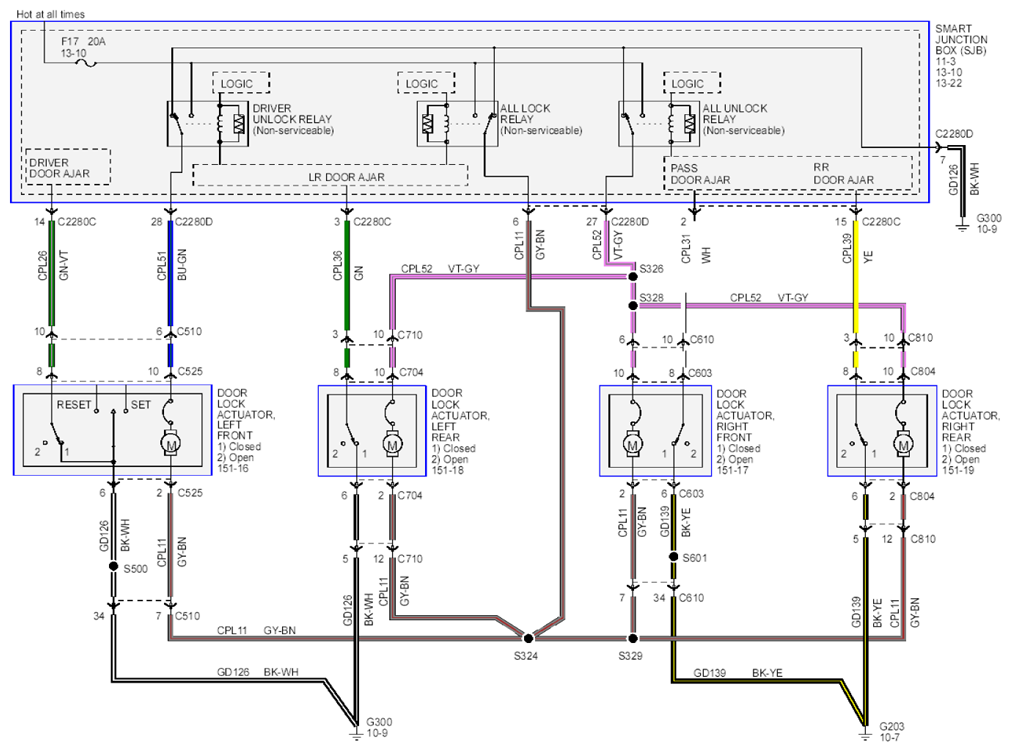

Fig 2: Power Door Locks Wiring Diagram - Fusion (2 Of 2)

G07935790

Courtesy of FORD MOTOR CO.
