Power Distribution_SJB
>>
F7, F8, F20, F26, F38, F39
F7, F8, F20, F26, F38, F39

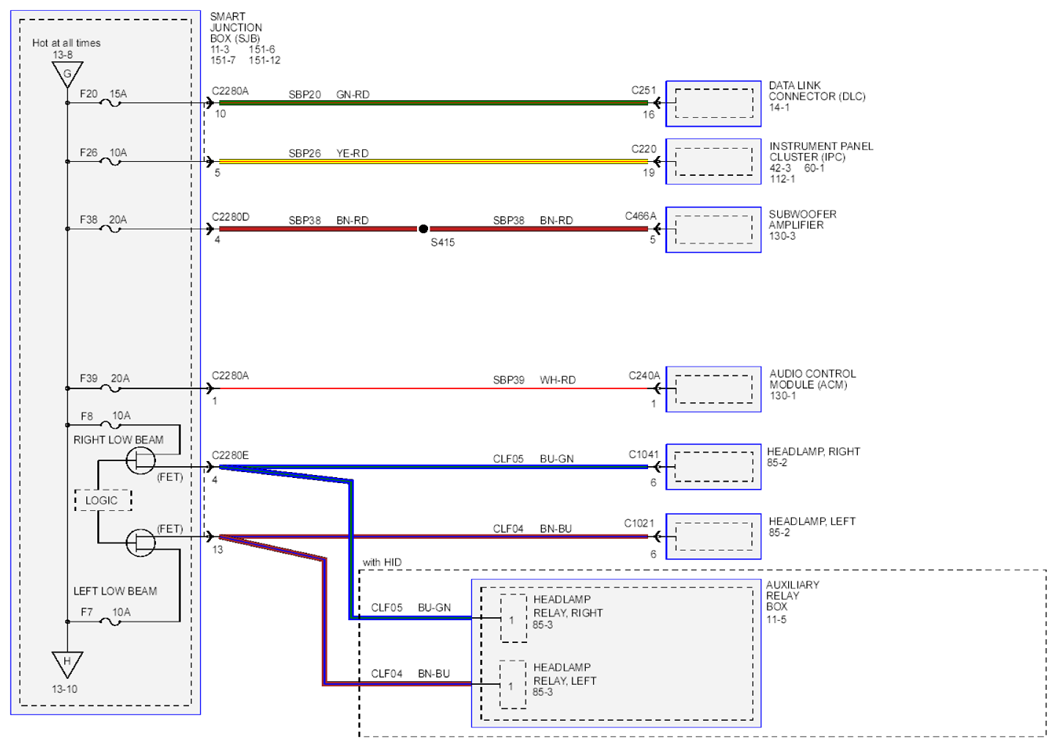

Fig 1: Power Distribution Circuit Diagram - F7, F8, F20, F26, F38, F39
Courtesy of FORD MOTOR CO.
