F3, F6, F7, F37, F39, F40, F47, F48, F49

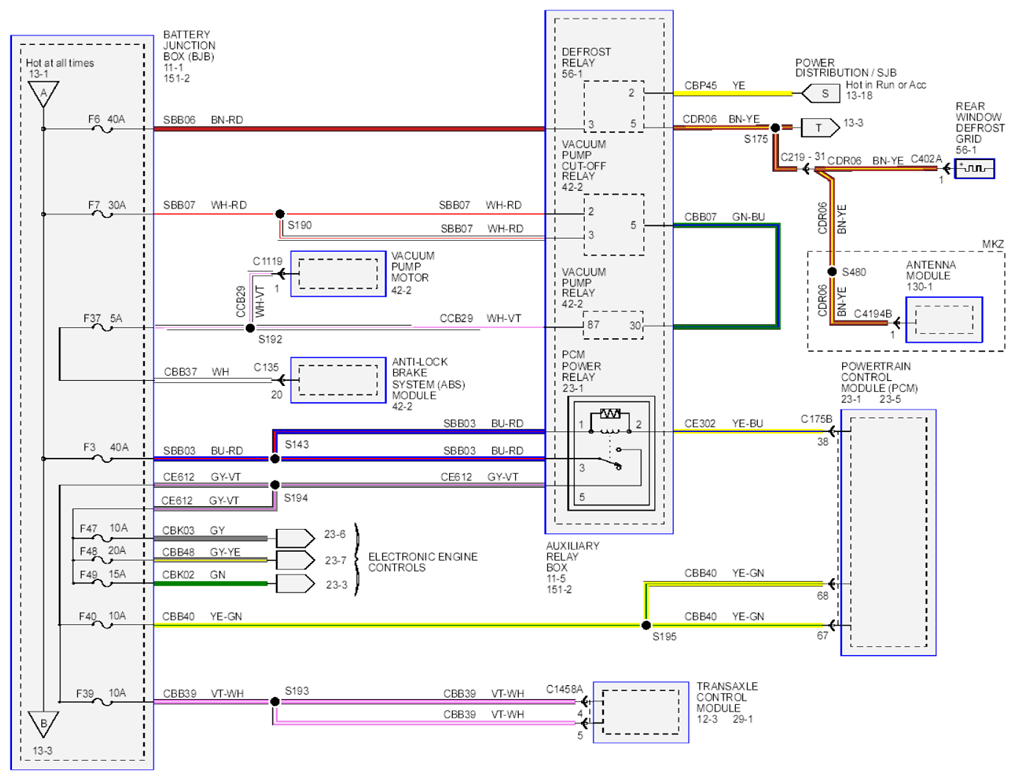

Fig 1: Power Distribution Circuit Diagram - F3, F6, F7, F37, F39, F40, F47, F48, F49

G07935688

Courtesy of FORD MOTOR CO.
