F3, F12, F13, F15

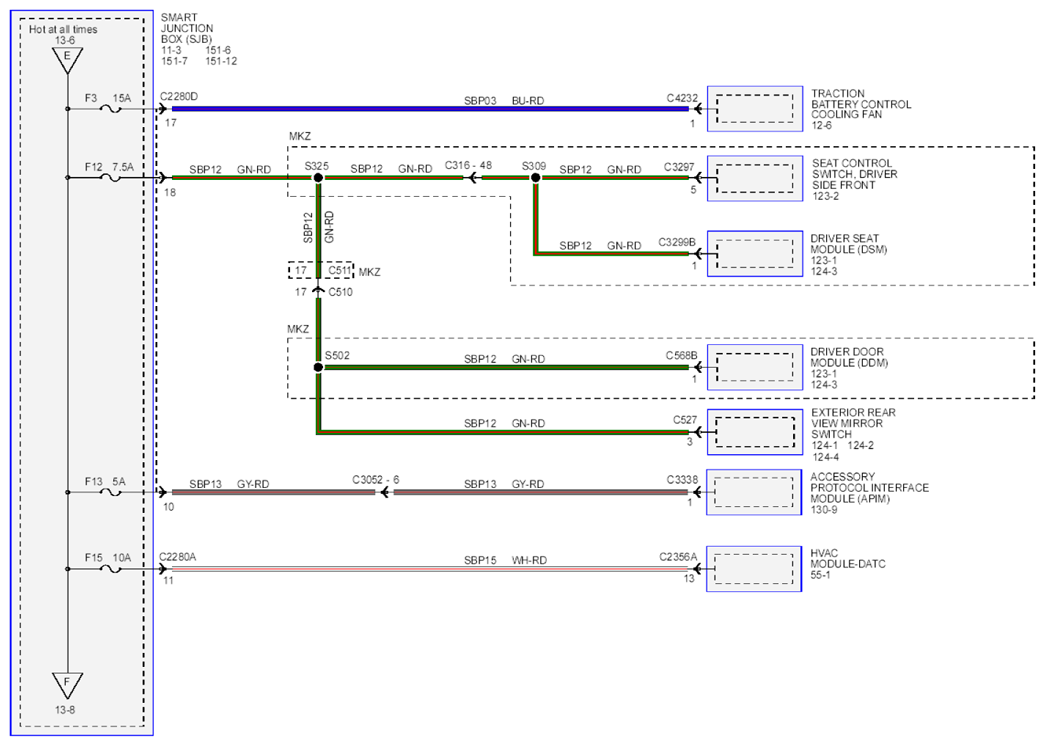

Fig 1: Power Distribution Circuit Diagram - F3, F12, F13, F15

G07935693

Courtesy of FORD MOTOR CO.
