F23, F26, F27, F28, F29, F30, F45, F46

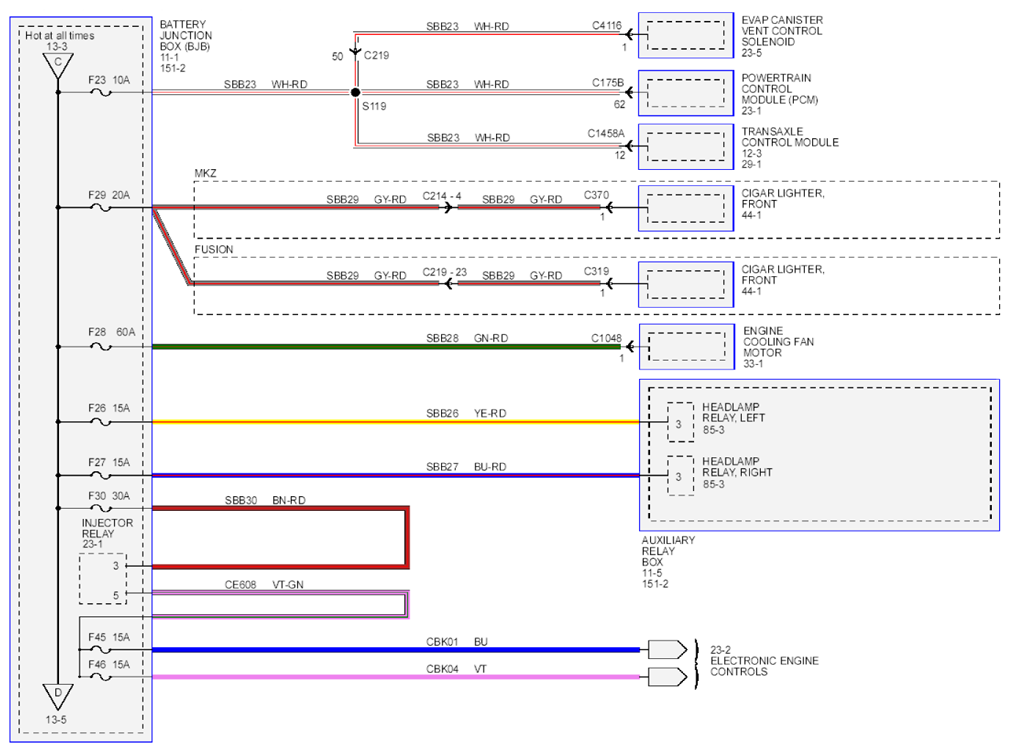

Fig 1: Power Distribution Circuit Diagram - F23, F26, F27, F28, F29, F30, F45, F46

G07935690

Courtesy of FORD MOTOR CO.
