Power Distribution_SJB
>>
F20, F21, F31, F32, F33, F35
F20, F21, F31, F32, F33, F35

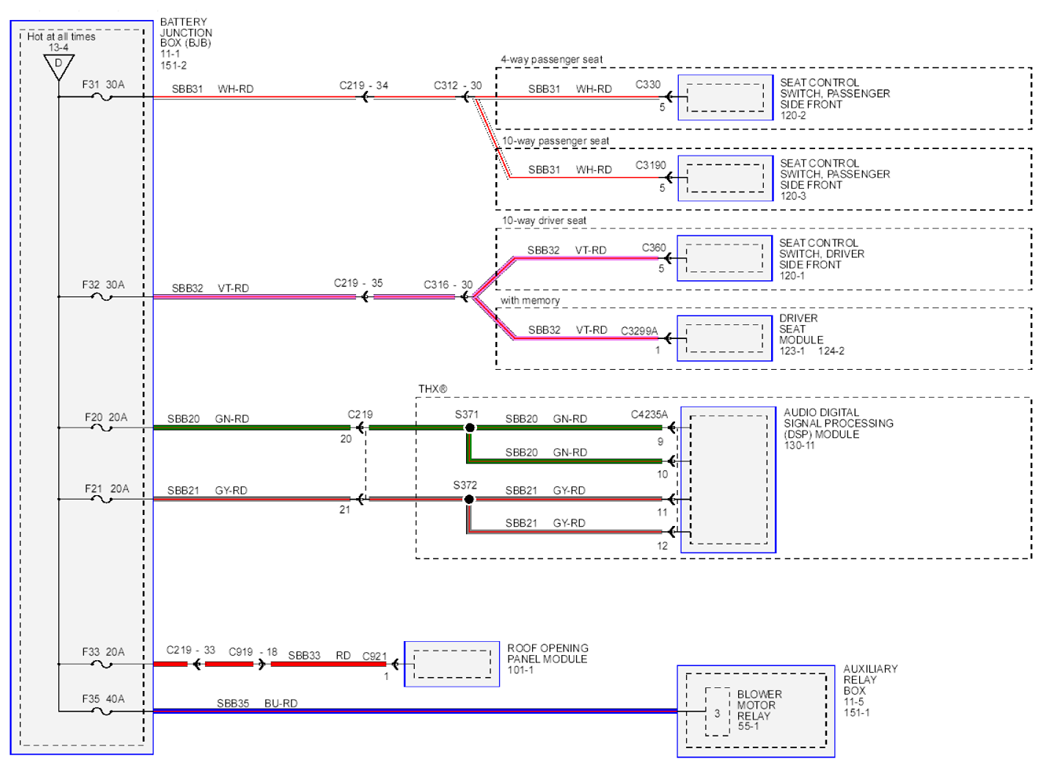

Fig 1: Power Distribution Circuit Diagram - F20, F21, F31, F32, F33, F35
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
