F1, F2, F8, F9, F10, F12, F17, F18, Midi

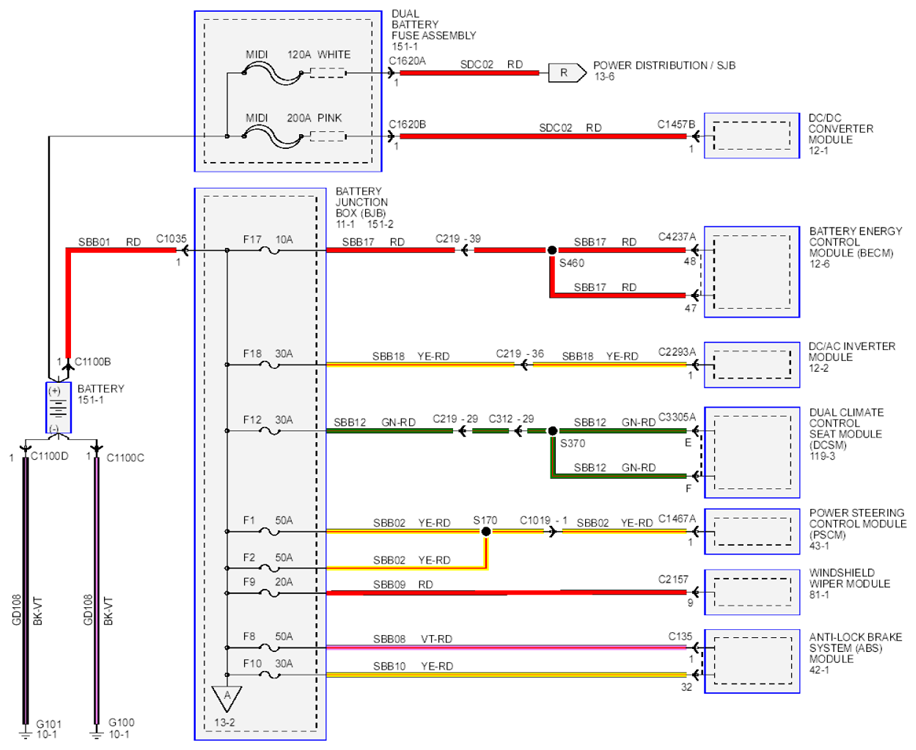

Fig 1: Power Distribution Circuit Diagram - F1, F2, F8, F9, F10, F12, F17, F18, MIDI

G07935687

Courtesy of FORD MOTOR CO.
