Parking_Rear and License Lamps: MKZ

Fig 1: Parking Rear And License Lamps Wiring Diagram - MKZ (1 Of 2)
G07935779Courtesy of FORD MOTOR CO.

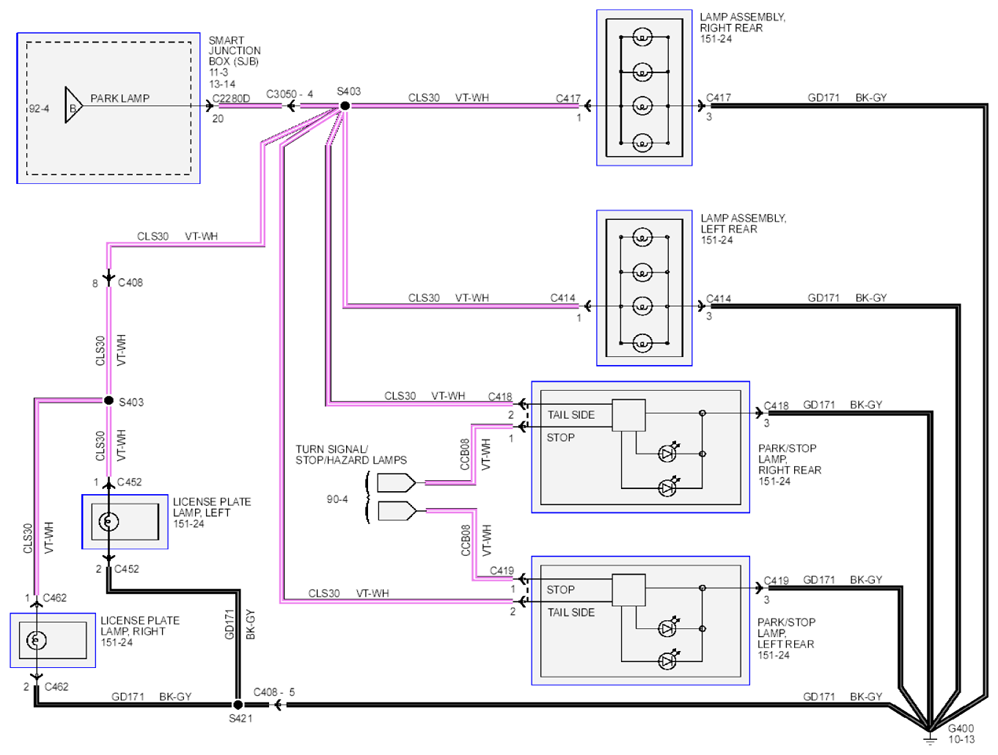

Fig 2: Parking Rear And License Lamps Wiring Diagram - MKZ (2 Of 2)
G07935780Courtesy of FORD MOTOR CO.
