Parking_Rear and License Lamps: Fusion

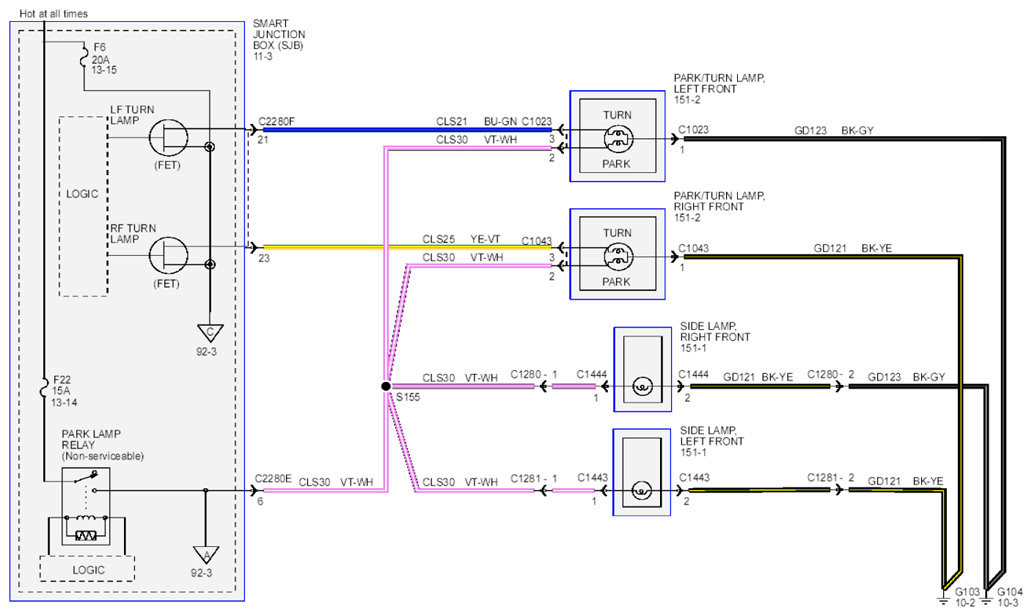

Fig 1: Parking Rear And License Lamps Wiring Diagram - Fusion (1 Of 2)
G07935777Courtesy of FORD MOTOR CO.

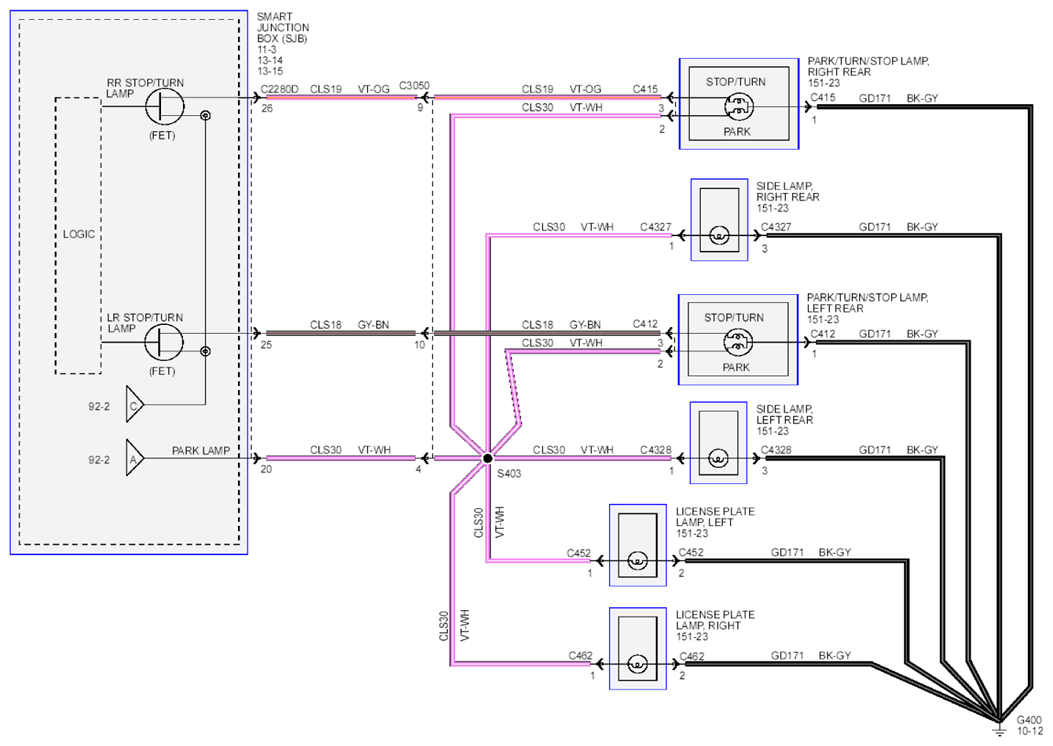

Fig 2: Parking Rear And License Lamps Wiring Diagram - Fusion (2 Of 2)
G07935778Courtesy of FORD MOTOR CO.
