Parking Aid
Parking Aid

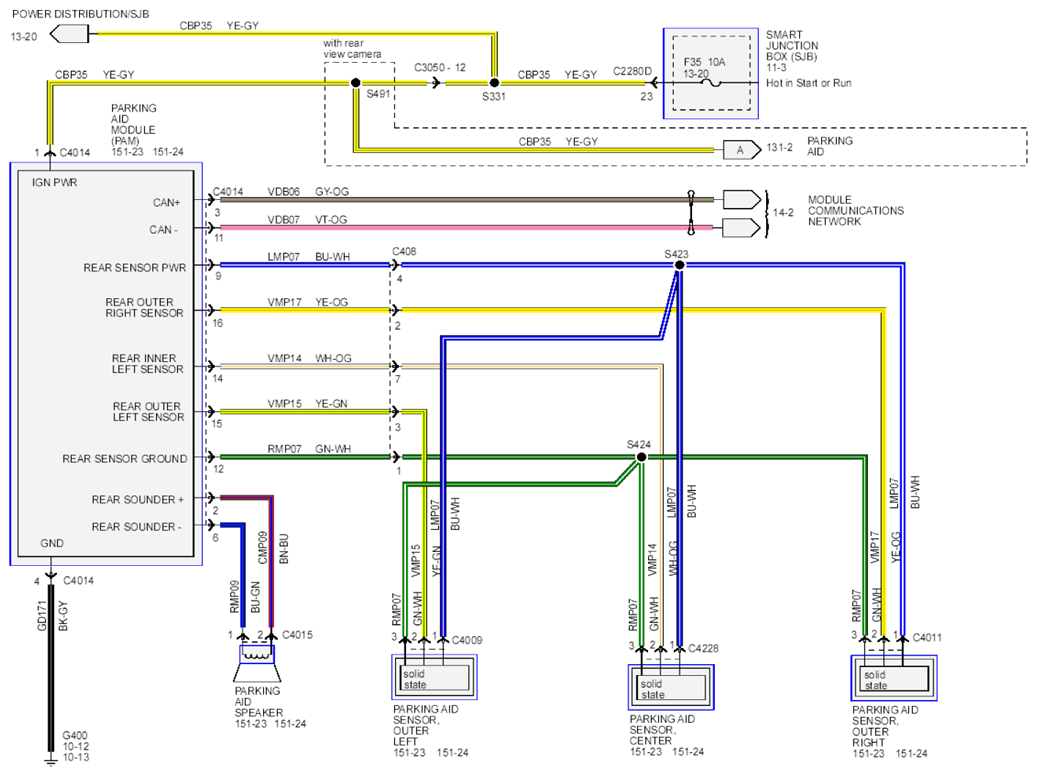

Fig 1: Parking Aid Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Parking Aid Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
