MKZ
Interior Lamps: MKZ

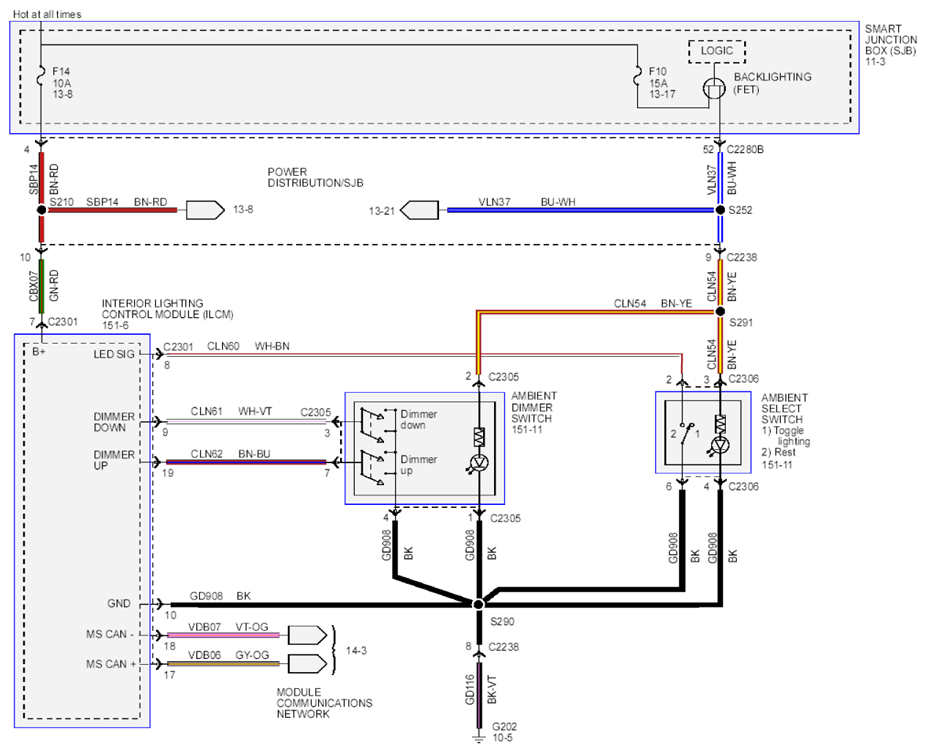

Fig 1: Interior Lamps Wiring Diagram - MKZ (1 Of 7)
Courtesy of FORD MOTOR CO.

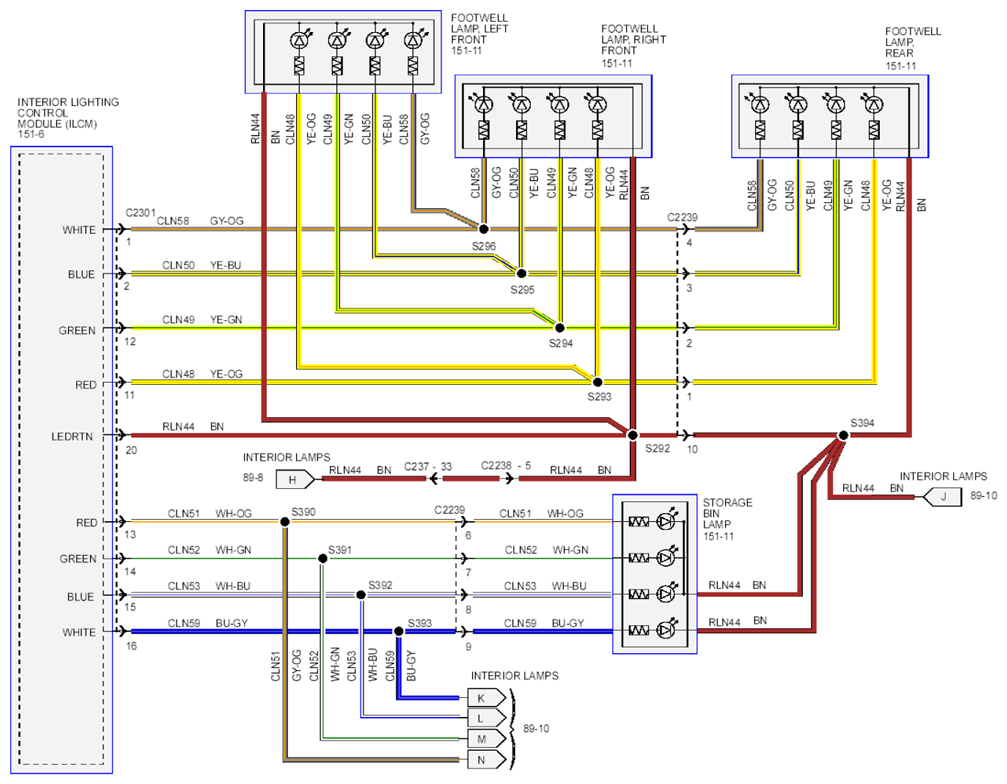

Fig 2: Interior Lamps Wiring Diagram - MKZ (2 Of 7)
Courtesy of FORD MOTOR CO.

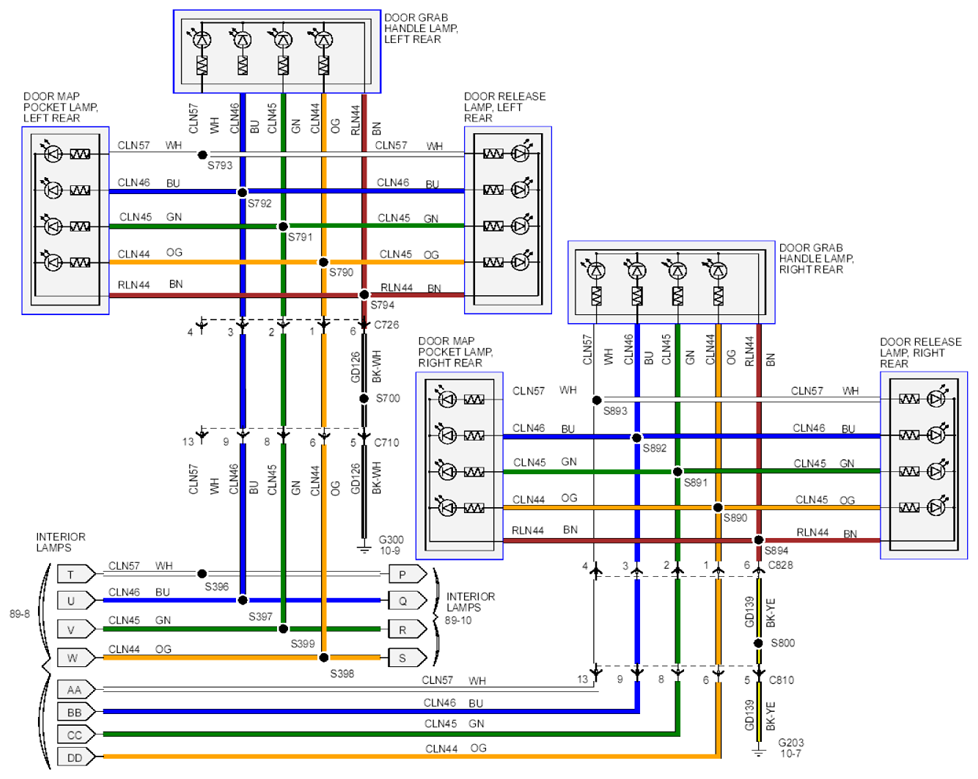

Fig 3: Interior Lamps Wiring Diagram - MKZ (3 Of 7)
Courtesy of FORD MOTOR CO.

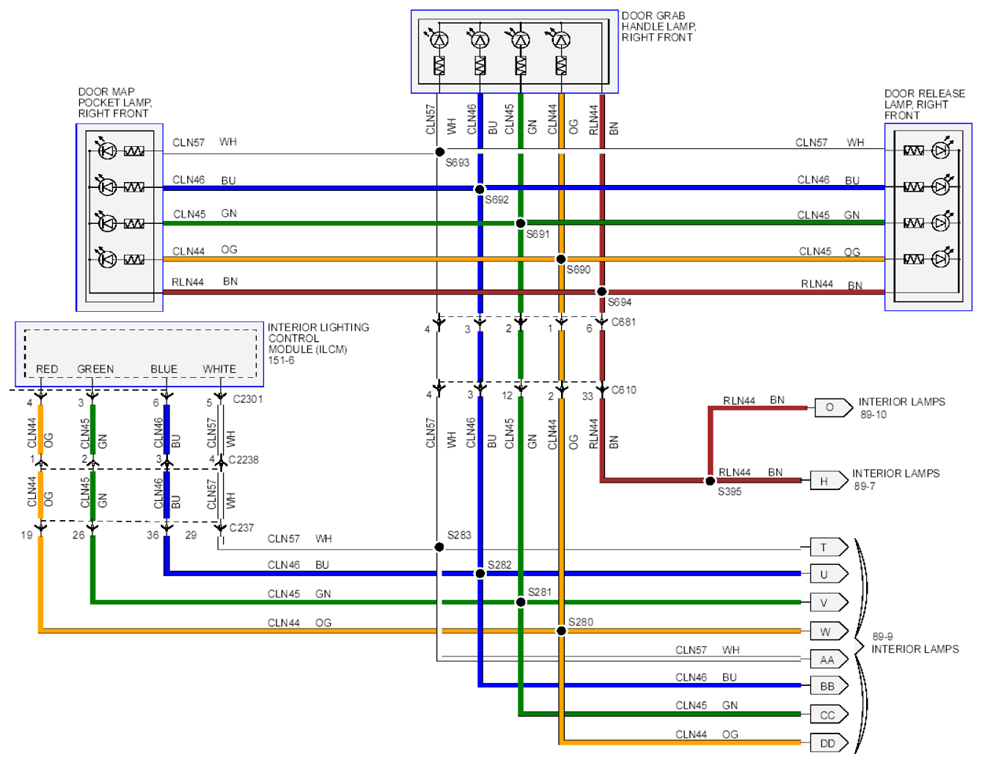

Fig 4: Interior Lamps Wiring Diagram - MKZ (4 Of 7)
Courtesy of FORD MOTOR CO.

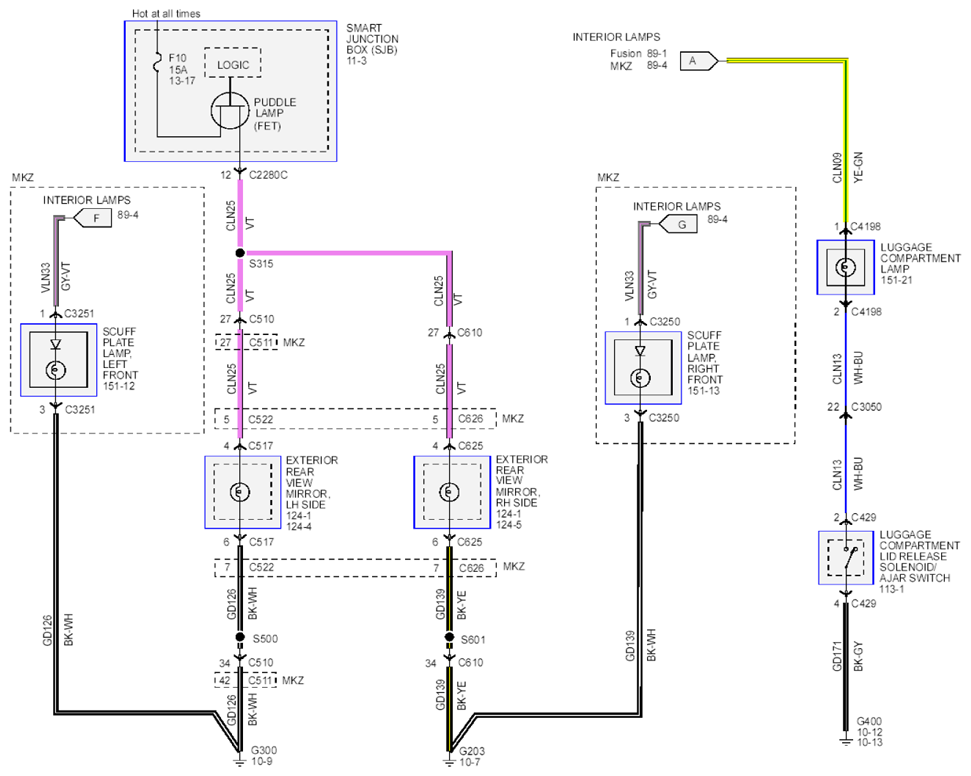

Fig 5: Interior Lamps Wiring Diagram - MKZ (5 Of 7)
Courtesy of FORD MOTOR CO.

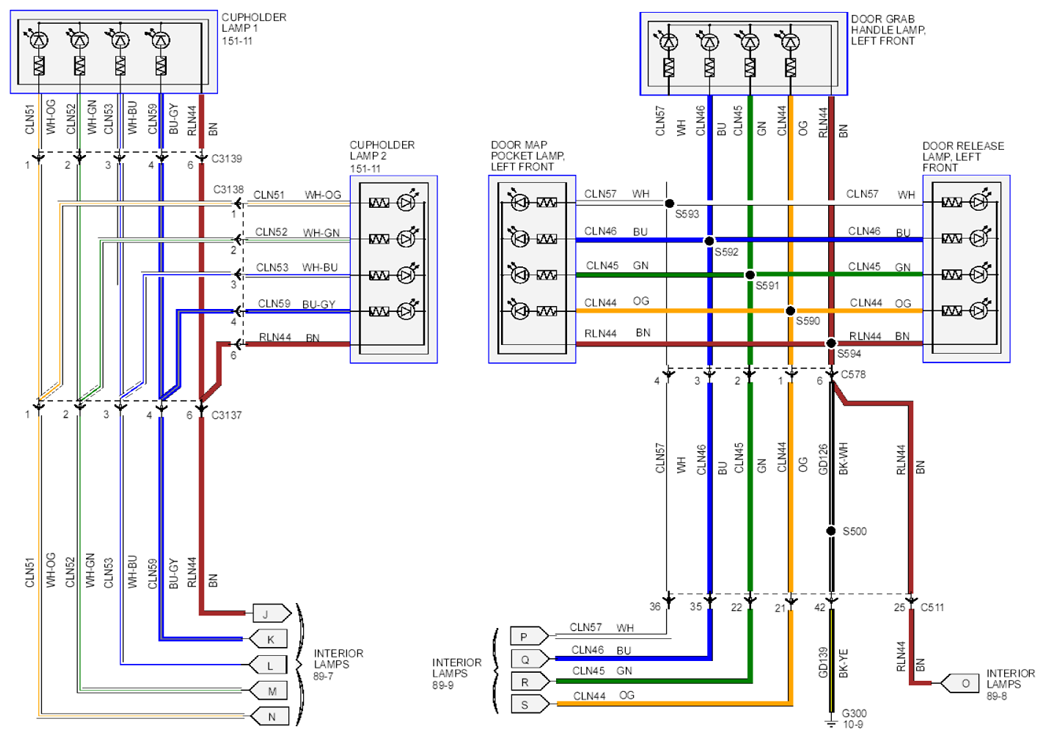

Fig 6: Interior Lamps Wiring Diagram - MKZ (6 Of 7)
Courtesy of FORD MOTOR CO.

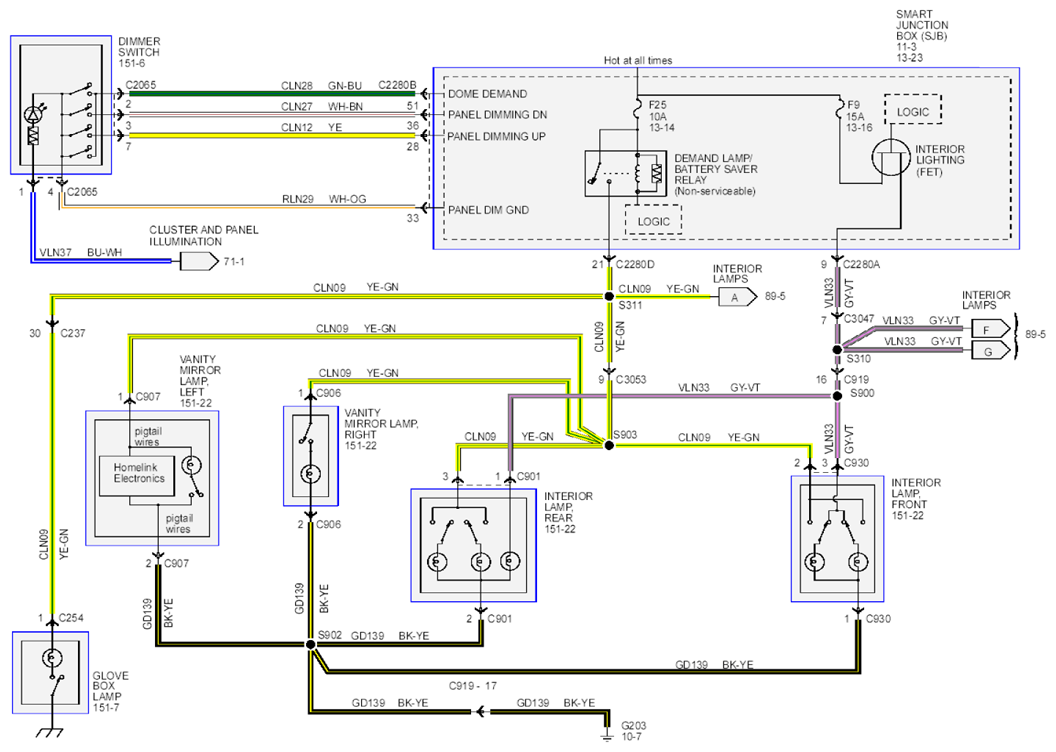

Fig 7: Interior Lamps Wiring Diagram - MKZ (7 Of 7)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
