Interior Lamps: Fusion

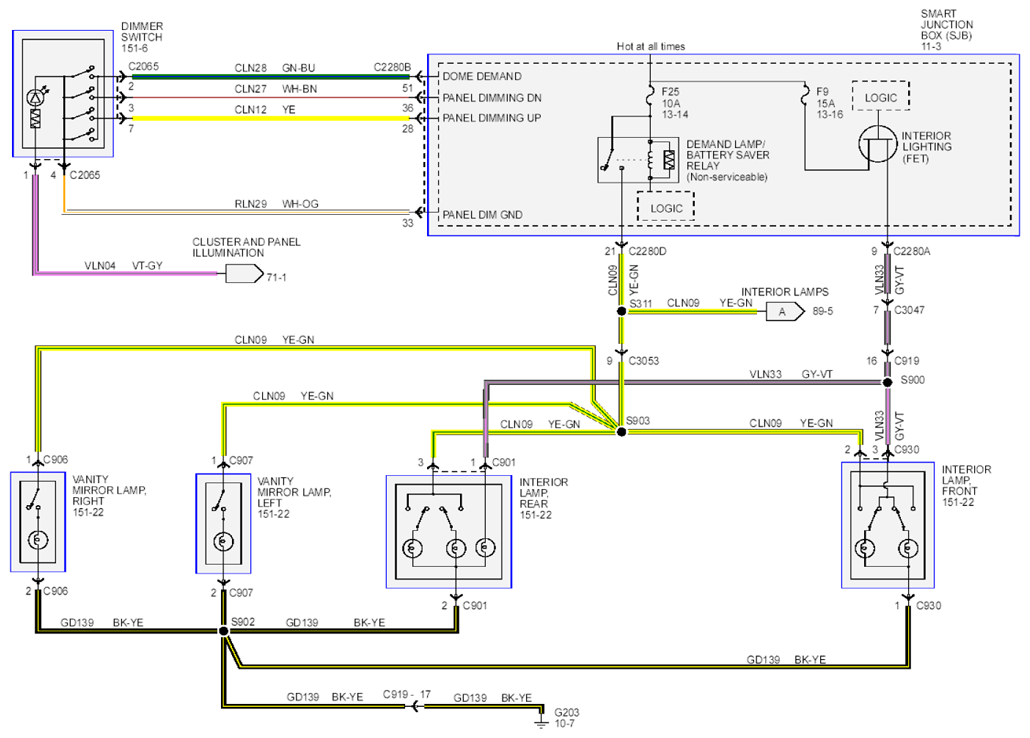

Fig 1: Interior Lamps Wiring Diagram - Fusion (1 Of 3)
G07935761Courtesy of FORD MOTOR CO.

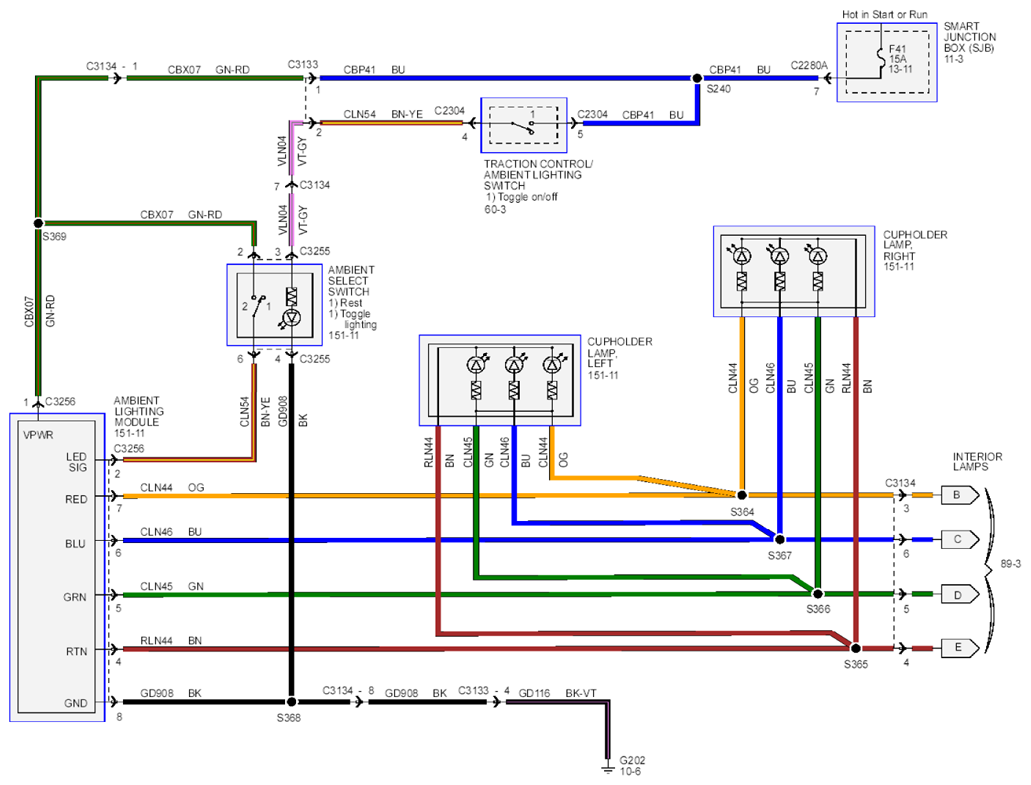

Fig 2: Interior Lamps Wiring Diagram - Fusion (2 Of 3)
G07935762Courtesy of FORD MOTOR CO.

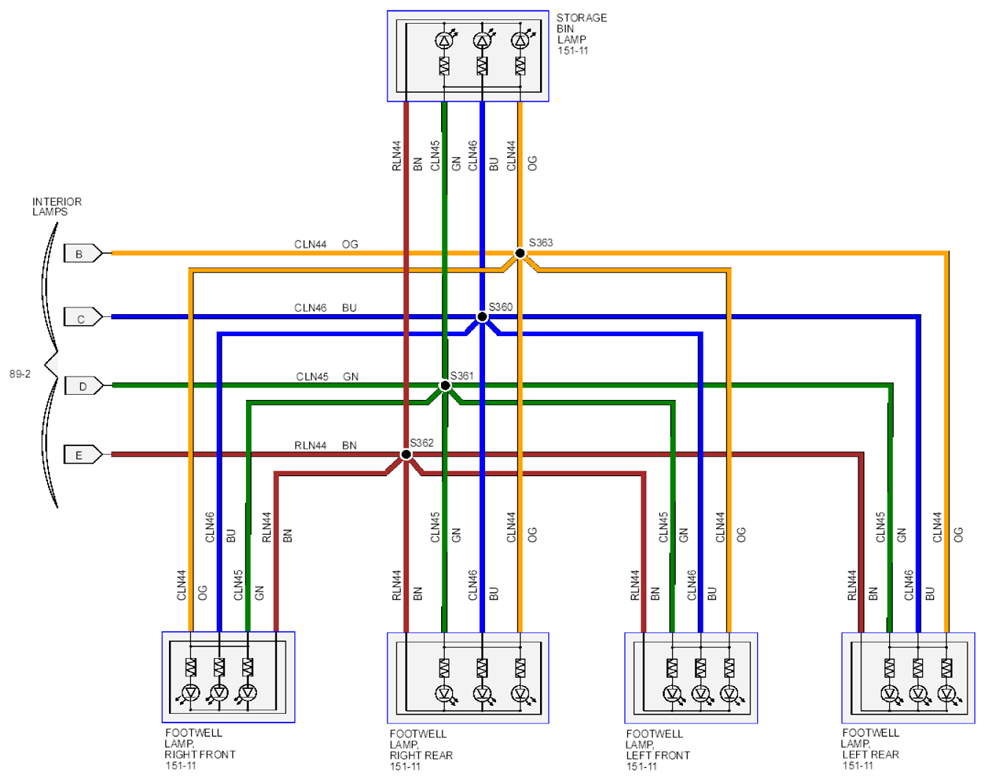

Fig 3: Interior Lamps Wiring Diagram - Fusion (3 Of 3)
G07935763Courtesy of FORD MOTOR CO.
