OEM Wiring Diagrams (Hybrid): Headlamps_Autolamps: Notes

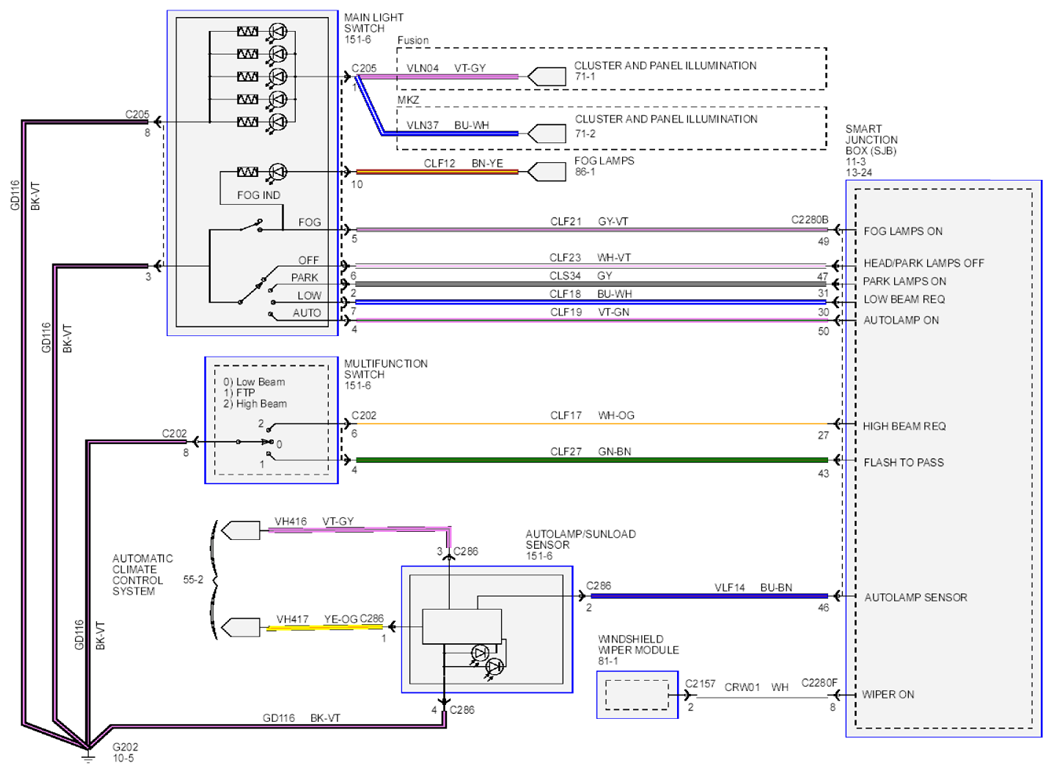

Fig 1: Headlamps & Autolamps Wiring Diagram

G07935757

Courtesy of FORD MOTOR CO.
