Cluster and Panel Illumination
Cluster and Panel Illumination

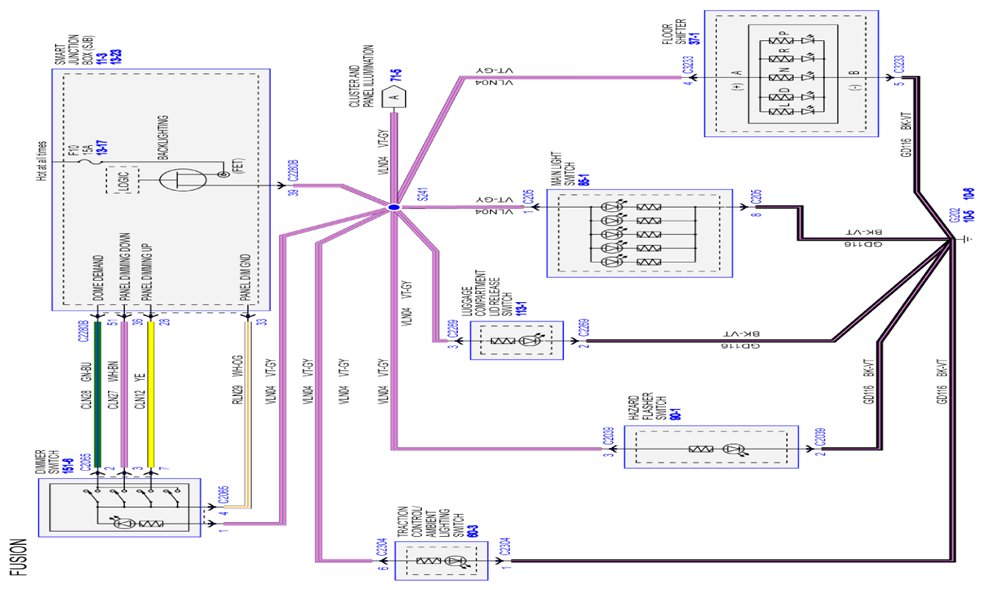

Fig 1: Cluster And Panel Illumination Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
