Heated Seats

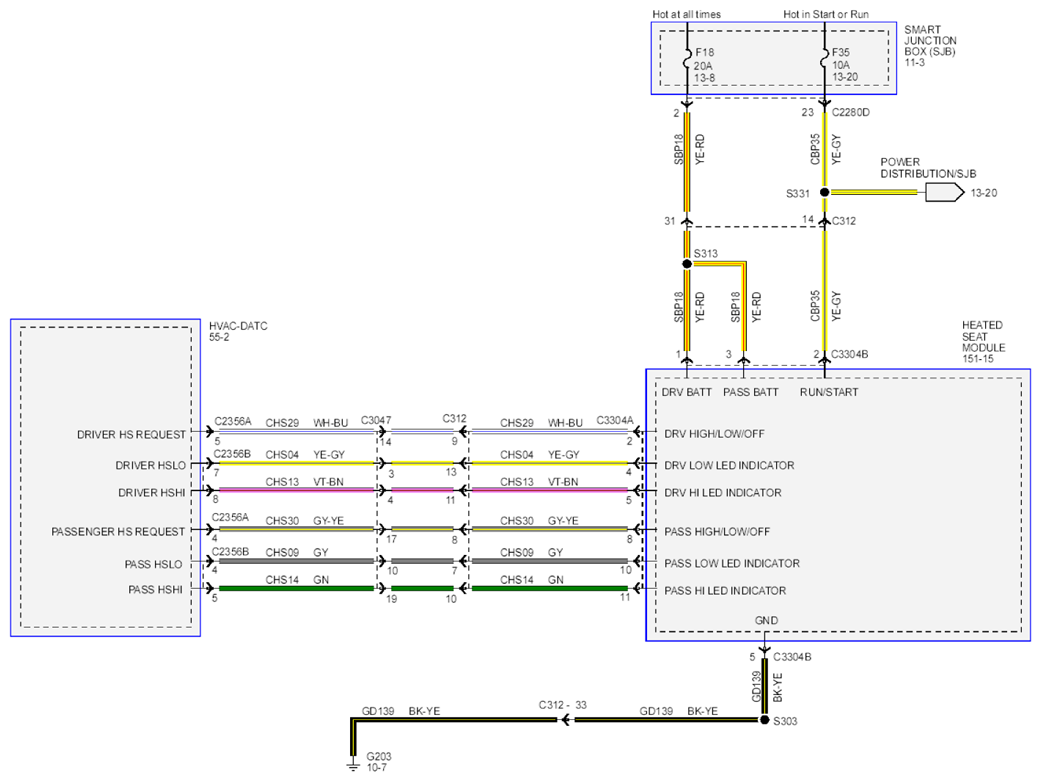

Fig 1: Heated Seats Wiring Diagram (1 Of 2)

G07935803

Courtesy of FORD MOTOR CO.

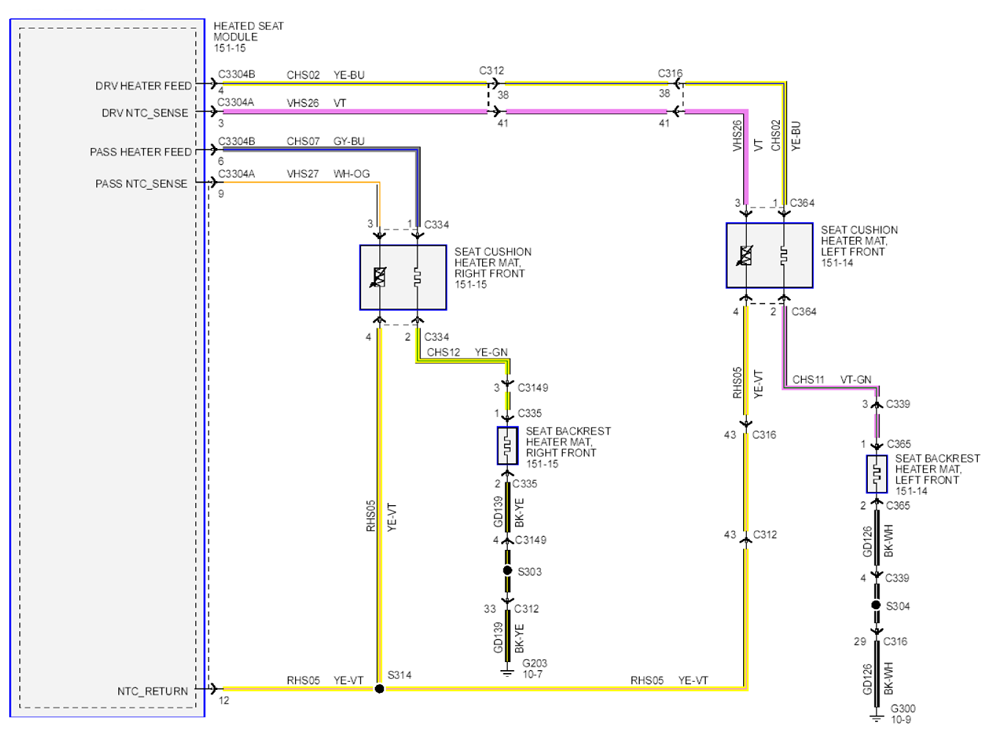

Fig 2: Heated Seats Wiring Diagram (2 Of 2)

G07935804

Courtesy of FORD MOTOR CO.
